Home ProductsOre Color Sorter

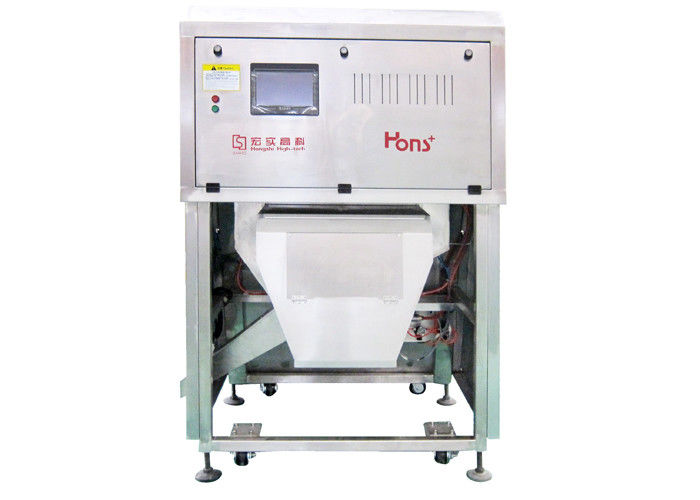

Smart Recycling Ore Color Sorter For Porcelain Stone Mineral Stone Dolomit

Smart Recycling Ore Color Sorter For Porcelain Stone Mineral Stone Dolomit

Smart Recycling Ore Color Sorter For Porcelain Stone Mineral Stone Dolomit

Product Details:

Place of Origin: Hefei, Anhui, China
Brand Name: Hons+
Certification: CE、SGS、ISO9001
Model Number: HL600

Payment & Shipping Terms:

Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wood Packaging 3650*1430*2110mm
Delivery Time: 10-15 Work Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200Set/Sets Per Month
Contact Now
Detailed Product Description
Optical Part: CCD Cameras & LED Lamps Channels: 600
Application: Sorting Sorting Accuracy: ≥99.95%
Weight(Kg): 1000 Voltage(V): AC220V/50Hz
Power(Kw): ≤1.4 Capacity(T/h): 2~5
Dimension(L*W*H Mm):: 3650*1430*2110 Color: White&Green
Product Name: Ore Color Sorter

Smart Recycling Ore Color Sorter For Porcelain Stone Mineral Stone Dolomit



Product Description
1. Sorting range is from 3cm to 20 meshes of mineral granula.
2. Our machine is adaptable to the hash working environment of heavy dust, high pollution and corrosin, the application scope is widely and the service life is longer.
3. The crawler type flexible belt ensures the higher sorting accuracy and the lower carryover ratio.
4. The unique modular design and self maintenance function (automatic dust removal and spary) ensure the long service life.

Features:

1. High-speed & -resolution Ratio CCD Camera: high speed line scan with 54 million pixels CCD sensor.
2. Nikon CCD Camera: high quality imaging, high resolusion ratio, excellent color reduction without distortion.
3. Pro-face Touch Screen: High feedback speed, sensitivity, reliability and easy operation.
4. High Frequency Solenoid Valve: special for sorting, high frequency, low power consumption, high sorting accuracy.
5. High Luminance LED: low power consumption, long service life, high reliability.
6. System: special for sorting any defect and foreign material.


Technical Parameter

Model HL300 HL600 HL1200 HL1200- SL42
Capacity(t/h) 1~3 2~5 4~10 6~12 8~15

Voltage(V)

AC220V
50/60Hz

AC220V
50/60Hz

AC220V
50/60Hz

AC220V
50/60Hz

AC220V
50/60Hz

Power(KW) ﹤0.8 ﹤1.4 ﹤2.4 ﹤3.0 ﹤5.5

Air pressure(Mpa)

0.6-0.8 0.6-0.8 0.6-0.8 0.6-0.8 0.6-0.8

Dimension(mm)

3650*
1130*2110

3650*
1430*2110

3650*
1430*2110

3800*
1880*1650

3800*
2000*1650

Weight (Kg) 530 1000 1500 1500 2000
























Sorting example



Smart Recycling Ore Color Sorter For Porcelain Stone Mineral Stone Dolomit

Quartz Raw material



Smart Recycling Ore Color Sorter For Porcelain Stone Mineral Stone Dolomit

Quartz Accept



Smart Recycling Ore Color Sorter For Porcelain Stone Mineral Stone Dolomit

 Quartz Rejection


Packing & Delivery
Size: 3650*1430*2110mmmm
Weight:1000(±5%)kg
Packaging Details:The normal package is wooden box(Size: L*W*H). If export to european countries,t
he wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it
according to customers special request.






Our Service
1. The company persists in the “Service is Available at Any Time” guidelines, advocates all staffs to pay close attention to the customer demands at any time, and endeavors to provide the solutions for the domestic and overseas customers.
2. At present, the company has more than 30 after-sales service staffs, who offer the service extending to the prefecture level, contact the customers directly, provide the timely, rapid and considerate service for the customers, and realize the door-to-door service within 72 hours.
3. Carry out one-year free maintenance and care of the complete machine for the customers, provide the professional training and technical guidance timely to solve the worries of the customers, and reflect the service mode of fast response, imely maintenance and tracking coordination fully.
