5 chute Economic Type Vietnam Cashew Color Sorter Nuts Sorting Machine

Basic Information
Place of Origin: Anhui,China
Brand Name: Hons
Certification: ISO9001,SGS,CE
Model Number: S5
Minimum Order Quantity: 1 unit
Price: Negotiable
Packaging Details: wooden case
Delivery Time: 10-15 work days
Payment Terms: L/C, T/T
Supply Ability: 800sets per year
Detail Information
Model: 6SXM-315(CCD) Capacity(T/h): 4.0~7.0
Power(Kw): ≤3.0 Weight(Kg): 1250(±5%)
Dimension(L/W/H Mm): 2210*1595*2040 Voltage(V): AC220V/50Hz
Color: White Channels: 5
Application: Sorting Product Name: Seafood Color Sorter

Product Description

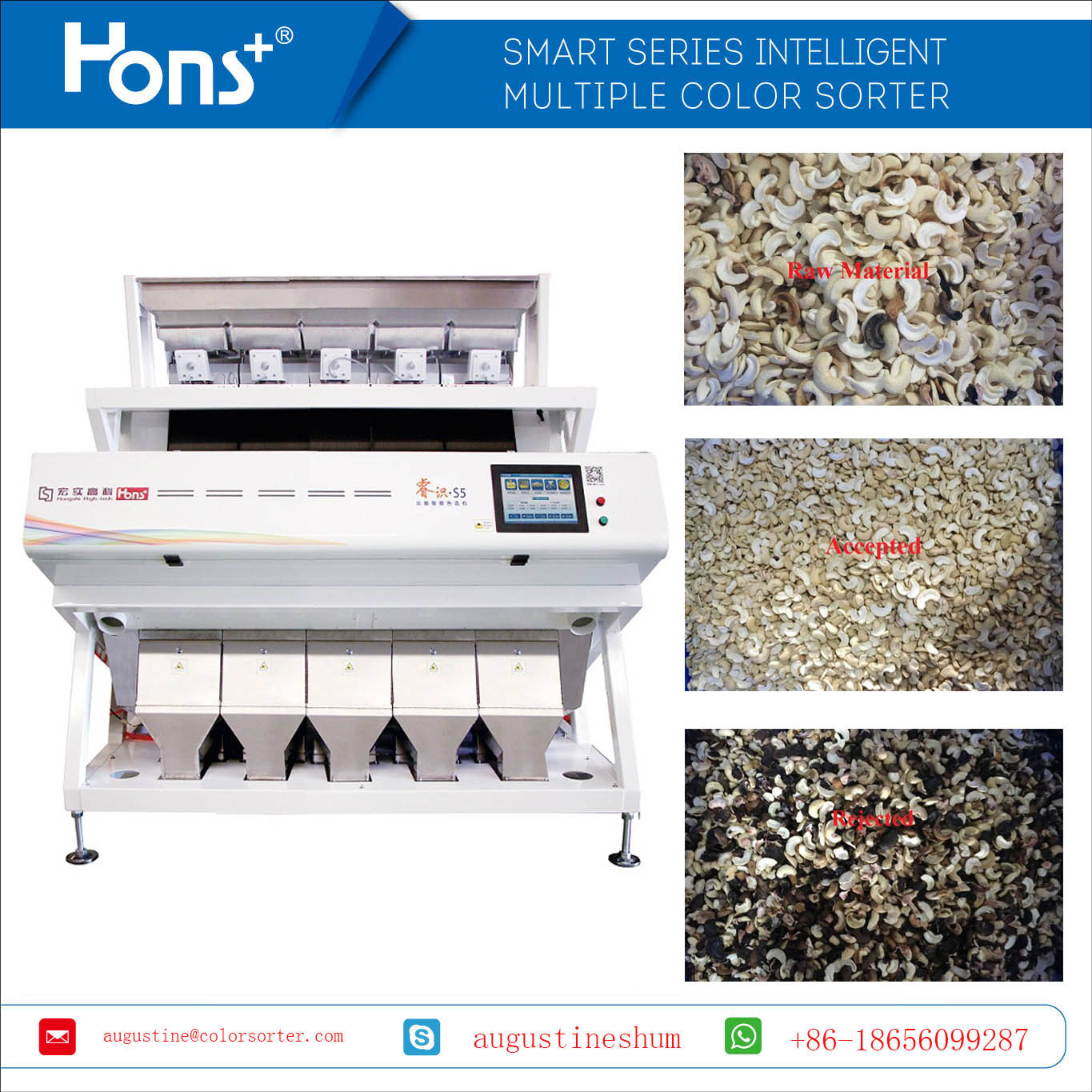

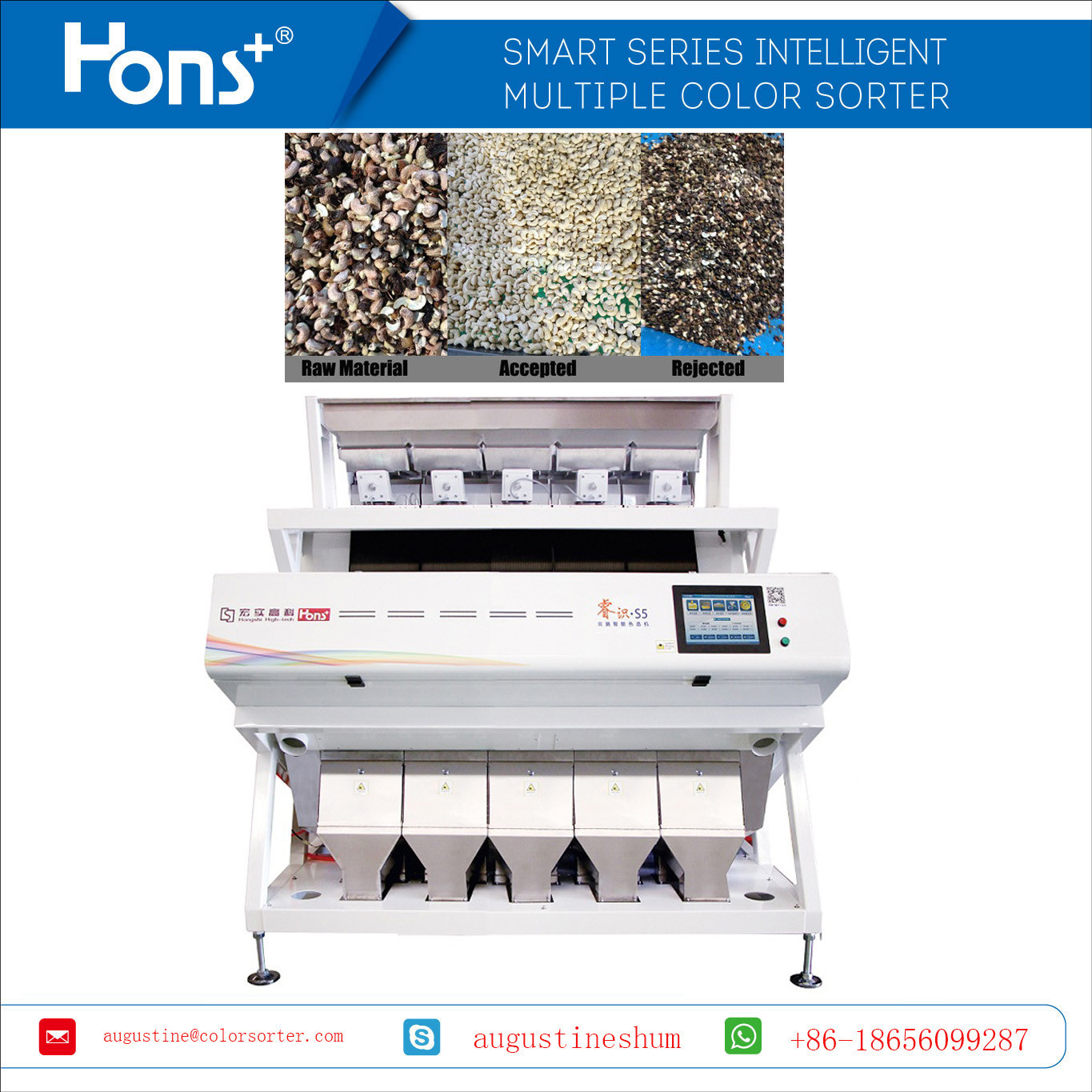

5 Chute Economic Type Vietnam Cashew Color Sorter Nuts Sorting Machine

5 chute Economic Type Vietnam Cashew Color Sorter Nuts Sorting Machine 0
Features:
1. Raw Material are put into the machine from its feeding hopper on the top.
2. Vibrated by vibration device and sliding along material chute into the zone of observation in sorting chamber through sensor and background plate .
3. Under the effect of light source, CCD sensor receives compound light from materials being sorted.
4. According to the light intensity and color changes, make the system produce output signal and drive solenoid valve to work ,ejecting the discolor grain to defect chamber and good materials continue to fall into the finished goods chamber.
Technical Parameter

Model S1 S2 S3 S4 S5 S6 S7 S8 S10 S12
Capacity(t/h) 0.8~2.0 1.2~2.5 1.5~3 3~6 4~7 5~8 6~10 7~11 7~15 10~18

Voltage

(V)

AC220V 50/60Hz AC220V 50/60Hz AC220V 50/60Hz AC220V 50/60Hz AC220V 50/60Hz AC220V 50/60Hz AC220V 50/60Hz AC220V 50/60Hz AC220V 50/60Hz AC220V 50/60Hz
Power(KW) ﹤1.5 ﹤2 ﹤2.4 ﹤2.6 ﹤3.0 ﹤3.6 ﹤4.0 ﹤4.6 ﹤5.5 ﹤7.0

Air pressure

(Mpa)

0.6-0.8 0.6-0.8 0.6-0.8 0.6-0.8 0.6-0.8 0.6-0.8 0.6-0.8 0.6-0.8 0.6-0.8 0.6-0.8

Dimension

(mm)

910*
1620*1550
1220*
1615*1550
1628*
1595*2040
1870*
1595*2040
2210*
1595*2040
2528*
1595*2040
2836*
1595*2040
3152*
1595*2040
3910*
1595*2040
4594*
1595*2100
Weight (Kg) 350 500 800 1000 1250 1400 1600 1800 2250 2700























High Sensitivity Sensor Advanced Operation System Self-owned & Developed Photo Sytem

Full Color Camera CCD Color Sorter S6 Type Intelligent Operating With Power Less 3.6KWFull Color Camera CCD Color Sorter S6 Type Intelligent Operating With Power Less 3.6KWFull Color Camera CCD Color Sorter S6 Type Intelligent Operating With Power Less 3.6KW










The Color Sorter is special for small speck, light yellow, chalky, discolor.



Full Color Camera CCD Color Sorter S6 Type Intelligent Operating With Power Less 3.6KW



Configuration Index

Item S-series Color Sorter Other Color Sorter
Capacity ★★★★★ ★★★★
Sorting Accuracy ★★★★★ ★★★★☆
Carryout Ratio ★★★★★ ★★★★☆
Multi-function ★★★★★ ★★★★
Remote Control ● ● ● ● ● — — — —
Remote Upgrade — — — —
Remote Training — — — —
Shape Indentification — — — —
Effect Preview — — — —



Remark:

Functional Strength Standard Configuration — NULL

The parameter are datermined at room temperature 25℃ and impurity of 2% of raw material.



5 chute Economic Type Vietnam Cashew Color Sorter Nuts Sorting Machine 55 chute Economic Type Vietnam Cashew Color Sorter Nuts Sorting Machine 65 chute Economic Type Vietnam Cashew Color Sorter Nuts Sorting Machine 75 chute Economic Type Vietnam Cashew Color Sorter Nuts Sorting Machine 8


Packaging & shipping
Delivery Detail:
Shipped in 15 days after payment
Packaging: Plywood case


Our Service
1. The company persists in the “Service is Available at Any Time” guidelines, advocates all staffs to pay close attention to the customer demands at any time, and endeavors to provide the solutions for the domestic and overseas customers.
2. At present, the company has more than 30 after-sales service staffs, who offer the service extending to the prefecture level, contact the customers directly, provide the timely, rapid and considerate service for the customers, and realize the door-to-door service within 72 hours.
3. Carry out one-year free maintenance and care of the complete machine for the customers, provide the professional training and technical guidance timely to solve the worries of the customers, and reflect the service mode of fast response, imely maintenance and tracking coordination fully.
