Type: | S5 | Capacity: | 4.0 ~ 7.0T/H |
---|---|---|---|
Voltage: | AC220V/50HZ | Power: | 3.0KW |
Size: | L 2210mm * W 1595mm * H 2040mm | Weight: | 1250KGS (+/-5%) |
High Light: | Wheat Optical Sorting Equipment,Millet Optical Sorting Equipment,3.0KW optical sorting machine |

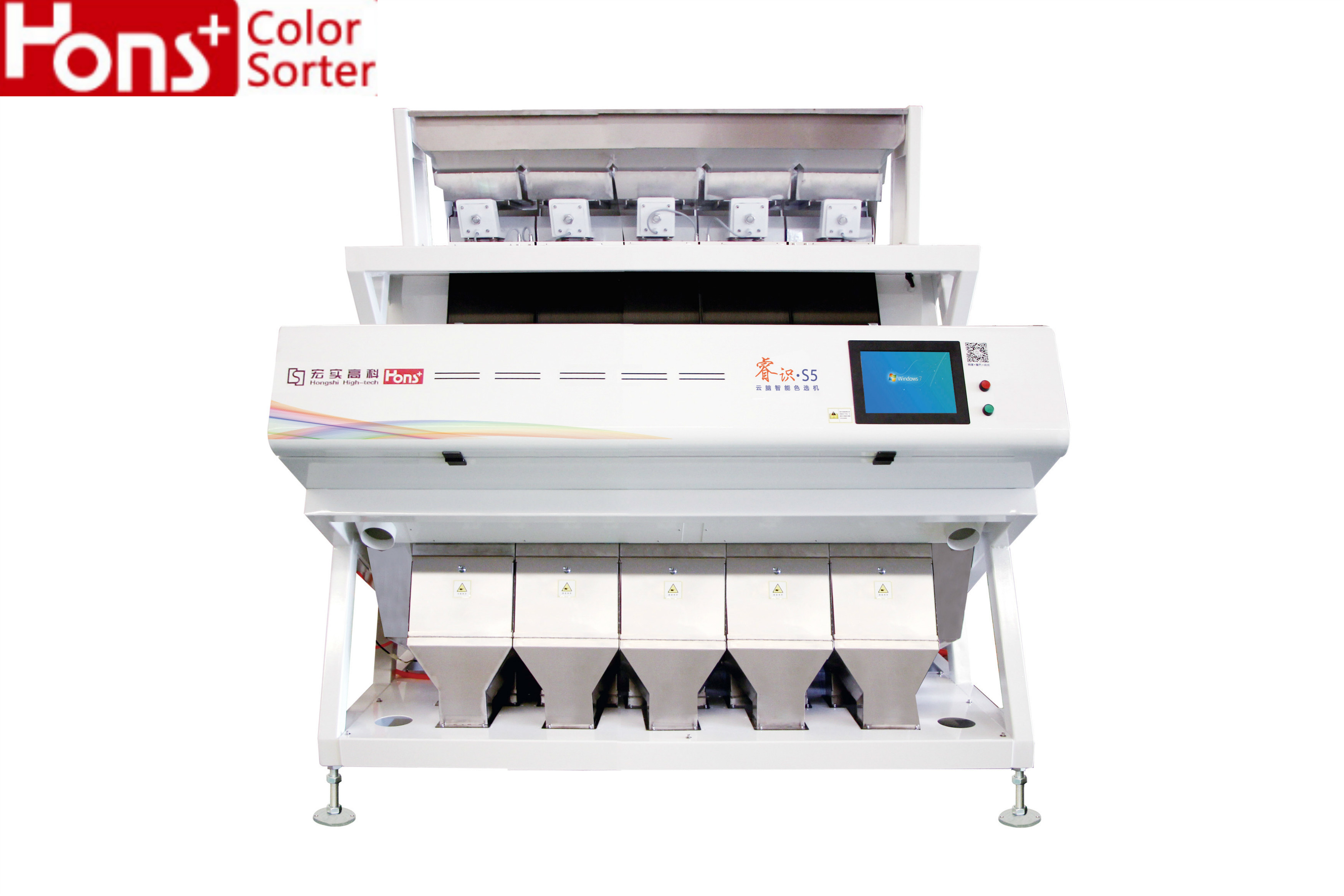

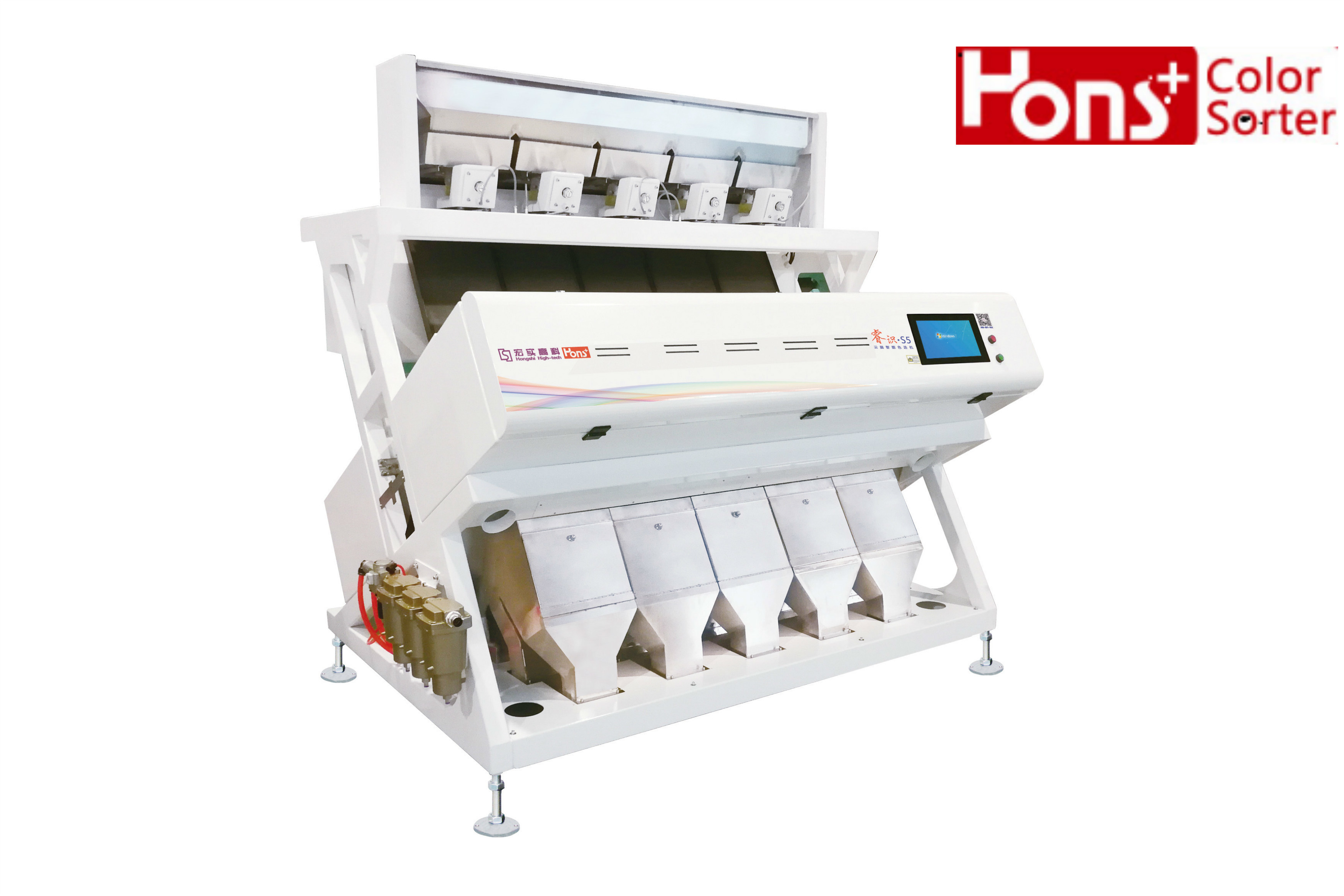

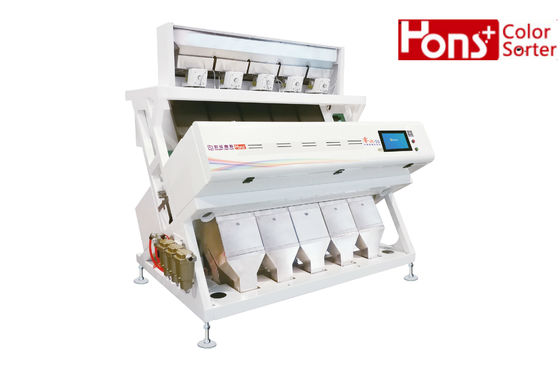

Chute Type CCD Color Sorter With High Production Capacity
CCD color sorter is a kind of machine that can identify the discolored impurities by the optical technology so as to purify the agro product such as rice, corns, beans, nuts, seeds, dried food and so on.
The working principle is the raw material fall from the viberatory feeder, down along the V-shape pass on the chute and be scanned by the optical system when pass through the identification area equiped with camera and light source, then the image/optical charactoristics will be transfered to the CCD sensor for analysis, which will finally drive the ejector to blow out the discolored impurities according to the setting paramerter.
Main Component
Color Sorting System
The advanced operation system. Special for small speck, light yellow, chalky, discolor.
HD Image Capture System
High speed, high resolution CCD camera.
Shadowless Colorful Spectrum LED
High-brightness LED light source. High brightness, low power consumption, long life, and strong reliability.
Multi-core Parallel Image Processing System
High clear imaging, Nikon CCD camera. Super clear imaging, resolution ratio, color reduction well, no distortion.
Intelligent High-frequency Solenoid Valve Of Magnetic Control
High-frequency solenoid valve. Special color selection, high frequency, low energy consumption, high sorting accuracy.
Type | CCD |
Brand of Filter | YSC of Korea |
Type of Sensor | Toshiba CCD Sensor Of Japan |
Pixels of Camera | 54 Mega Pixel |
Qty. of Camera | 10 |
Touch Screen | Azura from America |
Valve | Daewon from Korea |
Operation system | Windows 7 from America |
Lens | Nikon from Japan |
