RGB Camera Red Beans CCD Color Sorter 4.0KW Image Processing System

Basic Information
Place of Origin: China
Brand Name: Hons+
Certification: ISO/SGS/CE
Model Number: S7
Minimum Order Quantity: 1 set
Price: $22000-$25000
Packaging Details: Wooden case
Delivery Time: 5-8 worker days
Payment Terms: L/C, D/P, D/A, T/T
Supply Ability: 500sets/month
Detail Information
Power(Kw): 4.0 Dimension(L*W*Hmm): 2836*1595*2040
Capacity(T/h): 4.0t-5.0t Voltage(V): AC220V/50Hz
Weight(Kg): 1600kg Applicable Material: Peanut/Rice/grain
Pixels: 54 Million Feature: High Sensitivity
Product Name: CCD Color Sorter
High Light:

RGB CCD Color Sorter

,

Camera CCD Color Sorter

,

RGB Beans Color Sorter


Product Description

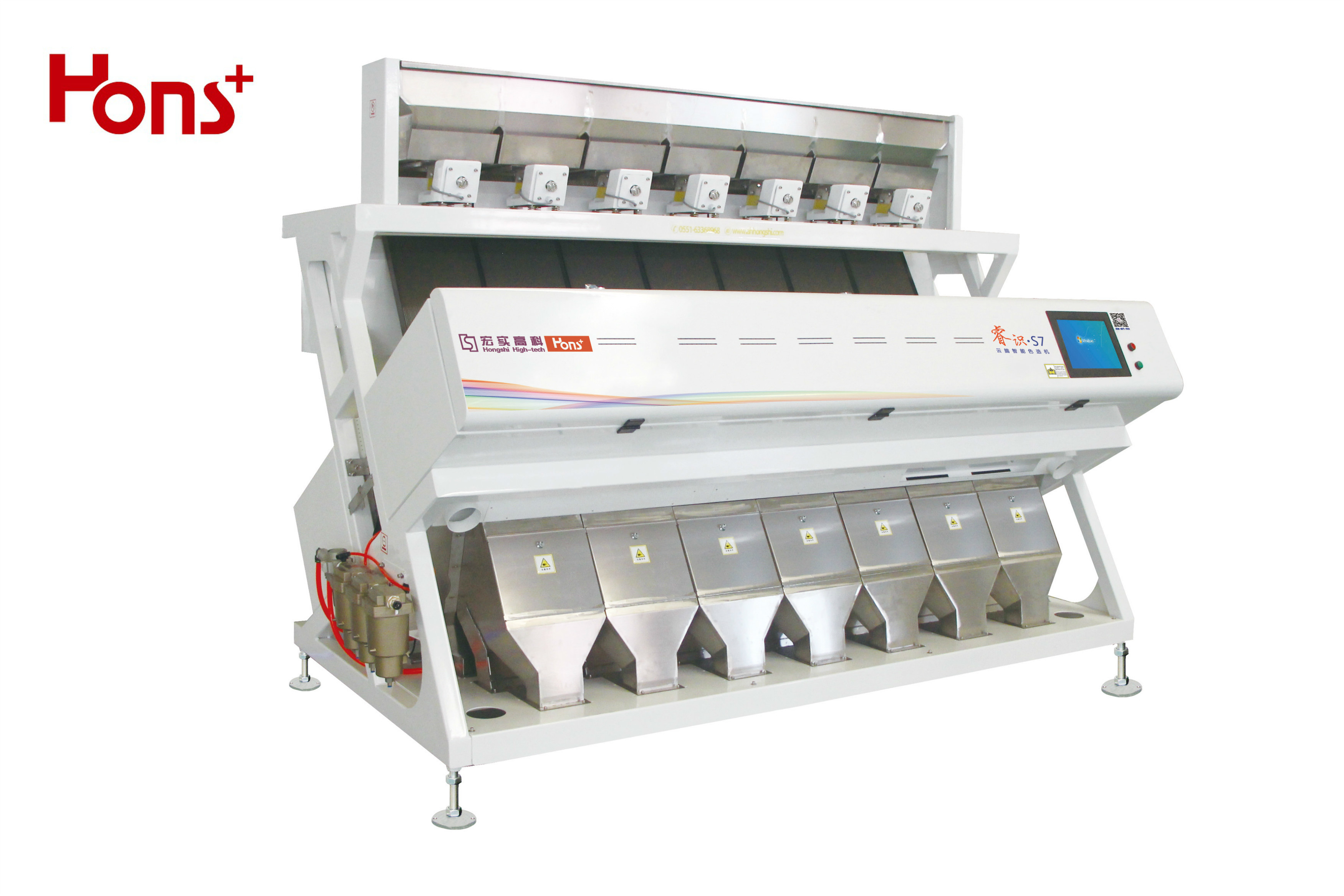

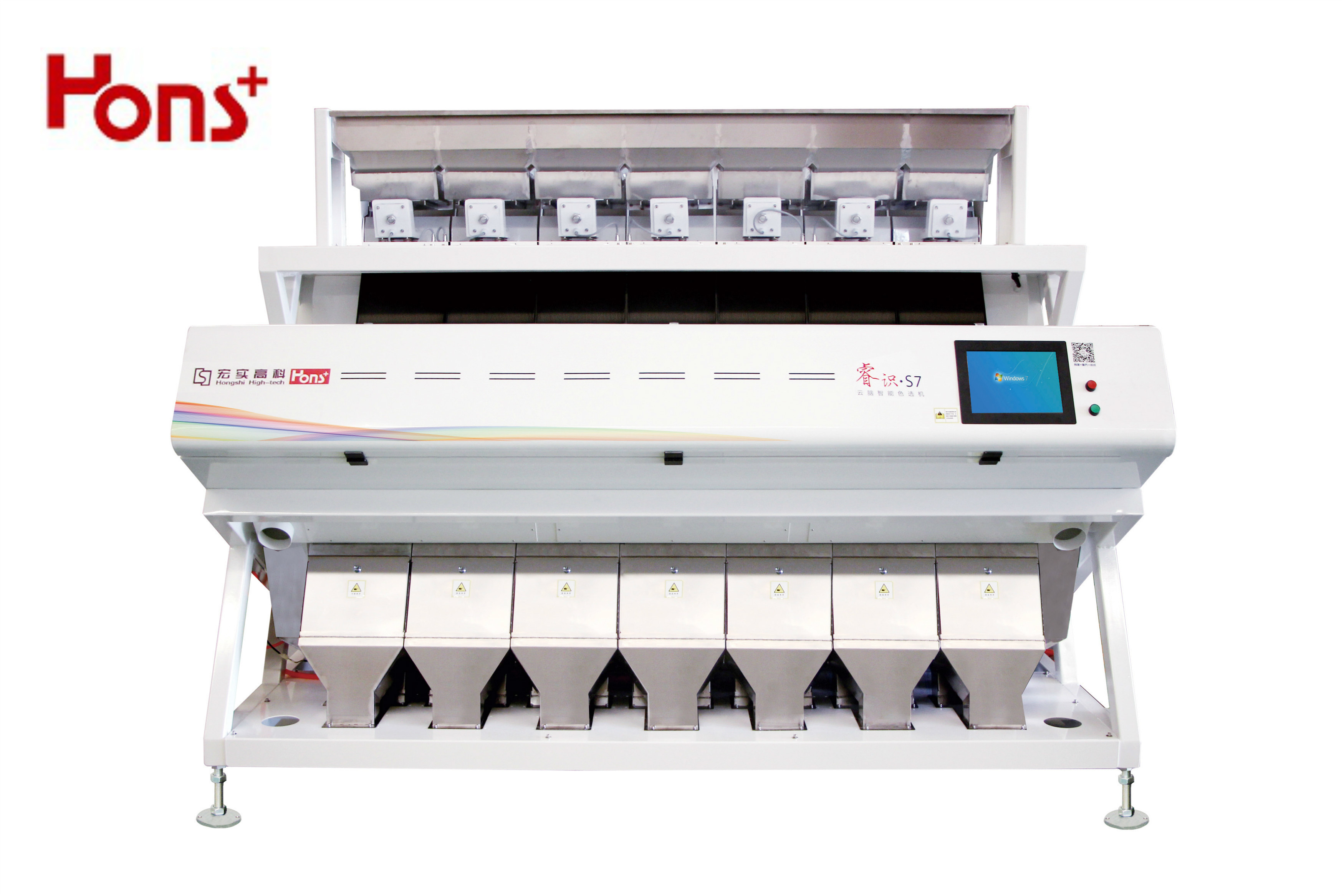

RGB Camera Red beans Color Sorter Machine 4.0KW Image Processing System

Sorting materials

1. Beans: kidney bean, soybean, mung/red bean, black bean, pea/ broad bean, coffee bean, lentil, chickpea

2. Rice: white rice, parbouled rice,black rice, yellow rice, brown rice, barley rice

3. Nuts: peanuts, ground nut,cashew nut, walnut meat,pine

4. Wheat: Buckwheat,Quinoa,Qatmeal.

5. Vegetable: dry onion,daylily,back fungus,sea vegetables

6. Food: vegetable seeds, cumin seeds,prickly ash seeds,dried shrimps,small shrimp, cotton seed/corn seed/wheat seed/pepper seed/onion seed

7. Industrial: plastic, broken glass,quaze,ore,scrap metal,slag,salt,refractory

S7 Technology parameters



Brand Hons+
Model S7
Chutes 7
Channels 441
Capacity(kg/hour) 2000KG-2500KG
Power(kw) 4.0KW
Weight(Kg) 1600KG
Voltage(v) AC240/50HZ
Dimension(l*w*hmm) 2836*1595*2040




RGB Camera Red Beans CCD Color Sorter 4.0KW Image Processing System 0

Main Features of color sorter machine:
1.Use 5400-pixel high-speed high resolution linear CCD image sensor and high-precision dedicated lens to receive images, which can distinguish the heterochromatic regions of 0.04mm2 accurately

2.Use the imported LED light source that features higher brightness, longer service life, more stable quality and better performance.

3.The mechanical structure is designed for reliability and stability, introducing the cooling system to improve the service life and stability of the machine.

4.The electrical and optical design system is meant for simplicity and efficiency, the optimized system structure reduces the complexity of the machine, and improves the reliability of the machine.

Sorting performance

RGB Camera Red Beans CCD Color Sorter 4.0KW Image Processing System 1 RGB Camera Red Beans CCD Color Sorter 4.0KW Image Processing System 2

FAQ
1. How about engineers service oversea?
Engineers available to service machinery overseas.

2. How to use the machine?
We will supply customer the installation catalog or video online.

3. How about the sample machines for testing?
Sample sending for testing is welcomed.Or you send these three photos, the raw material, good material (which is you want) ,bad material (which is you want to discard).we send our video to you.

4. How about the guarantee period?
One year.

5. Will you accept L/C as payment?
L/C, T/T is OK .

Alibaba Trade Assurance is your best choice.

6.Do you have any other spare parts for the customer?
Yes,we will supply you some spare parts .

Why Choose Hons+:

1. Over 10 years experience which focus on sorter machine. One of the most advanced manufacturer in Hefei, Anhui.

2. After-Sales service guarantee: We have a professional after sales service team, one-to-one customer service to help customers install and debug.

3. We have service station over Southeast Asia, co-operate re-seller in more than 50 countries.

4. Quality assurance of raw materials: the raw material we purchase are certified qualified products.

5. Quality process assurance: We have been authorized by CE & ISO quality management system, each process of production are under strictly standard.

6. System test: Our technical engineers check the product performance, even every part is subjected to rigorous aging test to ensure that the factory products would being in full compliance with customer requirements.

7. Shipping guarantee: We have professional packaging operation team, independent export qualification to ensure product safety and stability to reach customers in the hands.

 RGB Camera Red Beans CCD Color Sorter 4.0KW Image Processing System 3

RGB Camera Red Beans CCD Color Sorter 4.0KW Image Processing System 4
