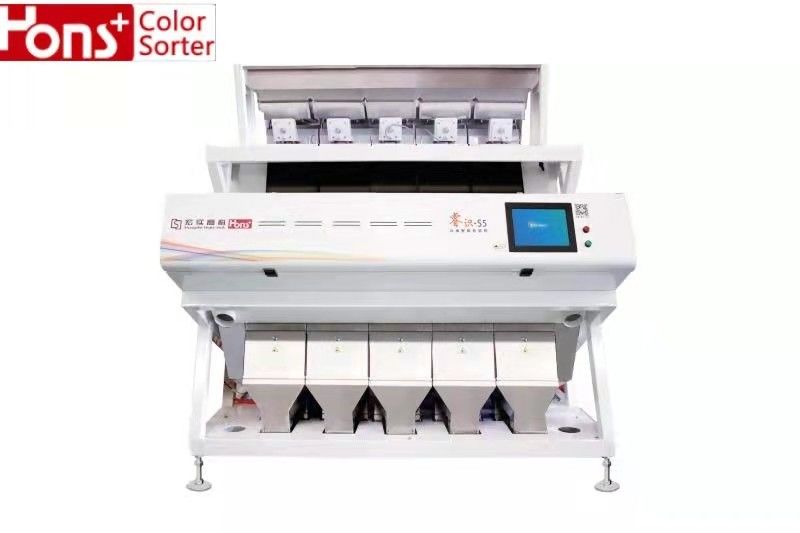

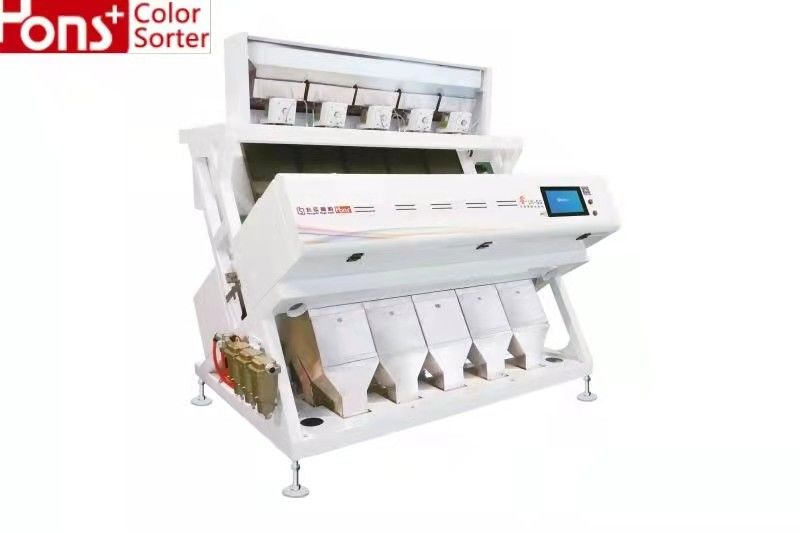

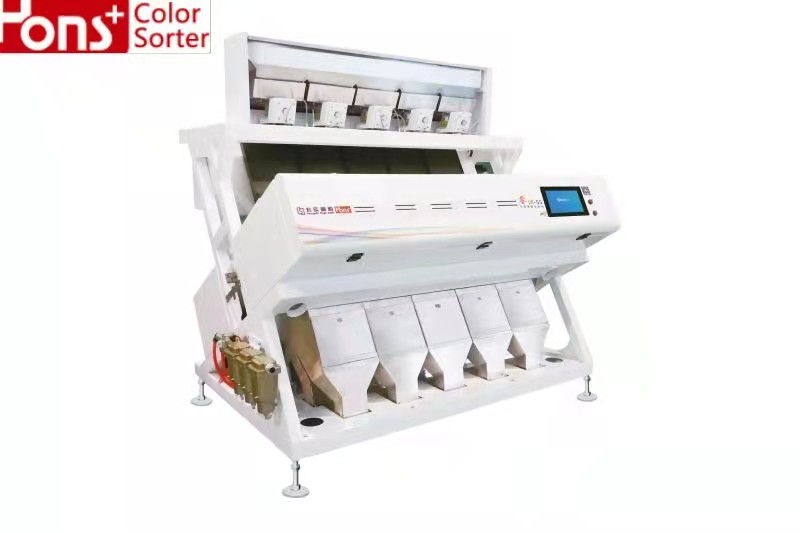

Multiple Function 5400 Pixel Seasame RGB Color Sorter

Basic Information
Place of Origin: China
Brand Name: Hons+
Certification: ISO/SGS/CE
Model Number: S5
Minimum Order Quantity: 1 set
Price: $15000-$21000
Packaging Details: Wooden case
Delivery Time: 5-8 worker days
Payment Terms: L/C, D/P, D/A, T/T
Supply Ability: 500sets/month
Detail Information
Power(Kw): 3.0 Dimension(L*W*Hmm): 2210*1595*2040
Capacity(T/h): 1.6-2.0t Voltage(V): AC220V/50Hz
Weight(Kg): 1250 Applicable Material: Rice/Food/Seasame/Peanut
Pixels: 54 Million Feature: High Sensitivity
Product Name: CCD Color Sorter
High Light:

5400 Pixel RGB Color Sorter

,

Multiple Function RGB Color Sorter

,

5400 Pixel Seasame Color Sorter


Product Description

Remote Control 5 Chutes Rice Color Sorter Machine 54 Million Pixels

Sorting materials



1. Rice: white rice, parbouled rice, yellow rice, brown rice, barley rice
2. Beans: soybeans, mung beans, red beans, coffee beans
3. Nuts: peanuts, cashew nut, walnut meat,pine nuts
4. vegetables: dry onion,daylily,back fungus
5. Seeds: vegetable seeds, cumin seeds,prickly ash seeds

6. Industrial:plastic, broken glass,quaze,ore,scrap metal



Machine parameters

Technology parameters


Name
S1 S2 S5 S7
Model 6SXM-63 6SXM-126 6SXM-315 6SXM-441
Capacity(Kg/H) 300Kg-400Kg 300Kg-800Kg 1200Kg-1600Kg 1500Kg-2400Kg
Voltage(V) AC220V/50HZ AC220V/50HZ AC220V/50HZ AC220V/50HZ
POWER(KW) <1.5 <2.0 <3.0 <4.0
Weight(KG) 350Kg 500Kg 1250Kg 1600Kg
Dimension(L*W*H/MM) 910*1620*1550 1220*1620*15500 2210*1595*2010 2836*1595*1850
Air Consumption 0.9 m³/min 1.8m³/min
1.8 m³/min

3 m³/min
Air pressure 0.6-0.8mpa 0.6-0.8mpa 0.6-0.8mpa 0.6-0.8mpa
Air compressor power 4kw 5.5Kw 11kw*2 15kw*2
Air tank   300L 1000L 1000L
Cooling Model wind cooling wind cooling wind cooling wind cooling
Mini Resolution( mm²) 0.03 0.03 0.03 0.03







Multiple Function 5400 Pixel Seasame RGB Color Sorter 0

Technical characteristic

1. Automatically collecting hyper space data such as color,shape,size,and defect to achieve accurate acquisition of raw materila features

2. The world's leading full-color linear array scanning technology and DPS+FPGA parallel multi-line pipeline processing technologgy to solve the problem, use multiple intelligent algorithm, high accuracy sorting, special for small speck, light yellow, chalky, discolor.

3. The self-developed magnetically controlled high-frequency solenoid valve achieves flexible contact between devices and has a service life of more than 6 to 10 billion times. Meanwhile, intelligent repair technology reduces maintenance costs and extends liofetime of valve.

4. The advances digital non-polar intelligent dimming technology can automatically match the best brightness according to the material selection requirements and the changes of enviroment to guarantee the sorting perfoermance.


5. Intelligent operation platform with storage of 100 sorting modes can achieve multiple functions of one machine, user-friendly control and easy to operate.


6. The patented intelligent dust-extraction system can rapidly remove light objects and dusts adhered to the materials, for which ensuring teh sorting accuracy and improving machine efficient.



Sorting performance



 Multiple Function 5400 Pixel Seasame RGB Color Sorter 1

 Multiple Function 5400 Pixel Seasame RGB Color Sorter 2

FAQ


1. How about the sample machines for testing?

Sample sending for testing is welcomed.

Or you send these three photos, the raw material, good material (which is you want) ,bad material (which is you want to discard).we send our video to you.

2. How about the guarantee period?
One year.

3. Will you accept L/C as payment?
L/C, T/T is OK .

Alibaba Trade Assurance is your best choice.

4.Do you have any other spare parts for the customer?
Yes,we will supply you some spare parts .

5.Which machine will work together with our color sorter which you can supply?
Air compressor ,Air tank ,Air filters,Air dryer , light sources, cleaning brushes, etc

Why choose Hons+

1. Over 10 years experience which focus on sorter machine. One of the most advanced manufacturer in Hefei, Anhui.
2. After-Sales service guarantee: We have a professional after sales service team, one-to-one customer service to help customers install and debug.
3. We have service station over Southeast Asia, co-operate re-seller in more than 50 countries.
4. Quality assurance of raw materials: the raw material we purchase are certified qualified products.
5. Quality process assurance: We have been authorized by CE & ISO quality management system, each process of production are under strictly standard.
6. System test: Our technical engineers check the product performance, even every part is subjected to rigorous aging test to ensure that the factory products would being in full compliance with customer requirements.
7. Shipping guarantee: We have professional packaging operation team, independent export qualification to ensure product safety and stability to reach customers in the hands.



Multiple Function 5400 Pixel Seasame RGB Color Sorter 3

Multiple Function 5400 Pixel Seasame RGB Color Sorter 4
