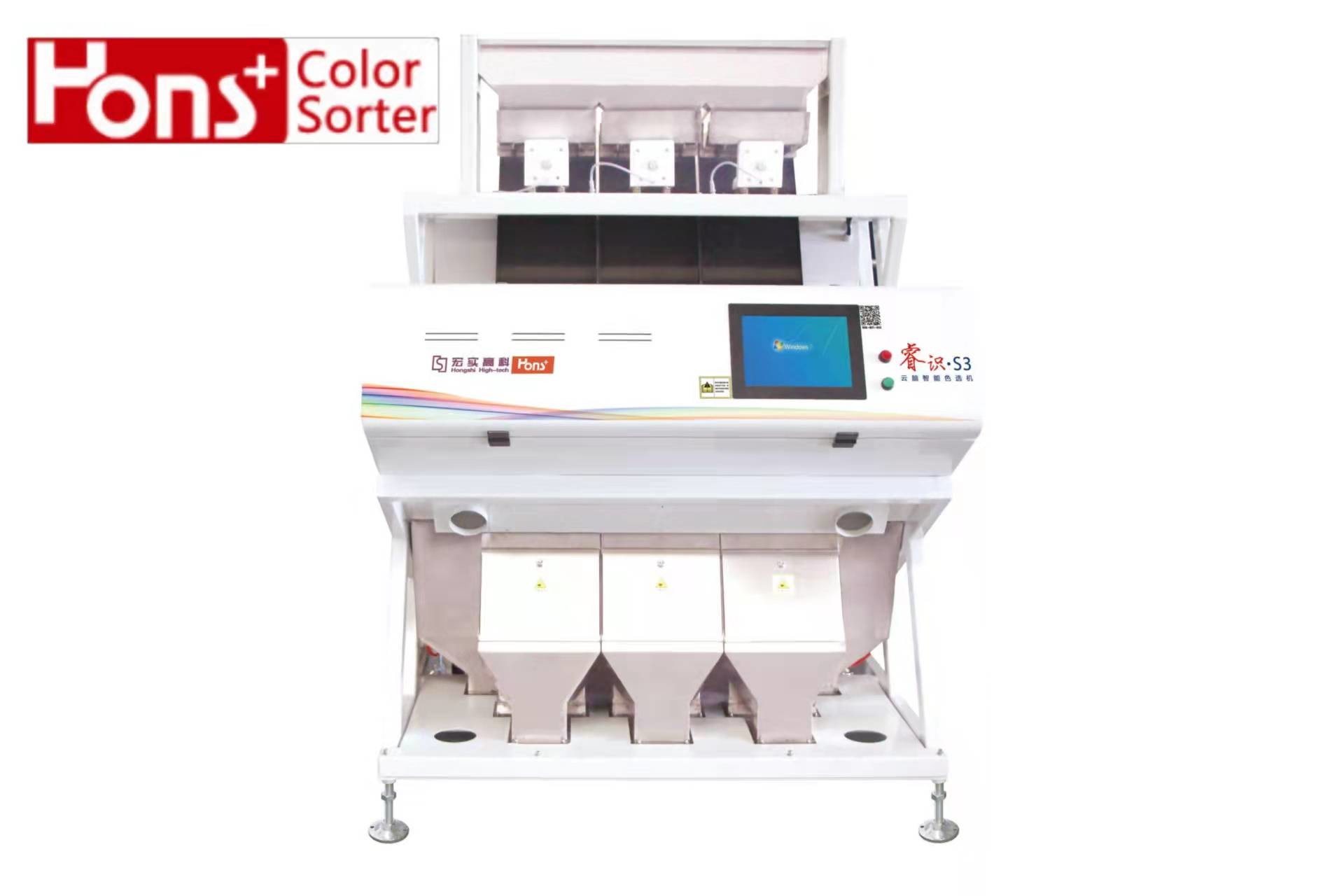

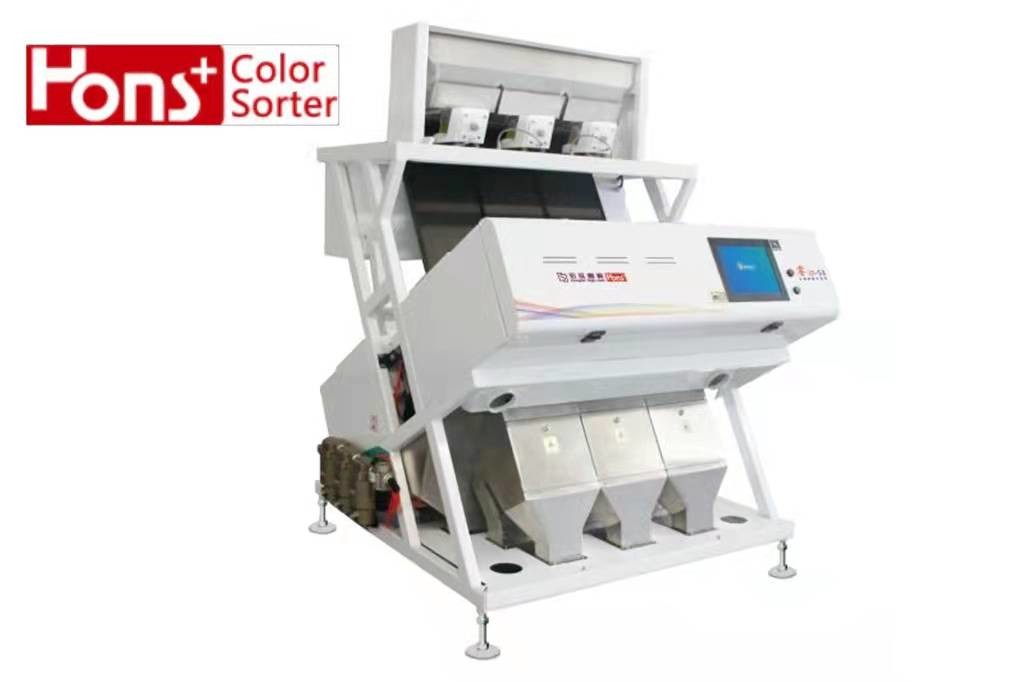

Automatically 3 Chutes CCD Color Sorter With Solenoid Ejector

Basic Information
Place of Origin: China
Brand Name: Hons+
Certification: ISO/SGS/CE
Model Number: S3
Minimum Order Quantity: 1 set
Price: $9500-$13500
Packaging Details: Wooden case
Delivery Time: 5-8 worker days
Payment Terms: L/C, D/P, D/A, T/T
Supply Ability: 500sets/month
Detail Information
Capacity(T/h): 1.0-2.0 Voltage(V): AC220V/50Hz
Power(Kw): 2.4 Weight(Kg): 800
Dimension(L*W*Hmm): 1628*1595*2040
High Light:

Automatically CCD Color Sorter

,

3 Chutes automatic color sorter

,

Solenoid Ejector automatic color sorter


Product Description

Automatically Separate Sorting Machine For Cardamom/Rice/Beans

Product Features:



High Effective Solenoid Ejector
Independent developed intelligent magnetic control high-frequency ejector has no air leakage problem thanks to the replacement of intelligent lever flexible return technology for traditional pressure return technology.



Interconnection System

54 Megapixel CCD Camera plus high sensitivity sensor ensure the high processing speed and sorting accuracy, which is widely applied in the food processing factory and industrial material processing factory.



One Key Smart Operation System
The users can set the area of the material color, shape, size and defect by themselves and confirm the rejected material, so the machine can automatically set the sorting solution of the material according to the independent calculating, intelligent recognition and intelligent sorting principles with one key intelligent control technology.



Smart Visual Image Capture System
High technology of image process let all most kind of materials be caught photo and analysized the different color features, which is suitable for any kind of colour, defects of 0.04mm2 can be detected.



High Effective LED LightingSystem

The leading LED light source technology, high efficiency, long service life, low energy consumption, more stability. It has allowed our equipment to achieve the highest signal/noise ratio and vastly improve the stability of color sorting.



CCD color sorter machine parameters

Channels
189
Sorting Accuracy(%):
≥99.9
Carryover Rate(bad:good):
≥12:1
Voltage:
220V/50Hz
Weight(kg): 400Kg-600Kg
Diamension/Size (L*W*H)mm 1628*1595*2040
Package:
Wooden Case



Sorting materials

Industrial products: Broken glass / quartz sand / recycled plastic / salt / minerals / monosodium glutamate / white sugar / pill / pearl
Rice: Rice / Brown rice / Glutinous rice / Millet / Sorghum / Myotonin / Black rice
Beans: cardamom
/soybeans / mung beans / red beans / black beans / peas / broad beans / coffee beans
Seeds: cotton seeds / corn seeds / wheat seeds / pepper seeds / onion seeds
Nuts and kernels: cashew nuts / peanuts / walnuts / pistachios
Dried vegetables: pepper / garlic flakes / carrot grains / onions / cabbage
Economic crops: raisins / medlars / lilies / dates / shrimp bran / tobacco / agaric



Sorting performance

Automatically 3 Chutes CCD Color Sorter With Solenoid Ejector 0



Automatically 3 Chutes CCD Color Sorter With Solenoid Ejector 1



FAQ
1. How many days for production?
In general,within8-12workers days after getting deposit payment.

2.Are you a trading company or a factory,will it be cheaper to buy from your side?
More than 15 years of professional manufacturing experience, more than 10years exporting experience overseas,more reliable quality,more timely service.
The same quality, more favorable price.

3.Do you provide product installation,training and after-sales service?
Most products can be installed and trained through online video and text mode.If special products need to be installed on site,we will arrange technicians to install and debug on site.

4.We are small buyer , can we buy your products locally , do you have local agents?

If you need to buy locally ,please tell us your region name,we can recommend the most suitable local dealer for you.

About us

1. The leading photoelectric detection and classification equipment supplier in China.

2. We supply optic detection and classificationequipment as rice color sorting machine, grain color sorting machine, grain colorsorting machine,tea color sorting machine,belt color sorting machine ect,And also offer the effective fast solution for relative industry.

3.Hons+ brand series product have been popular both in domastic and oversea market many years, we have exported over than 45countries with high praise from customers.

 Automatically 3 Chutes CCD Color Sorter With Solenoid Ejector 2

Automatically 3 Chutes CCD Color Sorter With Solenoid Ejector 3
