| Place of Origin: | China |
|---|---|
| Brand Name: | Hons+ |
| Certification: | ISO/SGS/CE |
| Model Number: | S5 |
| Minimum Order Quantity: | 1 set |
| Price: | $9500-$16000 |
| Packaging Details: | Wooden case |
| Delivery Time: | 5-8 worker days |
| Payment Terms: | L/C, D/P, D/A, T/T |
| Supply Ability: | 500sets/month |
| Power（Kw）: | 3.0 | Dimension(L*W*Hmm): | 2210*1595*2040 |
|---|---|---|---|
| Capacity(T/h): | 1.6-2.0t | Voltage(V): | AC220V/50Hz |
| Weight(Kg): | 1250 | Applicable Material: | Rice/Food/Seasame/Peanut |
| Pixels: | 54 Million | Feature: | High Sensitivity |

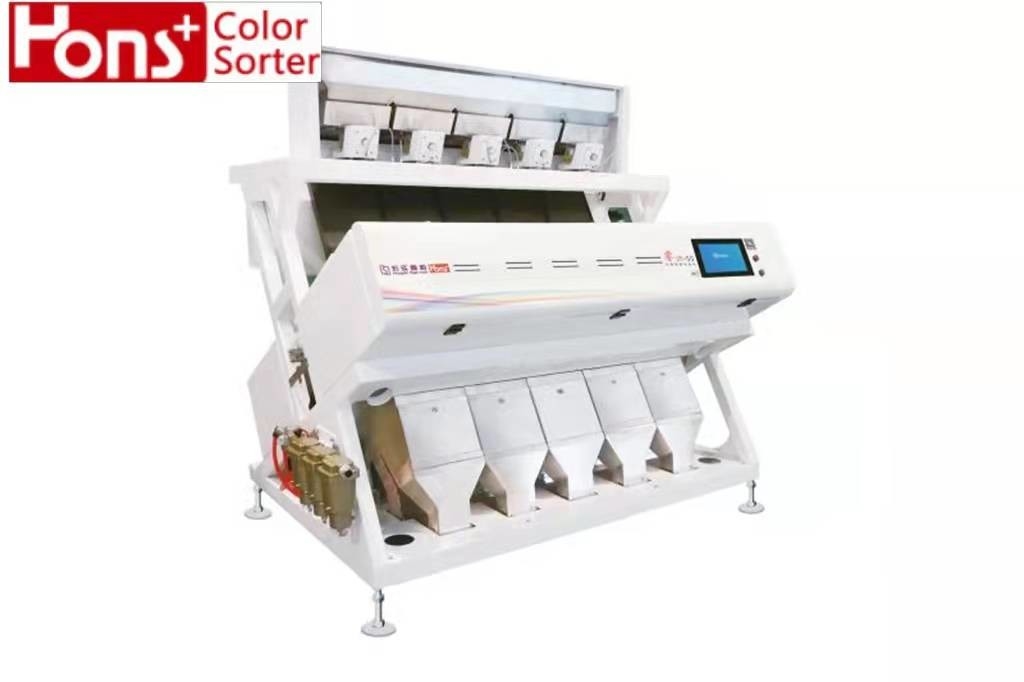

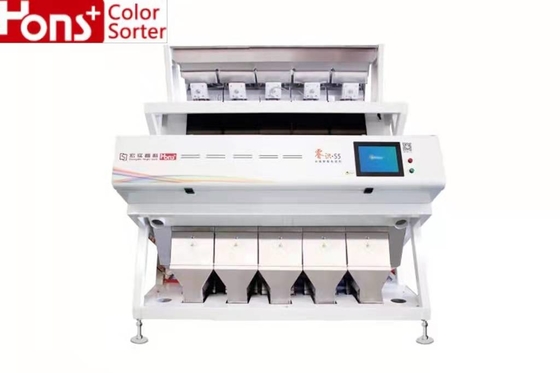

| Product Name: | CCD Color Sorter | ||
| High Light: | 2.0T/H Optical Color Sorting Machine,54 Million pixels Optical Color Sorter,High Sensitivity Walnut Color sorter |
||
Sorting materials
1. Beans: soybeans, mung beans, red beans, coffee beans,chickpea,red lentils
2. Rice: white rice, parbouled rice,black rice, yellow rice, brown rice, barley rice
3. Nuts: peanuts, ground nut,cashew nut, walnut meat,pine
4. Wheat: Buckwheat,Quinoa,Qatmeal.
5. Vegetable: dry onion,daylily,back fungus,sea vegetables
6. Food: vegetable seeds, cumin seeds,prickly ash seeds,dried shrimps,small shrimp
7. Industrial: plastic, broken glass,quaze,ore,scrap metal,slag,salt,refractory
Machine parameters
|
Channels
|
315 |
|
Sorting Accuracy(%):
|
≥99.9 |
|
Carryover Rate(bad:good):
|
≥12:1 |
| Capacity:(kg/hour) | 1600kg-2000kg |
|
Voltage:
|
220V/50Hz |
| Weight(kg): | 1250kg |
| Power(Kw) | 3.0Kw |
| Diamension/Size (L*W*H)mm | 2210*1595*2040 |
| Package: |
Wooden Case
|
Characteristic
1. Massive database with storage of unlimited modescan achieve multiple function of one machine. Single machine can be applied to rice, grains, cash crops and other applications, provide maximum value of product and best convenience of massive datebase for customer.
2. International leading full color high speed scanning CCD sensor, scanning speed up to 5400 points, acquisition frequency 10K/S (54 million pixel +10K camera); color + shape multi-line processing, perfect processing of small defects in materials,the minimum scanning or identification area is 0.04mm2.
3. Automatic collection of supreme dimension spatial data such as color, shape, size and defect to achieve accurate collection of raw material features, automatic judgment and accurate matching of the optimal selection scheme, independent operation, intelligent identification and intelligent sorting according to the rule of selection.
4. Independently developed intelligent magnetic control high frequency solenoid valve for color sorter. The valve opens & responds quickly, improving the finished product accuracy; the valve closes crisply and neatly, reducing the defective product taken out. Valve flexible contact, service life of 60-100 billion times, compared with similar products 10-30 billion times. Independent research and development of intelligent repair technology to reduce maintenance costs.
5. Overall new chute design,specoal technology chute makes material transfer more steady and output increased 20%-30%,meanwhile, we also could provide plate-type and slot-type for meeting the various demands.
6. Adjustable ligh source technology,the overall upgrade LED light source could adjust the outpit power of ligh source according to those different materials,ensure the accurate obtaining of materials's information;LED lighting system with radiating function makes it in longer using,lower energy consumption and better performance.
Sorting performance
FAQ
Sample sending for testing is welcomed.
Or you send these three photos, the raw material, good material (which is you want) ,bad material (which is you want to discard).we send our video to you.
2. How about the guarantee period?
One year.
3. Will you accept L/C as payment?
L/C, T/T is OK .
Alibaba Trade Assurance is your best choice.
4.Do you have any other spare parts for the customer?
Yes,we will supply you some spare parts .
5.Which machine will work together with our color sorter which you can supply?
Air compressor ,Air tank ,Air filters,Air dryer , light sources, cleaning brushes, etc
Why choose Hons+
1. Over 10 years experience which focus on sorter machine. One of the most advanced manufacturer in Hefei, Anhui.
2. After-Sales service guarantee: We have a professional after sales service team, one-to-one customer service to help customers install and debug.
3. We have service station over Southeast Asia, co-operate re-seller in more than 50 countries.
4. Quality assurance of raw materials: the raw material we purchase are certified qualified products.
5. Quality process assurance: We have been authorized by CE & ISO quality management system, each process of production are under strictly standard.
6. System test: Our technical engineers check the product performance, even every part is subjected to rigorous aging test to ensure that the factory products would being in full compliance with customer requirements.
7. Shipping guarantee: We have professional packaging operation team, independent export qualification to ensure product safety and stability to reach customers in the hands.
