| Place of Origin: | Anhui,China |
|---|---|
| Brand Name: | Hons |
| Certification: | ISO9001,SGS,CE |
| Model Number: | S21 |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotiable |
| Packaging Details: | wooden case |
| Delivery Time: | 10-15 work days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 800sets per year |
| Model: | 6SXL-126D(CCD) | Capacity(T/h): | 1.0~3.0 |
|---|---|---|---|
| Power(Kw): | ≤2.5 | Weight(Kg): | 2300(±5%) |
| Dimension(L/W/H Mm): | 2920*1220*1720 | Voltage(V): | AC220V/50Hz |
| Color: | Sliver | Channels: | 2 |
| Application: | Sorting | Product Name: | Plastic Color Sorter |
| High Light: | Belt Type Ccd Colour Sorter,Food Grade Ccd Color Sorter,Seaweed Ccd Color Sorter |
||

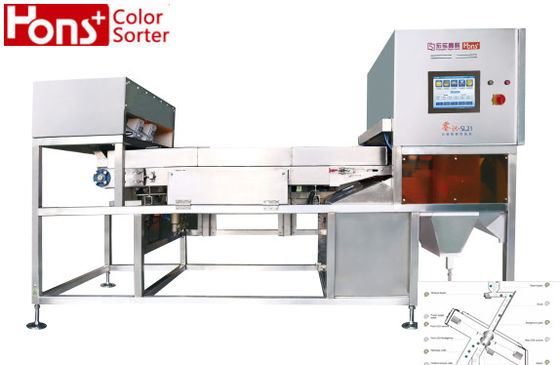

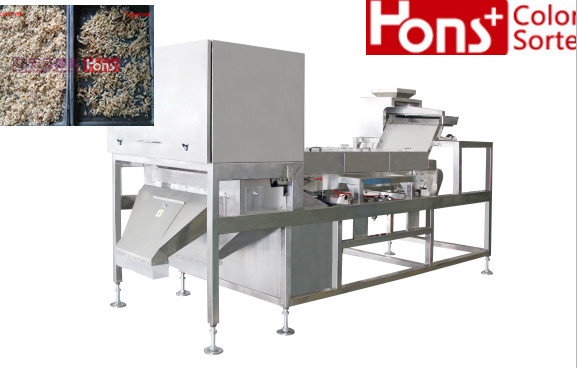

Belt Type Food Grade Ccd Color Sorter Seaweed Nut Shrimp Separator Equipment
Charactoristics
Intelligent operating system
The Windows 7 operating system is firstly applied in the color sorting industry. It can be upgraded to Windows 8windows 10 according to different application fields, which is stable and reliable. The system presupposes hundreds of material solutions, mode switch through only one hot key.
Massive Datebase And Multiple Function
Massive database with storage of unlimited modescan achieve multiple function of one machine. Single machine can be applied to rice, grains, cash crops and other applications, provide maximum value of product and best convenience of massive datebase for customer.
Intelligent image processing system
International leading full color high speed scanning CCD sensor, scanning speed up to 5400 points, acquisition frequency 10K/S (54 million pixel +10K camera); color + shape multi-line processing, perfect processing of small defects in materials,the minimum scanning or identification area is 0.04mm2.
Intelligent image acquisition system
Automatic collection of supreme dimension spatial data such as color, shape, size and defect to achieve accurate collection of raw material features, automatic judgment and accurate matching of the optimal selection scheme, independent operation, intelligent identification and intelligent sorting according to the rule of selection.
High speed feeding system
Patent high frequency vibrator, antioxidant anode treatment chute, greatly enhance production capacity, the output increased by 20%~30% comparing with similar products.
The Color Sorter is special for small speck, light yellow, chalky, discolor.
Belt CCD color sorter machine parameters
| Model | SL11 | SL21 |
|
Sorting Accuracy(%):
|
≥99.9 | ≥99.9 |
|
Carryover Rate(bad:good):
|
≥12:1 | ≥12:1 |
| Capacity:(kg/hour) | 200Kg-400Kg | 400Kg-800Kg |
|
Voltage:
|
220V/50Hz | 220V/50Hz |
| Weight(kg): | 600 | 850 |
| Diamension/Size (L*W*H)mm | 2920*1220*1720 | 3450*1275*1750 |
| Package: |
Wooden Case
|
Wooden Case |
Sorting Result
