| Place of Origin: | Hefei, Anhui, China |
|---|---|
| Brand Name: | Hons |
| Certification: | CE、SGS、ISO9001 |
| Model Number: | S2 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Wood Packaging 1220*1620*1550mm |
| Delivery Time: | 10-15 Work Days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 600Set/Sets Per Month |
| Model NO: | 6SXZ-126CCD) | Capacity(T/h): | 1.2~2.5 |
|---|---|---|---|
| Voltage(V): | AC220V/50Hz | Power(Kw): | ≤2.0 |
| Weight(Kg): | 500(±5%) | Dimension(L*W*H Mm): | 1220*1620*1550mm |
| Color: | White&Green | Channels: | 2 |
| Application: | Sorting | Product Name: | Raisin CCD Color Sorter |
| Type: | CCD | Camera Pixels: | 5400 |
| High Light: | grain sorting machine,grain sortex machine |
||

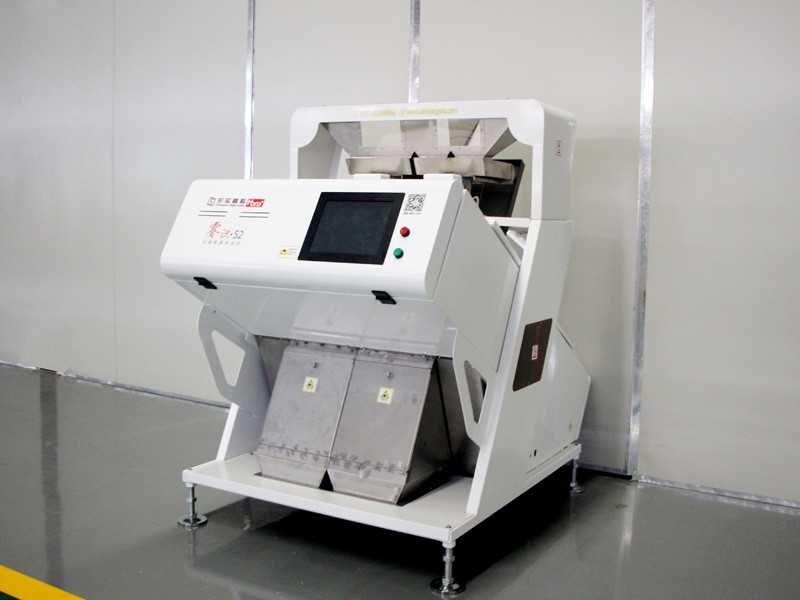

Raisin Electronic Grain Color Sorter With 5400 Camera Pixel CE Certificate
Raisin Color Sorter Features:
1. The color sorter uses 5000 high performances CCD sensors with resolution up 0.02mm².
2. The sorter adopts high quality special industrial lenses designed and manufactured for color sorting.
3. The high speed FPGA technology signal processor with fast detection and high identification rate.
4. Master control system adopts ARM9 embedded processor, and effectively enhances and control
speed and color selection precision.
5. Overall unit adopts intelligent closed-loop control.
6. The operation interface adopts industrial grade 7inch TFT contact screen and features simple parameters setting and esay operation.
7. High speed air value is used to ensure quick response, low power consumption and long service life.
8. Sorters use intelligent temperature and air pressure control technology in order to ensure the best operative mode for the whole machine.
9. Failure alarm automation and modular construction makes easy repair.
Technical Parameter
| Model | S1 | S2 | S3 | S4 | S5 | S6 | S7 | S8 | S10 | S12 |
| Capacity(t/h) | 0.8~2.0 | 1.2~2.5 | 1.5~3 | 3~6 | 4~7 | 5~8 | 6~10 | 7~11 | 7~15 | 10~18 |
|
Voltage (V) |
AC220V 50/60Hz | AC220V 50/60Hz | AC220V 50/60Hz | AC220V 50/60Hz | AC220V 50/60Hz | AC220V 50/60Hz | AC220V 50/60Hz | AC220V 50/60Hz | AC220V 50/60Hz | AC220V 50/60Hz |
| Power(KW) | ﹤1.5 | ﹤2 | ﹤2.4 | ﹤2.6 | ﹤3.0 | ﹤3.6 | ﹤4.0 | ﹤4.6 | ﹤5.5 | ﹤7.0 |
|
Air pressure (Mpa) |
0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
|
Dimension (mm) |
910* 1620*1550 |
1220* 1615*1550 |
1628* 1595*2040 |
1870* 1595*2040 |
2210* 1595*2040 |
2528* 1595*2040 |
2836* 1595*2040 |
3152* 1595*2040 |
3910* 1595*2040 |
4594* 1595*2100 |
| Weight (Kg) | 350 | 500 | 800 | 1000 | 1250 | 1400 | 1600 | 1800 | 2250 | 2700 |
Sorting example
Packing & Delivery
Size:1220*1620*1550mm
Weight:500(±5%)kg
Packaging Details:The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
Our Service
1. The company persists in the “Service is Available at Any Time” guidelines, advocates all staffs to pay close attention to the customer demands at any time, and endeavors to provide the solutions for the domestic and overseas customers.
2. At present, the company has more than 30 after-sales service staffs, who offer the service extending to the prefecture level, contact the customers directly, provide the timely, rapid and considerate service for the customers, and realize the door-to-door service within 72 hours.
3. Carry out one-year free maintenance and care of the complete machine for the customers, provide the professional training and technical guidance timely to solve the worries of the customers, and reflect the service mode of fast response, imely maintenance and tracking coordination fully.
