5400 Pixel Ccd Camera 4 Chutes 2.6kw Power Rice Ccd Color Separator Hd Full Color

Basic Information
Place of Origin: China
Brand Name: Hons+
Certification: ISO/SGS/CE
Model Number: 6SXM-252
Minimum Order Quantity: 1 Set
Packaging Details: Wooden Case
Delivery Time: 7 ~ 14 Days
Payment Terms: L/C, T/T
Supply Ability: 200 Sets Per Month
Detail Information
Type: S4 Capacity: 3.0~6.0 T/H
Voltage: AC220V/50HZ Power: 2.6Kw
Size: L 1870mm * W 1595mm * H 2040mm Weight: 1000Kgs (+/-5%)
High Light:

5400 Pixel CCD Color Separator

,

4 Chutes CCD Color Sorter

,

HD full color CCD Color Separator


Product Description

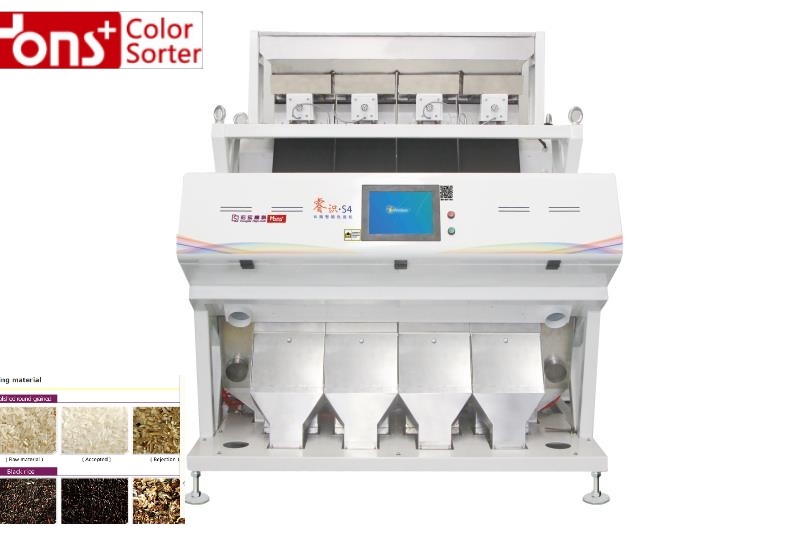

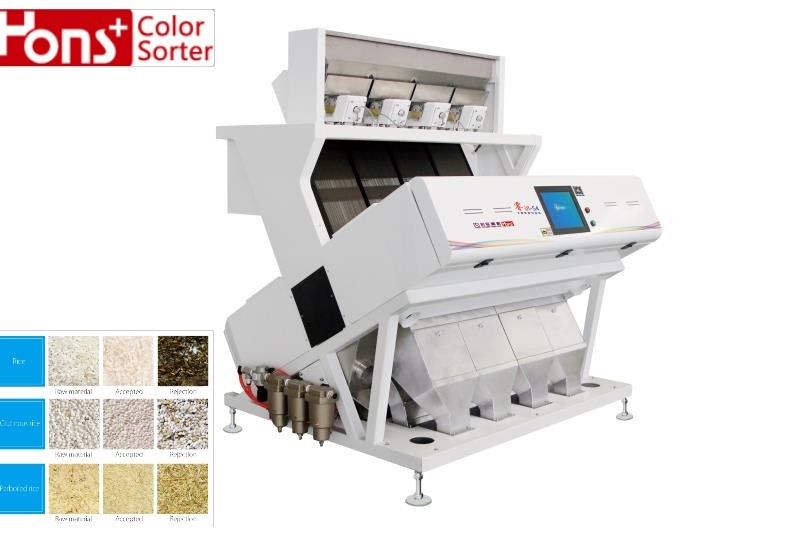

5400 Pixel CCD Camera 4 Chutes 2.6Kw Power Rice CCD Color Separator



Characteristics
1. High-quality distinction system,adopting HD full color 5400+PX CCD image sensor that reach the aim of distinguishing 0.1mm are of object.
2. The sorter adopts high quality Nikon special industrial lenses designed and manufactured for color sorting .
3.Image processing system,adopting the chips of FPGA and DSP from companies of ALTER and TI.
4.The forth generation processor technology of EPGA which sharply promoted the processing speed.
5. Master control system adopts ARM high-end embedded processor, effectively enhance control speed and color selection precision.
5. Special cleaning and dust absorption device provide a better environment for the equipment.
6. Intelligence operation surface,overall upgrade (10-inch ) capacitive touch screen proved the zooming and sliding function,easy test and operation,multiple sorting modes make you operating easier.
7. Original creative high frequency solenoid valve,with the national patent certification,operating reached 12 billion times makes the solenoid valve is not a quick-wear part anymore;respond rapidly,lower air-consumption.
8. Overall new chute design,specoal technology chute makes material transfer more steady and output increased 20%-30%,meanwhile, we also could provide plate-type and slot-type for meeting the various demands.
9. Adjustable ligh source technology,the overall upgrade LED light source could adjust the outpit power of ligh source according to those different materials,ensure the accurate obtaining of materials's information;LED lighting system with radiating function makes it in longer using,lower energy consumption and better performance.



CCD color sorter machine parameters

Channels
252
Sorting Accuracy(%):
≥99.9
Carryover Rate(bad:good):
≥12:1
Voltage:
220V/50Hz
Capacity(kg/h): 1000kg-1500kg
Weight(kg): 1000kg
Diamension/Size (L*W*H)mm 1870*1595*2040
Package:
Wooden Case



Sorting Result

5400 Pixel Ccd Camera 4 Chutes 2.6kw Power Rice Ccd Color Separator Hd Full Color 0



5400 Pixel Ccd Camera 4 Chutes 2.6kw Power Rice Ccd Color Separator Hd Full Color 1

About us

1. The leading photoelectric detection and classification equipment supplier in China.

2. We supply optic detection and classificationequipment as rice color sorting machine, grain color sorting machine, grain colorsorting machine,tea color sorting machine,belt color sorting machine ect,And also offer the effective fast solution for relative industry.

3.Hons+ brand series product have been popular both in domastic and oversea market many years, we have exported over than 45countries with high praise from customers.

5400 Pixel Ccd Camera 4 Chutes 2.6kw Power Rice Ccd Color Separator Hd Full Color 2

5400 Pixel Ccd Camera 4 Chutes 2.6kw Power Rice Ccd Color Separator Hd Full Color 3

5400 Pixel Ccd Camera 4 Chutes 2.6kw Power Rice Ccd Color Separator Hd Full Color 4
