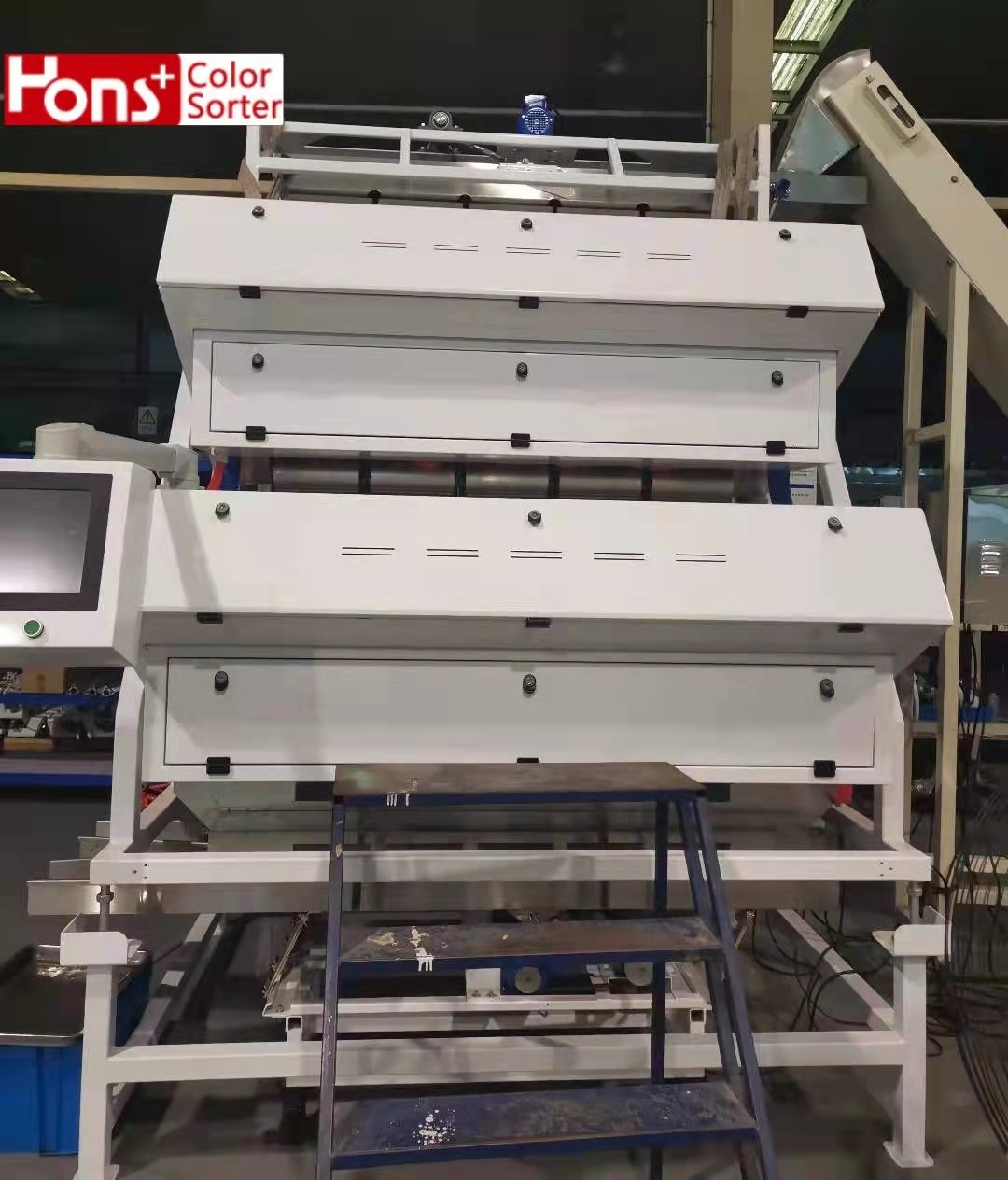

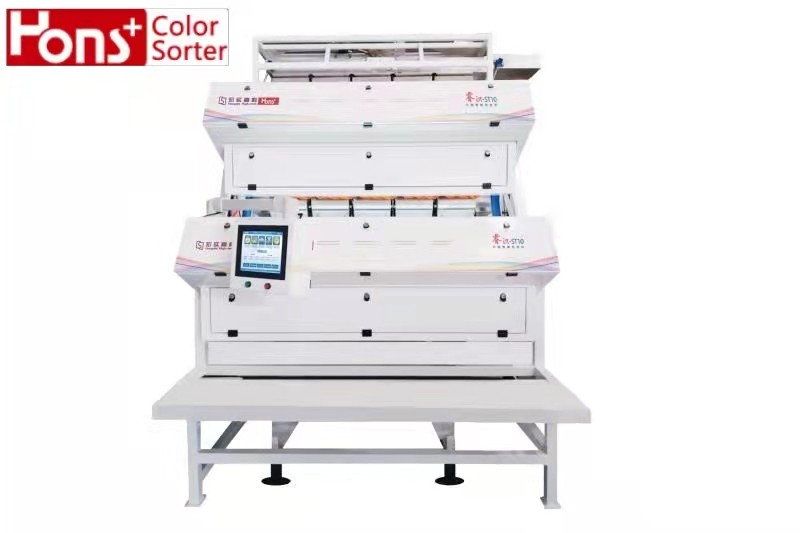

54 Million Pixel Double Layer Tea Color Sorter For Dry Food Separator Machine

Basic Information
Place of Origin: Anhui,China
Brand Name: Hons+
Certification: ISO9001,SGS,CE
Model Number: ST10
Minimum Order Quantity: 1 unit
Price: $9000-$18000
Packaging Details: wooden case
Delivery Time: 10-15 work days
Payment Terms: T/T, L/C
Supply Ability: 800sets per year
Detail Information
Model: 6CSX-480S(CCD) Capacity(T/h): 1.0~2.0
Power(Kw): ≤4.0 Weight(Kg): 1800(±5%)
Dimension(L/W/H Mm): 2850*1595*2550 Voltage(V): AC220V/50Hz
Color: White Application: Sorting
Product Name: Tea Color Sorter
High Light:

Tea Dry Food Separator Machine

,

Double Layer Food Separator Machine

,

Dry Food Tea Color Sorter


Product Description

54 Million Pixel Double Layer Tea Color Sorter For Dry Food Separator Machine

Product Application
Hons+ ST10 color sorter is a granular material equipment with double side identification and two times sorting function.It adopts imported high sensitivity of 5400 pixels CCD sensor,Janpanese NIKON lens and high -speed FPGA control system and high-speed ejecor structure with colorful display touch screen for operation .It is kind of high tech products with light ,machine ,electric and gas which can automatically move out of discolored material accurately with high sorting accuracy ,high effciency,easy operration ,compact structure,beautiful design.the function is leading internatonal position,widely used in kinds of green tea,sea vegetables,green tea,oolong tea,black tea ,sea weed,onion pieces



Machine parameters

Brand Hons+
ITEM.NO ST10
chutes:1,V63 chnnels per chute,Total Channels: flat
Black and white camera, doubleside,total:2cameras 5400 pixel
Production Capacity( Per hour) 100KG/h
Color sorting accuracy 99% -99.9%
Host power(kw) ≤5.0
Power supply (Voltage/HZ) 220V/50HZ
Package wooden case
DIMENSION AND WEIGHT 2620*2620*3150MM,2000kg



Features:



1. Raw Material are put into the machine from its feeding hopper on the top.
2. Vibrated by vibration device and sliding along material chute into the zone of observation in sorting chamber through sensor and background plate .
3. Under the effect of light source, CCD sensor receives compound light from materials being sorted.
4. According to the light intensity and color changes, make the system produce output signal and drive solenoid valve to work ,ejecting the discolor grain to defect chamber and good materials continue to fall into the finished goods chamber.

5.New machine model design with more stable operation, increase accuracy and reduce breakage rate.
6.High corrosin resistance exterior design,durable and attractive.



Sorting performance

54 Million Pixel Double Layer Tea Color Sorter For Dry Food Separator Machine 0

54 Million Pixel Double Layer Tea Color Sorter For Dry Food Separator Machine 1

54 Million Pixel Double Layer Tea Color Sorter For Dry Food Separator Machine 2



Our Service
1. The company persists in the “Service is Available at Any Time” guidelines, advocates all staffs to pay close attention to the customer demands at any time, and endeavors to provide the solutions for the domestic and overseas customers.
2. At present, the company has more than 30 after-sales service staffs, who offer the service extending to the prefecture level, contact the customers directly, provide the timely, rapid and considerate service for the customers, and realize the door-to-door service within 72 hours.
3. Carry out one-year free maintenance and care of the complete machine for the customers, provide the professional training and technical guidance timely to solve the worries of the customers, and reflect the service mode of fast response, imely maintenance and tracking coordination fully.



About us

About us
1. The leading photoelectric detection and classification equipment supplier in China.
2. We supply optic detection and classificationequipment as rice color sorting machine, grain color sorting machine, grain colorsorting machine,tea color sorting machine,belt color sorting machine ect,And also offer the effective fast solution for relative industry.
3. Hons+ brand series product have been popular both in domastic and oversea market many years, we have exported over than 45countries with high praise from customers.

54 Million Pixel Double Layer Tea Color Sorter For Dry Food Separator Machine 3

54 Million Pixel Double Layer Tea Color Sorter For Dry Food Separator Machine 4
