| Place of Origin: | China |
|---|---|
| Brand Name: | Hons+ |
| Certification: | ISO/SGS/CE |
| Model Number: | 6SXM-252 |
| Minimum Order Quantity: | 1 Set |
| Price: | $12000-$14500 |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7 ~ 14 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200 Sets Per Month |
| Type: | S4 | Capacity: | 3.0~6.0 T/H |
|---|---|---|---|
| Voltage: | AC220V/50HZ | Power: | 2.6Kw |
| Size: | L 1870mm * W 1595mm * H 2040mm | Weight: | 1000Kgs (+/-5%) |
| High Light: | 4 Chutes Agricultural Color Separator,CCD Camera Rice Color Separator,4 Chutes Rice Color Separator |
||

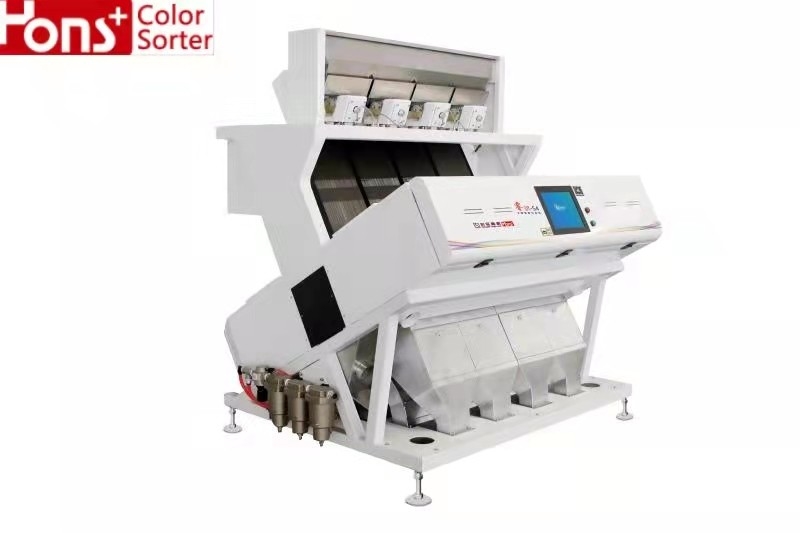

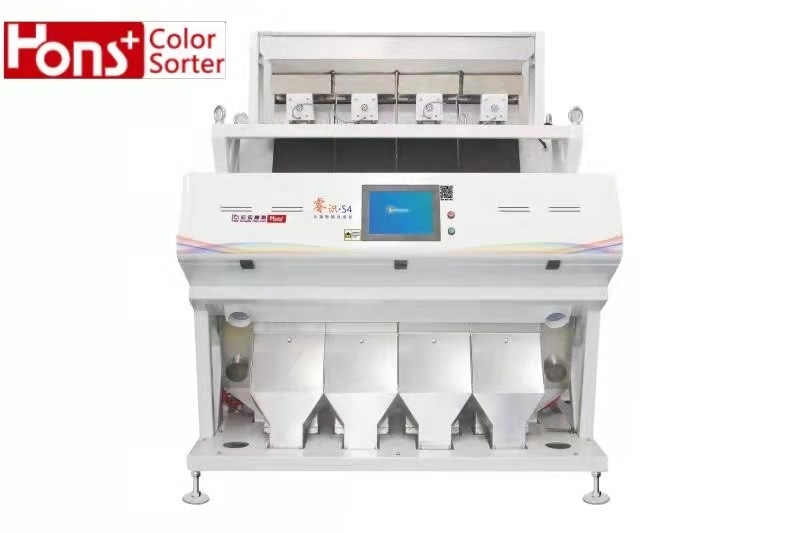

Agricultural Food CCD Camera 4 Chutes 2.6Kw Power Rice CCD Color Separator
Characteristics
1. Adopt PHOTO-SENSOR double-side color sorting technology; The specialized image acquisition and processing system computers and processes the spectral parameter and the feature of the image in high speed; Adopt bus structure, with higher signal consistency and capability of resisting disturbance, better stability, and simpler structure;
2. Adopt mainstream high-density high-capacity scene programmable logic device, with higher integration level, more easier upgrading of software and hardware; Flexible sorting modes setting available for different raw materials to meet the demands of sorting discolor, discolor reverse, milky, milky reverse, milky & yellow; Accurately distinguish tiny rice macula and light yellow color shading;
3. Adopt real color display; Equipped with high-reliability four-wire resistance touch screen; Correct location of touch screen at any time; User-friendly operation interface; Simple and easy to operate;
4. Perfect self-inspection function realizes real-time tracking and malfunction indication of spray valve system, working pressure, constant temperature system and illumination system.
Product Description
CCD color sorter machine parameters
|
Channels
|
252 |
|
Sorting Accuracy(%):
|
≥99.9 |
|
Carryover Rate(bad:good):
|
≥12:1 |
|
Voltage:
|
220V/50Hz |
| Capacity(kg/h): | 1000kg-1500kg |
| Weight(kg): | 1000kg |
| Diamension/Size (L*W*H)mm | 1870*1595*2040 |
| Package: |
Wooden Case
|
Applied materials
Cereals:rice,millet,parboil rice,black rice,red rice,brown rice,thai rice,glutinous rice.
Grains:peanut, corn,sesame,oat.
Beans:red beens,kidney beans,coffee bean,black beans,mung beans.
Nuts:walnut kernel,apricot kernel,sunflower seeds,almond,watermelon seed,macadamia nut.
Industries:plastic,electronic component,industrial salt,quartz sand
Others:tea,raisins,wolfberry,pepper.
Sorting Result
About us
1. The leading photoelectric detection and classification equipment supplier in China.
2. We supply optic detection and classificationequipment as rice color sorting machine, grain color sorting machine, grain colorsorting machine,tea color sorting machine,belt color sorting machine ect,And also offer the effective fast solution for relative industry.
3.Hons+ brand series product have been popular both in domastic and oversea market many years, we have exported over than 45countries with high praise from customers.
