Type: | S1 | Capacity: | 0.1~0.2T/H |
---|---|---|---|
Voltage: | AC220V/50HZ | Power: | <=1.5KW |
Size: | L 910mm * W 1620mm * H 1550mm | Weight: | 350KGS(+/-5%) |
High Light: | Quinoa Color Separator Machine,CCD Color Separator Machine,Mini Type CCD Color Sorter |

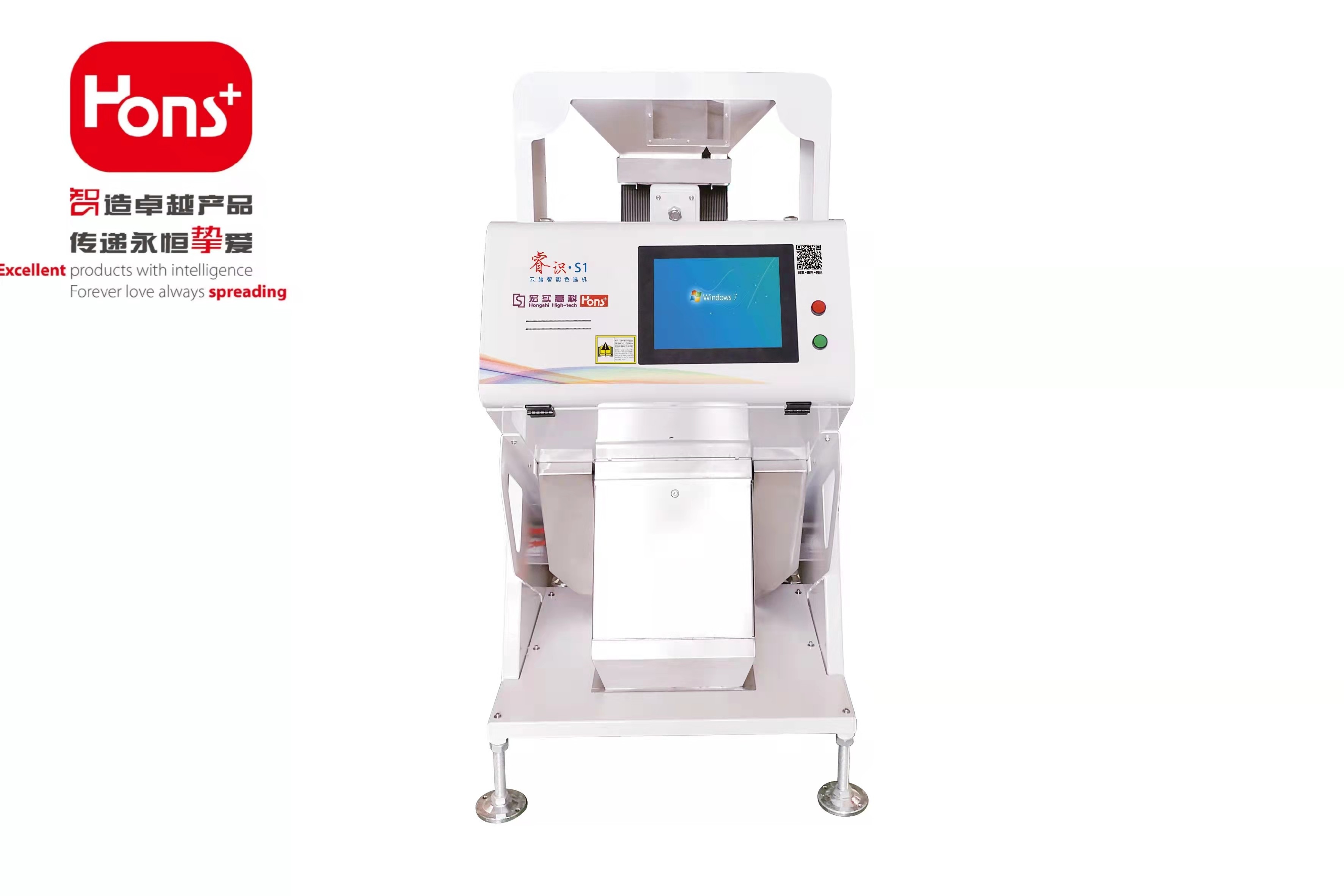

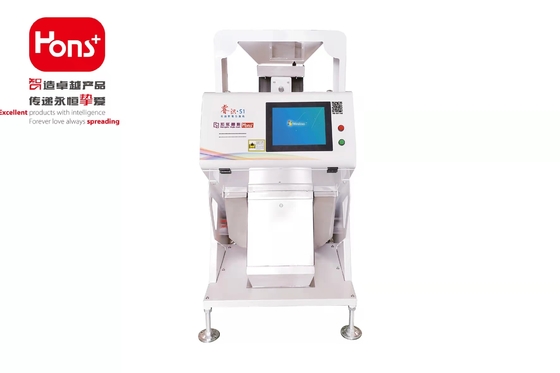

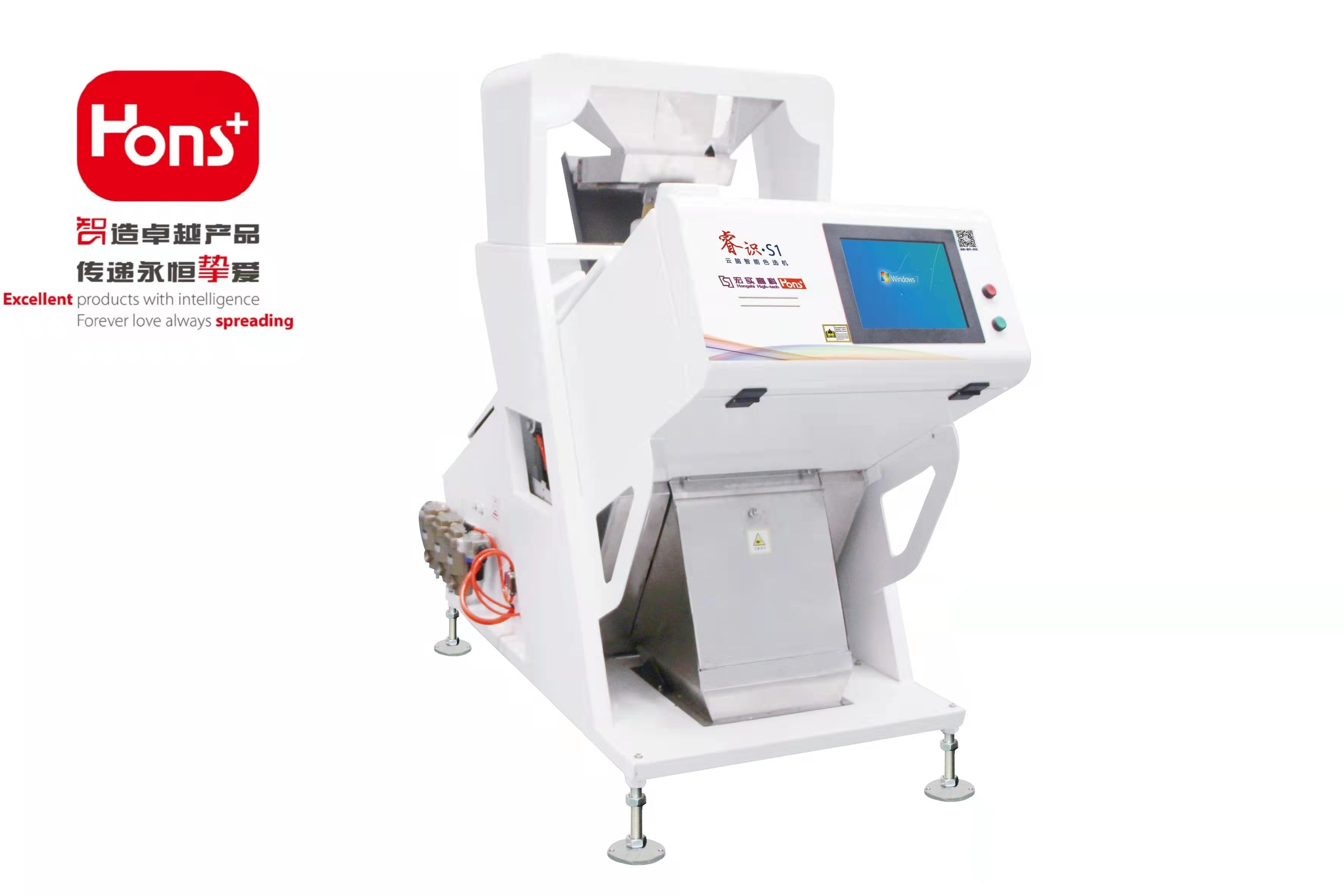

Mini Type Power 1.5Kw Quinoa CCD Color Separator Machine
Machine features
1. The color sorter uses 5400+ high performances CCD sensors with resolution up 0.1mm.
2. The sorter adopts high quality special industrial lenses designed and manufactured for color sorting.
3. The high speed FPGA technology signal processor with fast detection and high identification rate.
4. Overall unit adopts intelligent closed-loop control.
5. Simple parameters setting and esay operation.
6. High speed air value is used to ensure quick response, low power consumption and long service life.
7. Sorters use intelligent temperature and air pressure control technology in order to ensure the best operative mode for the whole machine.
8. Failure alarm automation and modular construction makes easy repair.
CCD color sorter machine parameters
Name |
S1 | S3 | S5 | S7 |
Model | 6SXM-63 | 6SXM-189 | 6SXM-315 | 6SXM-441 |
Capacity(Kg/H) | 800Kg-1000Kg | 2000Kg-3000Kg | 3000Kg-4000Kg | 5000Kg-6000Kg |
Voltage(V) | AC220V/50HZ | AC220V/50HZ | AC220V/50HZ | AC220V/50HZ |
POWER(KW) | <1.5 | <2.4 | <3.0 | <4.0 |
Weight(KG) | 350Kg | 800Kg | 1250Kg | 1600Kg |
Dimension(L*W*H/MM) | 910*1620*1550 | 1628*1595*2040 | 2210*1595*2010 | 2836*1595*1850 |
Air Consumption | 0.9 m³/min | 1.8m³/min | 1.8 m³/min |
3 m³/min |
Air pressure | 0.6-0.8mpa | 0.6-0.8mpa | 0.6-0.8mpa | 0.6-0.8mpa |
Air compressor power | 4kw | 7.5Kw | 11kw*2 | 15kw*2 |
Air tank | 600L | 1000L | 1000L | |
Cooling Model | wind cooling | wind cooling | wind cooling | wind cooling |
Mini Resolution( mm²) | 0.03 | 0.03 | 0.03 | 0.03 |
Applied materials
