| Place of Origin: | China |
|---|---|
| Brand Name: | Hons+ |
| Certification: | ISO/SGS/CE |
| Model Number: | S3 |
| Minimum Order Quantity: | 1 set |
| Price: | $9500-$13500 |
| Packaging Details: | Wooden case |
| Delivery Time: | 5-8 worker days |
| Payment Terms: | L/C, D/P, D/A, T/T |
| Supply Ability: | 500sets/month |
| Capacity(T/h): | 1.0-2.0 | Voltage(V): | AC220V/50Hz |
|---|---|---|---|
| Power（Kw）: | 2.4 | Weight(Kg): | 800 |
| Dimension(L*W*Hmm): | 1628*1595*2040 | Light Source: | LED |
| Applied Materials: | Rice/Beans/Peanut/Walnut | Chute/Channels: | 3Chutes/189Channels |
| High Light: | Cashew Nut Sorting Machine Multiple Function,CCD Cashew Nut Sorting Machine,cashew nut color sorter Multiple Function |
||

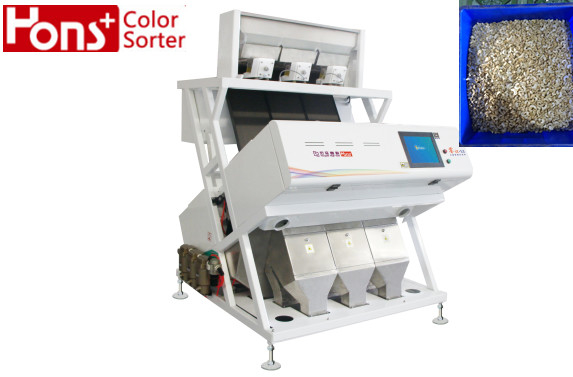

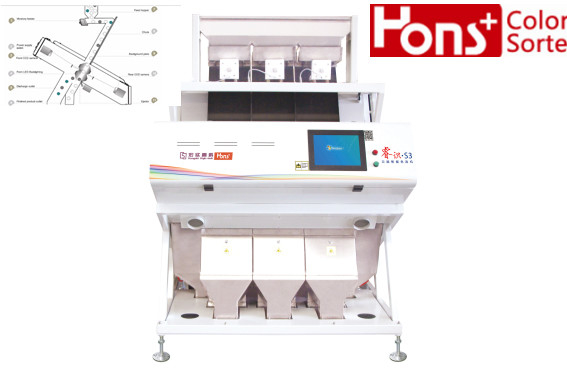

Multiple Function CCD Camera Cashew Nut Color Sorting Separator Machine
Product Features:
High definition imaging, Nikon CCD camera
Ultra-clear imaging, good resolution, good color reproduction, and no distortion.
International honor brand Weinview touch screen
Rapid response, high sensitivity, reliability and easy operation.
High Brightness LED Resources
High brightness, low power consumption, long life, reliable.
High frequency solenoid valve
Special for color sorting, high frequency, low power consumption and high sorting accuracy.
Advanced operating system
Widely used for high-precision sorting of beans, nuts, seeds, peanuts, small nuts, seafood, calves, spices and other materials.
CCD color sorter machine parameters
| Name | S1 | S3 | S5 | S7 |
| Model | 6SXM-63 | 6SXM-189 | 6SXM-315 | 6SXM-441 |
| Capacity(Kg/H) | 800Kg-1000Kg | 2000Kg-3000Kg | 3000Kg-4000Kg | 5000Kg-6000Kg |
| Voltage(V) | AC220V/50HZ | AC220V/50HZ | AC220V/50HZ | AC220V/50HZ |
| POWER(KW) | <1.5 | <2.4 | <3.0 | <4.0 |
| Weight(KG) | 350Kg | 800Kg | 1250Kg | 1600Kg |
| Dimension(L*W*H/MM) | 910*1620*1550 | 1628*1595*2040 | 2210*1595*2010 | 2836*1595*1850 |
| Air Consumption | 0.9 m³/min | 1.8m³/min | 1.8 m³/min |
3 m³/min |
| Air pressure | 0.6-0.8mpa | 0.6-0.8mpa | 0.6-0.8mpa | 0.6-0.8mpa |
| Air compressor power | 4kw | 7.5Kw | 11kw*2 | 15kw*2 |
| Air tank | 600L | 1000L | 1000L | |
| Cooling Model | wind cooling | wind cooling | wind cooling | wind cooling |
| Mini Resolution( mm²) | 0.03 | 0.03 | 0.03 | 0.03 |
Sorting materials
1. Beans: soybeans, mung beans, red beans, coffee beans,chickpea,red lentils
2. Rice: white rice, parbouled rice,black rice, yellow rice, brown rice, barley rice
3. Nuts: peanuts, ground nut,cashew nut, walnut meat,pine
4. Wheat: Buckwheat,Quinoa,Qatmeal.
5. Vegetable: dry onion,daylily,back fungus,sea vegetables
6. Food: vegetable seeds, cumin seeds,prickly ash seeds,dried shrimps,small shrimp
7. Industrial: plastic, broken glass,quaze,ore,scrap metal,slag,salt,refractory
Sorting performance
FAQ
1. How many days for production? In general,within8-12workers days after getting deposit payment. 2. Are you a trading company or a factory,will it be cheaper to buy from your side? More than 15 years of professional manufacturing experience, more than 10years exporting experience overseas,more reliable quality,more timely service. The same quality, more favorable price. 3. Do you provide product installation,training and after-sales service? Most products can be installed and trained through online video and text mode.If special products need to be installed on site,we will arrange technicians to install and debug on site. 4. We are small buyer , can we buy your products locally , do you have local agents? If you need to buy locally ,please tell us your region name,we can recommend the most suitable local dealer for you. About us 1. More than 10 years of experience focusing on sorters. One of the most advanced manufacturers in Hefei, Anhui. 2. After-sales service guarantee: We have a professional after-sales service team, one-to-one customer service to help customers install and debug. 3. We have service stations in Southeast Asia and cooperative distributors in more than 50 countries. 4. Raw material quality assurance: The raw materials we purchase are all certified qualified products. 5. Quality process assurance: We have passed the authorization of CE and ISO quality management systems, and each production process is strictly carried out in accordance with the standards. 6. System test: Our technical engineers check the product performance, and even each component undergoes strict aging test to ensure that the factory products fully meet customer requirements. 7. Delivery guarantee: We have a professional packaging operation team and independent export qualifications to ensure that the products are delivered to customers safely and stably.
