| Place of Origin: | China |
|---|---|
| Brand Name: | Hons+ |
| Certification: | ISO/SGS/CE |
| Model Number: | S3 |
| Minimum Order Quantity: | 1 set |
| Price: | $9500-$13500 |
| Packaging Details: | Wooden case |
| Delivery Time: | 5-8 worker days |
| Payment Terms: | L/C, D/P, D/A, T/T |
| Supply Ability: | 500sets/month |
| Capacity(T/h): | 1.0-2.0 | Voltage(V): | AC220V/50Hz |
|---|---|---|---|
| Power（Kw）: | 2.4 | Weight(Kg): | 800 |
| Dimension(L*W*Hmm): | 1628*1595*2040 | Light Source: | LED |
| Applied Materials: | Rice/Beans/Peanut/Walnut | Chute/Channels: | 3Chutes/189Channels |
| High Light: | Coffee Bean Sorting Machine Intelligent,Nikon CCD Bean Sorting Machine,High Accuracy Bean Sorting Machine |
||

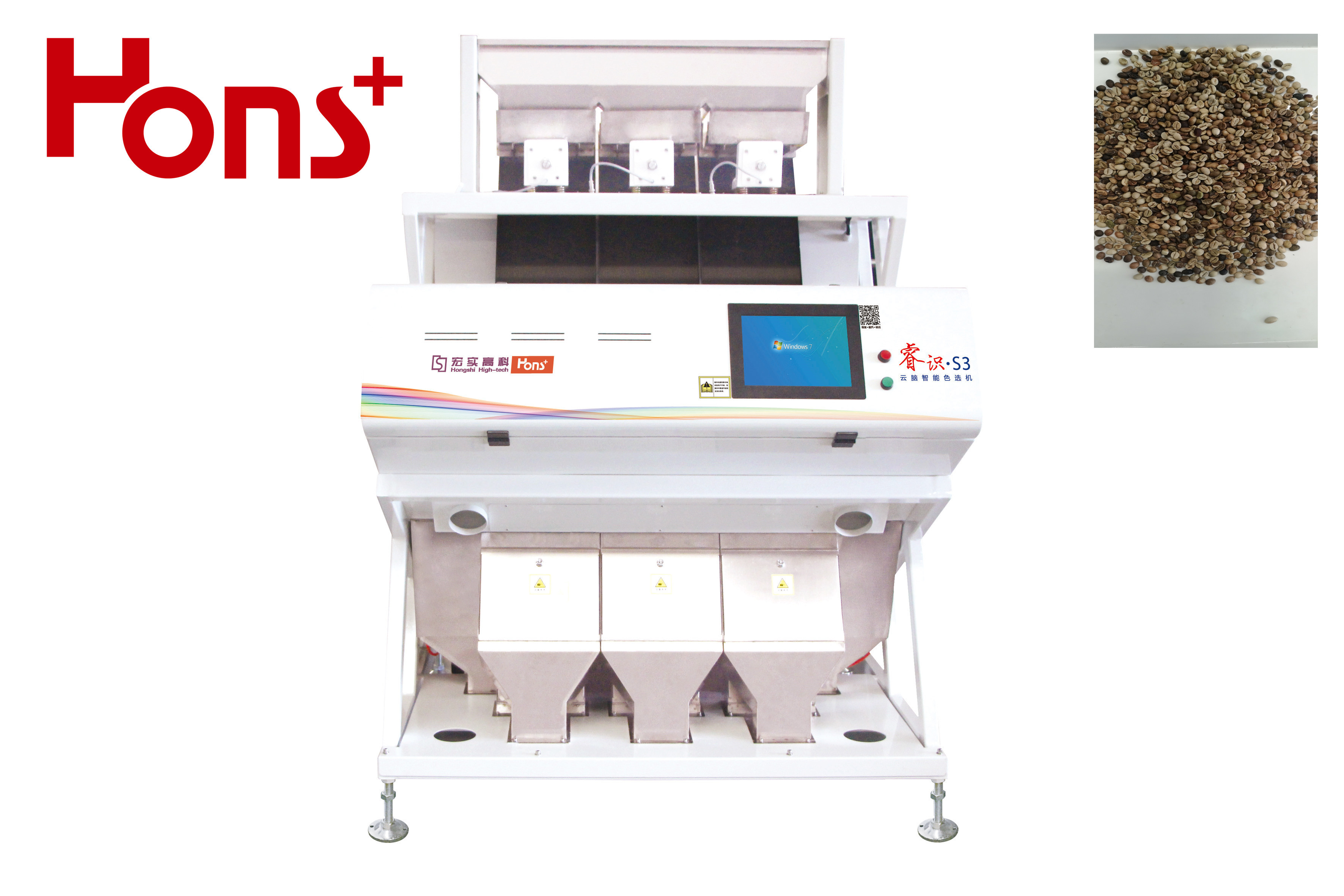

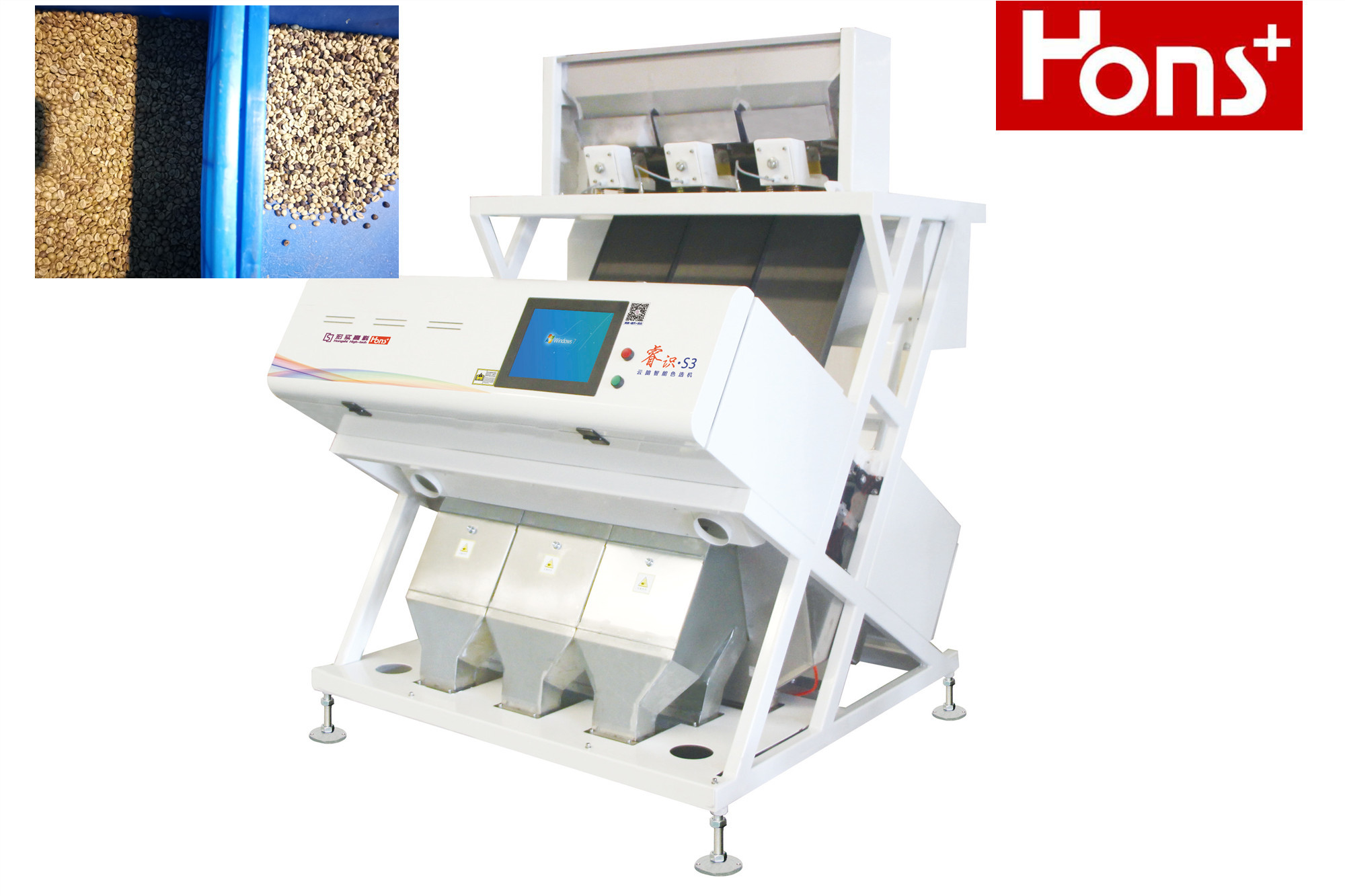

Intelligent High Accuracy Color Separator Machine Coffee Beans Sorting Machine
Product Features:
High definition imaging, Nikon CCD camera
Ultra-clear imaging, good resolution, good color reproduction, and no distortion.
International honor brand Weinview touch screen
Rapid response, high sensitivity, reliability and easy operation.
High Brightness LED Resources
High brightness, low power consumption, long life, reliable.
High frequency solenoid valve
Special for color sorting, high frequency, low power consumption and high sorting accuracy.
Advanced operating system
Widely used for high-precision sorting of beans, nuts, seeds, peanuts, small nuts, seafood, calves, spices and other materials.
CCD color sorter machine parameters
| Name | S1 | S3 | S5 | S7 |
| Model | 6SXM-63 | 6SXM-189 | 6SXM-315 | 6SXM-441 |
| Capacity(Kg/H) | 800Kg-1000Kg | 2000Kg-3000Kg | 3000Kg-4000Kg | 5000Kg-6000Kg |
| Voltage(V) | AC220V/50HZ | AC220V/50HZ | AC220V/50HZ | AC220V/50HZ |
| POWER(KW) | <1.5 | <2.4 | <3.0 | <4.0 |
| Weight(KG) | 350Kg | 800Kg | 1250Kg | 1600Kg |
| Dimension(L*W*H/MM) | 910*1620*1550 | 1628*1595*2040 | 2210*1595*2010 | 2836*1595*1850 |
| Air Consumption | 0.9 m³/min | 1.8m³/min | 1.8 m³/min |
3 m³/min |
| Air pressure | 0.6-0.8mpa | 0.6-0.8mpa | 0.6-0.8mpa | 0.6-0.8mpa |
| Air compressor power | 4kw | 7.5Kw | 11kw*2 | 15kw*2 |
| Air tank | 600L | 1000L | 1000L | |
| Cooling Model | wind cooling | wind cooling | wind cooling | wind cooling |
| Mini Resolution( mm²) | 0.03 | 0.03 | 0.03 | 0.03 |
Sorting materials
Rice: rice/brown rice/sticky rice/millet/sorghum/myotonin/black rice
Beans: kidney bean/soybean/mung/red bean/black bean/pea/ broad bean/coffee bean/lentil/chickpea
Tea: green tea/black tea/dark tea/white tea/ yellow tea
Cereals: corn/barley/wheat/oat/sesame/malt
Seeds: cotton seed/corn seed/wheat seed/pepper seed/onion seed
Nuts & Kernels: sunflower seed/pumpkin seed/watermelon seed/cashew nut/peanut/walnut/pistachio
Dehydrated Vegetables: pepper/garlic flake/carrot granule/onion/cabbage
Sorting performance
FAQ
1. How many days for production? In general,within8-12workers days after getting deposit payment. 2. Are you a trading company or a factory,will it be cheaper to buy from your side? More than 15 years of professional manufacturing experience, more than 10years exporting experience overseas,more reliable quality,more timely service. The same quality, more favorable price. 3. Do you provide product installation,training and after-sales service? Most products can be installed and trained through online video and text mode.If special products need to be installed on site,we will arrange technicians to install and debug on site. 4. We are small buyer , can we buy your products locally , do you have local agents? If you need to buy locally ,please tell us your region name,we can recommend the most suitable local dealer for you. About us 1. More than 10 years experience in sorting. One of the most advanced manufacturer of hefei in anhui. 2. After-sales service: we have a professional after-sales service team, one-on-one customer service to help clients installation and debugging. 3. We have service station in southeast Asia, have cooperation dealers in more than 50 countries. 4. The raw material quality assurance: we purchase of raw materials are all qualified products. 5. Process quality guarantee: we have passed the CE and ISO quality management system authorization, every production process in strict accordance with the standards. 6. The system test: our technical engineer to check the product performance, even each parts are through strict aging test, to ensure that products fully meet customer requirements. 7. Delivery guarantee: we have professional packaging operation team and independent export qualification, ensure security and stability of products sent to the hands of customers.
