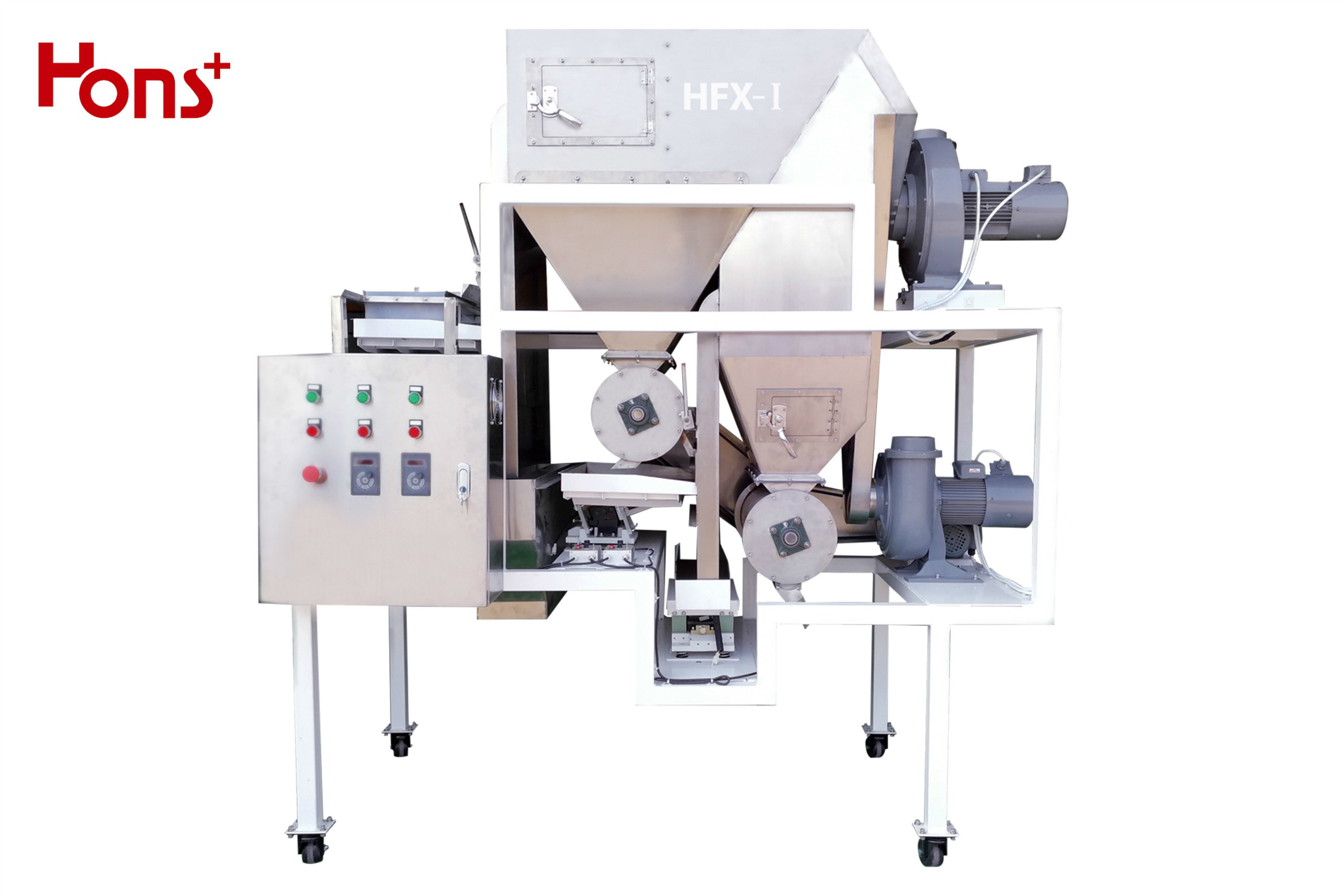

3.3Kw Vacuum Gravity CCD Color Sorter For Dry Sea Food Voltage 380V/50HZ

Basic Information
Place of Origin: China
Brand Name: Hons+
Certification: SO/SGS/CE
Model Number: HFX-I
Minimum Order Quantity: 1set
Price: $9000-$12000
Packaging Details: wood case
Delivery Time: 5-8worker days
Payment Terms: D/A, L/C, D/P, T/T
Supply Ability: 500sets/year
Detail Information
Capacity(kg/h): 100~150 Voltage(V): AC380V/50hz
Power(kw): 3.3 Weight(kg): 480
High Light:

Vacuum Gravity CCD Color Sorter

,

Sea Food CCD Color Sorter

,

Vacuum Gravity Food Color Sorter


Product Description

Products Description

3.3Kw Vacuum Gravity CCD Color Sorter  For Dry Sea Food Voltage 380V/50HZ 0

Used to select various crops seeds(such as seawweed products, traditional Chinese medicine, melon seeds, peanuts and other crops) and agricultural and sideline prodcuts by air and specific gravity.



Firstly,the materilas which transported to the feed hopper through the elevator are dispersed into the first atage box by first and second vibrators.By the air separation, the lightest impurities are collected by the first cyclone cleaner, the heaviest materials fall into second stage box by third and fourth vibrators, the heavier accept mateials will fall into the second outlet to be bagged randomly or enter the next processing flow ,the lighter material will flow out at the third outlet and be exported by the fifth vibrator.The lightest impurities in second air separation are collected from the second cyclone cleaner.



Machine parameters

Sorting Accuracy(%): ≥99.9
Carryover Rate(bad:good): ≥12:1
Capacity:(kg/hour) 100kg-300kg
Voltage: 380V/50Hz
Weight(kg): 480kg
Power(Kw) 3.3Kw
Diamension/Size (L*W*H)mm 2150*1200*2120
Package: Wooden Case
3.3Kw Vacuum Gravity CCD Color Sorter  For Dry Sea Food Voltage 380V/50HZ 1Sorting materials



Dry flower: rose, chrysanthemum, lily, gardenia



Dry food: onion chips, potato chips, carrots, cauliflower, agaric, Chinese prickly, ash geranyl, cabbage, round cardamom, dried chilli, hawthorn, octagon, pepper grains, ginger slice, lettuce, cumin



Sea food: seaweed, undaria pinnatifida, sargassum fusiforme,



Chinese medicine:fennel, clove, angelica dahurica

3.3Kw Vacuum Gravity CCD Color Sorter  For Dry Sea Food Voltage 380V/50HZ 2





3.3Kw Vacuum Gravity CCD Color Sorter  For Dry Sea Food Voltage 380V/50HZ 3



Why choose Hons+

1. Over 10 years experience which focus on sorter machine. One of the most advanced manufacturer in Hefei, Anhui.
2. After-Sales service guarantee: We have a professional after sales service team, one-to-one customer service to help customers install and debug.
3. We have service station over Southeast Asia, co-operate re-seller in more than 50 countries.
4. Quality assurance of raw materials: the raw material we purchase are certified qualified products.
5. Quality process assurance: We have been authorized by CE & ISO quality management system, each process of production are under strictly standard.
6. System test: Our technical engineers check the product performance, even every part is subjected to rigorous aging test to ensure that the factory products would being in full compliance with customer requirements.
7. Shipping guarantee: We have professional packaging operation team, independent export qualification to ensure product safety and stability to reach customers in the hands.

3.3Kw Vacuum Gravity CCD Color Sorter  For Dry Sea Food Voltage 380V/50HZ 4

3.3Kw Vacuum Gravity CCD Color Sorter  For Dry Sea Food Voltage 380V/50HZ 5
