Multi Function Color Sorting 5 Chutes 315 Chanels CCD Color Sorter Of 3.0KW Voltage AC220V/50HZ

Basic Information
Place of Origin: China
Brand Name: Hons+
Certification: ISO/SGS/CE
Model Number: 6SXM-315
Minimum Order Quantity: 1 Set
Packaging Details: Wooden Case
Delivery Time: 7 ~ 14 Days
Payment Terms: L/C, T/T
Supply Ability: 200 Sets Per Month
Detail Information
Type: S5 Capacity: 4.0 ~ 7.0T/H
Voltage: AC220V/50HZ Power: 3.0KW
Size: L 2210mm * W 1595mm * H 2040mm Weight: 1250KGS (+/-5%)

Product Description

Smart CCD Color Sorter With High Production Capacity





The Hons+ Color Sorter will remove foreign material (sticks, debris, stones), color defects (caused by disease, immaturity or moisture damage), splits, and undecorticated seed in Pulse Crops such as Lentils, Beans and Peas.

In Cereal Grains, we can remove all types of contaminants (sticks, hulls, stones), ergot, foreign material (i.e. wild oats), discoloured seeds, as well as immature and diseased kernels.



Research and development on the LED lighting systems with the world's top lighting manufacturers has taken color sorting to new levels. The advancement of a more optimized optical system integrated with the calibration systems in German professional camera applications, has allowed our equipment to achieve the highest signal/noise ratio and vastly improve the stability of color sorting.



The human interface of our machines is very easy to operate, enabling operators of all experience levels to test and use the color sorter.

Multilingual support provides all of our customers with improved support.



Our optimized processing method provides superior color selection and ensures that our products meet the most stringent industry requirements.



Characteristics



Ejector
Independent developed intelligent magnetic control
High-frequency ejector has no air leakage problem thanks to
The replacement of intelligent lever flexible return technology
For traditional pressure return technology.



Cloud Interconnection System
Thanks to AMD cloud service technical platform, remote control, operation, matainence, software
Upgrade can be achieved and it can detect and solve the LED light, electronical, mechanical and
Adjustment problems. It also can provide real-time online tracking service for the machine operation
Monitoring, data acquisition and online instruction.



One Key Intelligent Operation System
The users can set the area of the material color, shape, size and defect by themselves and confirm the rejected material, so the machine can automaticly set the sorting solution of the material according to the independent caculating, intelligent recognition and intelligent sorting principles with one key intelligent control technology.



Intelligent Visual Image Capture System
It can realize the visual dynamic image capture system by adopting the high resolution full color CCD sensor and begeye low distortion lens.



Inlelligent LED Light Control System
It can adjust the brightness of the LED automatically according to the material sorting requirements and enviroment changing due to advanced digital stepless automatic LED light adjustment technology. The best sorting performance will be achieved.

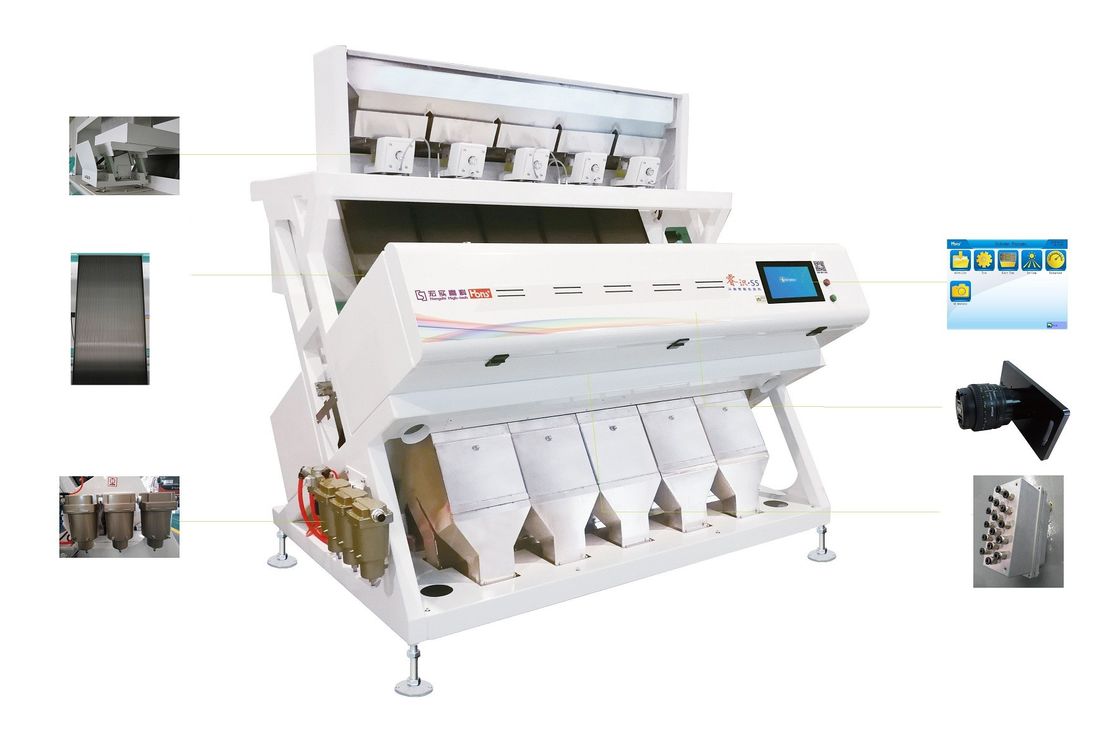

Main Components

1 CCD Sensor Toshiba Japan
2 Camera Nikon Japan
3 Ejector Matrix Italy
4 Air Filter Dayuan Korea
5 Operation System Windows America



Multi Function Color Sorting 5 Chutes 315 Chanels CCD Color Sorter Of 3.0KW Voltage AC220V/50HZ 0






Configuration Index

Item S-series Color Sorter Other Color Sorter
Capacity ★★★★★ ★★★★
Sorting Accuracy ★★★★★ ★★★★☆
Carryout Ratio ★★★★★ ★★★★☆
Multi-function  ★★★★★ ★★★★
Remote Control ● ● ● ● ● — — — —
Remote Upgrade — — — —
Remote Training — — — —
Shape Indentification — — — —
Effect Preview — — — —



Remark:

★ Functional Strength     ● Standard Configuration   — NULL

The parameter are datermined at room temperature 25℃ and impurity of 2% of raw material.



Sorting Result

Multi Function Color Sorting 5 Chutes 315 Chanels CCD Color Sorter Of 3.0KW Voltage AC220V/50HZ 1







Our Company

Multi Function Color Sorting 5 Chutes 315 Chanels CCD Color Sorter Of 3.0KW Voltage AC220V/50HZ 2

Multi Function Color Sorting 5 Chutes 315 Chanels CCD Color Sorter Of 3.0KW Voltage AC220V/50HZ 3

Multi Function Color Sorting 5 Chutes 315 Chanels CCD Color Sorter Of 3.0KW Voltage AC220V/50HZ 4
