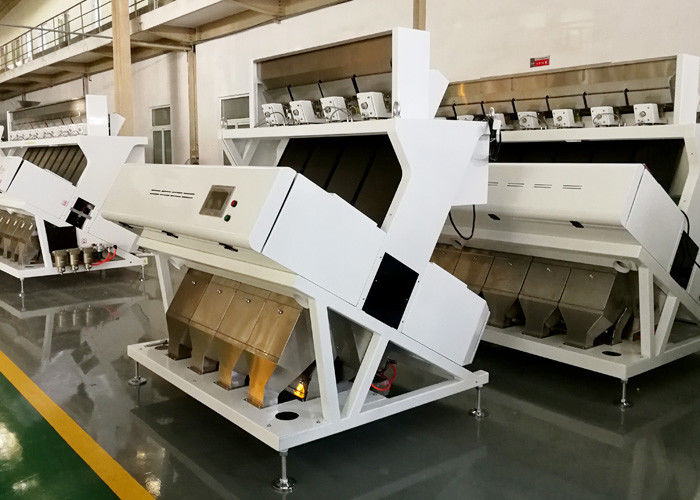

High Performance Grain Color Sorter Machine 4 Chute RGB For Camellia Seed

Basic Information
Place of Origin: Hefei, Anhui, China
Brand Name: Hons
Certification: CE、SGS、ISO9001
Model Number: S4
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Wood Packaging 1870*1620*1550
Delivery Time: 10-15 Work Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200Set/Sets Per Month
Detail Information
Model NO: 6SXZ-252(CCD) Capacity(T/h): 3.0~6.0
Voltage(V): AC220V/50Hz Power(Kw): ≤2.6
Weight(Kg): 2.6(±5%) Dimension(L*W*H Mm): 1870*1620*1550
Color: White&Green Channels: 4
Application: Sorting Product Name: Camellia Seed Color Sorter
Type: CCD Camera Pixels: 5400
High Light:

grain colour sorter


grain sorting machine

Product Description

High Performance Grain Color Sorter Machine 4 Chute RGB For Camellia Seed



Black Wolfberry Color SorterFeatures:

Cloud brain interconnection

1. Remote interconnection

Easy connection of touch screen and mobile devices, intelligent control to enjoy the wisdom of life

2. Remote diagnosis

Start-up self checking of system can achieve real-time monitoring of machine components, automatically judgement and troubleshooting to ensure the normal operation of color sorter.

3. Remote upgrade

Intelligent self checking system realizes one-key systemupgrade and provides the best operation experience

4. Remote training

A efficient and convenient real-time interactive training system developed independently, creating a non-distance service for users.


Cloud brain removal

1. High speed feeding system

Patented high-frequency vibrator and antioxidant anode treatment chute greatly increased productionby 20% ~ 30%compared with other competitors.

       2. Intelligent magnetic control high frequency solenoid valve

Independently developed intelligent magnetic control high frequency solenoid valve for color sorter. Immediately responsespeed for valves openinginsure sorting accuracy; quickly responsespeed for valves closing reduces the carryout ratio. Flexible contact of the valve plate makes service life of the valves extend to 60~100 million times, 10~30 billion times more compared with other competitors.

3. 360 degree cyclone suction

Intelligent 360-degree cyclone three-dimensional suction system can remove dust and light objects on glasses in front of the lens, reduce the frequency of wiping andextend the wiping interval to greatly improve the working efficiency of the color sorter.


Cloud brain vision

1. Intelligent image acquisition system

Automaticallycollecting hyper space data such as color, shape, size and defect to achieve accurateacquisition of raw material features,automatically judgment and precisely matching theoptimal sorting program to achieve autonomouscalculation, intelligentidentification, and intelligent sorting.

2. Intelligent image processing system

World's leading full-color high-speed scanning CCD sensor with scanning speed of 5400 points and acquisition frequency of 10K / S (54 million pixels + 10K camera); "color + shape" multi-line processing, perfect treatment of small defects in materials with minimum scanning area of 0.04 mm.

3. Intelligent control optical system

Intelligent LED shadow-less cold light source with industry-leading digital step-lesslight adjustment technology can select the best lighting brightness and coloraccording to selection requirements to get more accurate identification, lower energy consumption (15% ~ 20% lower than other competitors)and high stability.


Cloud brain data

1. Intelligent operation system

Firstly applied Windows 7 operating system in color sorter industrycan beupgraded to Windows 8 and Windows 10 according to different application.

2. Massive database and Multiple function.

Massive database with storage of unlimited modescan achieve multiple function of one machine. Single machine can be applied to rice, grains, cash crops and other applications, provide maximum value of product and best convenience of massive database for customer.

Technical Parameter

Model S1 S2 S3 S4 S5 S6 S7 S8 S10 S12
Capacity(t/h) 0.8~2.0 1.2~2.5 1.5~3 3~6 4~7 5~8 6~10 7~11 7~15 10~18



AC220V 50/60Hz AC220V 50/60Hz AC220V 50/60Hz AC220V 50/60Hz AC220V 50/60Hz AC220V 50/60Hz AC220V 50/60Hz AC220V 50/60Hz AC220V 50/60Hz AC220V 50/60Hz
Power(KW) ﹤1.5 ﹤2 ﹤2.4 ﹤2.6 ﹤3.0 ﹤3.6 ﹤4.0 ﹤4.6 ﹤5.5 ﹤7.0

Air pressure


0.6-0.8 0.6-0.8 0.6-0.8 0.6-0.8 0.6-0.8 0.6-0.8 0.6-0.8 0.6-0.8 0.6-0.8 0.6-0.8























Weight (Kg) 350 500 800 1000 1250 1400 1600 1800 2250 2700

















Sorting example


High Performance Grain Color Sorter Machine 4 Chute RGB For Camellia Seed 0

Camellia Seed Raw Material


High Performance Grain Color Sorter Machine 4 Chute RGB For Camellia Seed 1

Camellia Seed Accept


High Performance Grain Color Sorter Machine 4 Chute RGB For Camellia Seed 2

Camellia Seed Rejection

Packing & Delivery

Size: 1870*1620*1550


Packaging Details:The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.



Our Service
1. The company persists in the “Service is Available at Any Time” guidelines, advocates all staffs to pay close attention to the customer demands at any time, and endeavors to provide the solutions for the domestic and overseas customers.
2. At present, the company has more than 30 after-sales service staffs, who offer the service extending to the prefecture level, contact the customers directly, provide the timely, rapid and considerate service for the customers, and realize the door-to-door service within 72 hours.
3. Carry out one-year free maintenance and care of the complete machine for the customers, provide the professional training and technical guidance timely to solve the worries of the customers, and reflect the service mode of fast response, imely maintenance and tracking coordination fully.
