| Place of Origin: | China |
|---|---|
| Brand Name: | Hons+ |
| Certification: | SO/SGS/CE |
| Model Number: | HFX-I |
| Minimum Order Quantity: | 1set |
| Price: | $9000-$12000 |
| Packaging Details: | wood case |
| Delivery Time: | 5-8worker days |
| Payment Terms: | D/A, L/C, D/P, T/T |
| Supply Ability: | 500sets/year |
| Capacity(kg/h): | 100~300 | Voltage(V): | AC380V/50hz |
|---|---|---|---|
| Power(kw): | 2.7 | Weight(kg): | 400 |
| High Light: | Vacuum Gravity seeds color sorter,100kg/h seeds color sorter,100kg/h CCD Color Sorter |
||

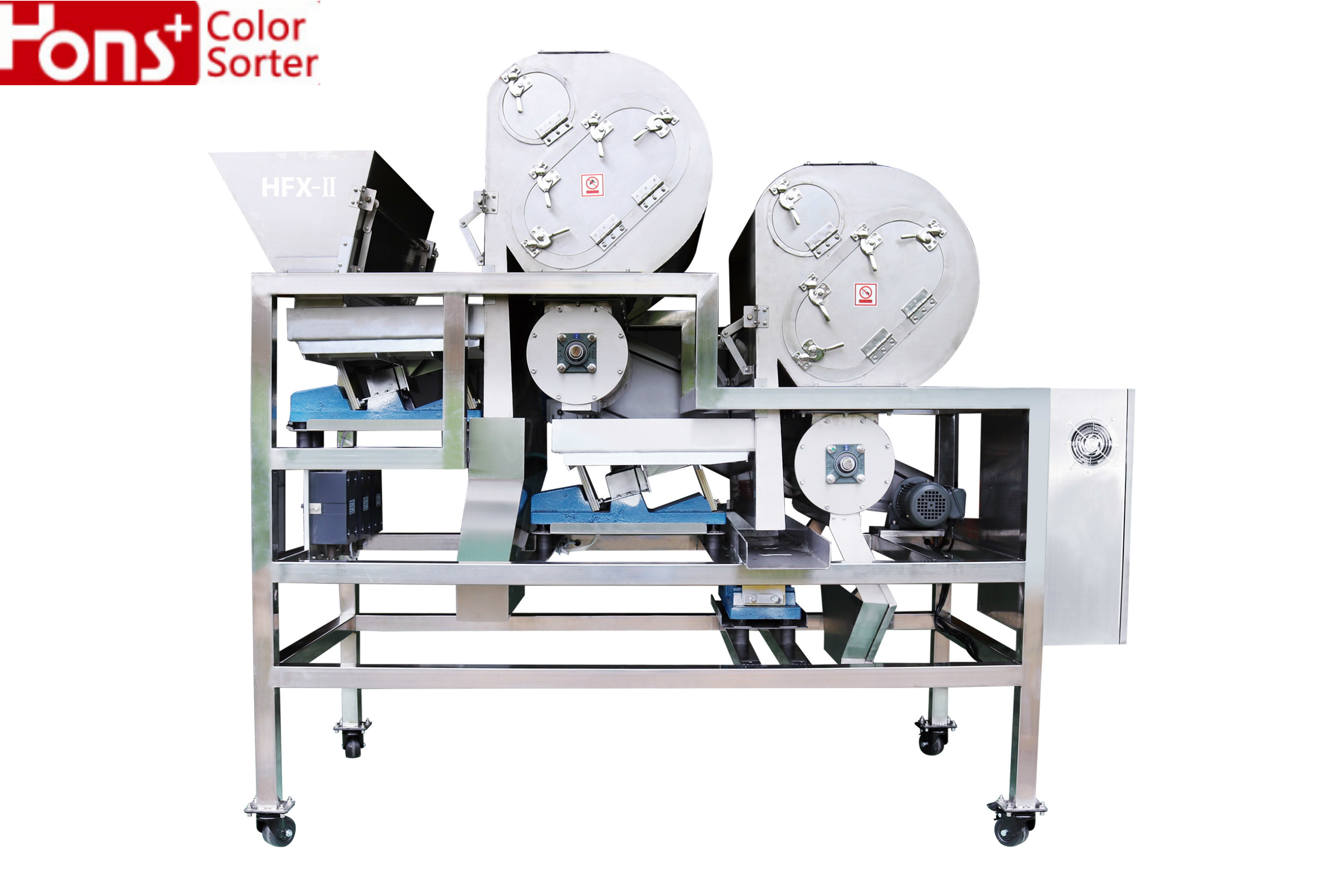

2.7Kw Vacuum Gravity Shrimp/Sea Weed CCD Color Sorter Voltage 380V/50HZ
Characteristic
ØN-grade air separation chamber design can do the selection of N + 1 material
ØThe adjustable function of near vacuum environment in the air separation cavity can realize the accurate separation of material
ØNarrow and long separation cavity, which can accurately collect the separated materials
ØDesign of light material collection, reduce the impact of light impurities on the following processing, and effectively solve the dusty problem in the customer site.
Products Description
Used to select various crops seeds(such as seawweed products, traditional Chinese medicine, melon seeds, peanuts and other crops) and agricultural and sideline prodcuts by air and specific gravity.
Firstly,the materilas which transported to the feed hopper through the elevator are dispersed into the first atage box by first and second vibrators.By the air separation, the lightest impurities are collected by the first cyclone cleaner, the heaviest materials fall into second stage box by third and fourth vibrators, the heavier accept mateials will fall into the second outlet to be bagged randomly or enter the next processing flow ,the lighter material will flow out at the third outlet and be exported by the fifth vibrator.The lightest impurities in second air separation are collected from the second cyclone cleaner.
Machine parameters
| Sorting Accuracy(%): | ≥99.9 |
| Carryover Rate(bad:good): | ≥12:1 |
| Capacity:(kg/hour) | 100kg-300kg |
| Voltage: | 380V/50Hz |
| Weight(kg): | 400kg |
| Power(Kw) | 3.3Kw |
| Diamension/Size (L*W*H)mm | 1850*1250*1915 |
| Package: | Wooden Case |

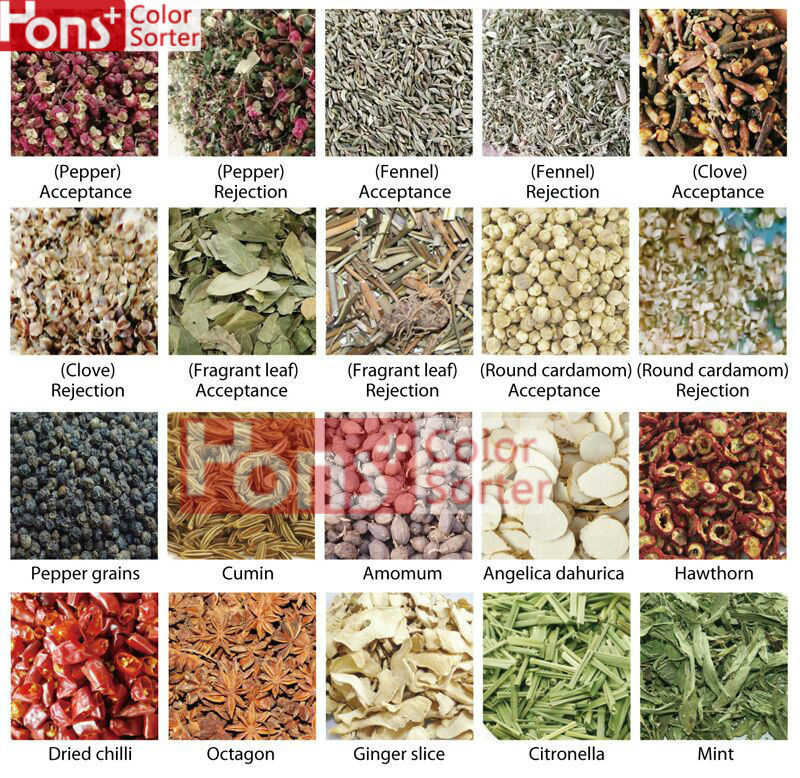

Sorting materials
Dry flower: rose, chrysanthemum, lily, gardenia
Dry food: onion chips, potato chips, carrots, cauliflower, agaric, Chinese prickly, ash geranyl, cabbage, round cardamom, dried chilli, hawthorn, octagon, pepper grains, ginger slice, lettuce, cumin
Sea food: seaweed, undaria pinnatifida, sargassum fusiforme,
Chinese medicine:fennel, clove, angelica dahurica
FAQ
1. How about the sample machines for testing?
Sample sending for testing is welcomed.
Or you send these three photos, the raw material, good material (which is you want) ,bad material (which is you want to discard).we send our video to you.
2. How about the guarantee period?
One year.
3. Will you accept L/C as payment?
L/C, T/T is OK .
Alibaba Trade Assurance is your best choice.
4.Do you have any other spare parts for the customer?
Yes,we will supply you some spare parts .
5.Which machine will work together with our color sorter which you can supply?
Air compressor ,Air tank ,Air filters,Air dryer , light sources, cleaning brushes, etc
