| Place of Origin: | China |
|---|---|
| Brand Name: | Hons+ |
| Certification: | ISO/SGS/CE |
| Model Number: | S7 |
| Minimum Order Quantity: | 1 set |
| Price: | $13500-$18000 |
| Packaging Details: | Wooden case |
| Delivery Time: | 5-8 worker days |
| Payment Terms: | L/C, D/P, D/A, T/T |
| Supply Ability: | 500sets/month |
| Power（Kw）: | 4.0 | Dimension(L*W*Hmm): | 2836*1595*2040 |
|---|---|---|---|
| Capacity(T/h): | 4.0t-5.0t | Voltage(V): | AC220V/50Hz |
| Weight(Kg): | 1600kg | Applicable Material: | Peanut/Rice/grain |
| Pixels: | 54 Million | Feature: | High Sensitivity |

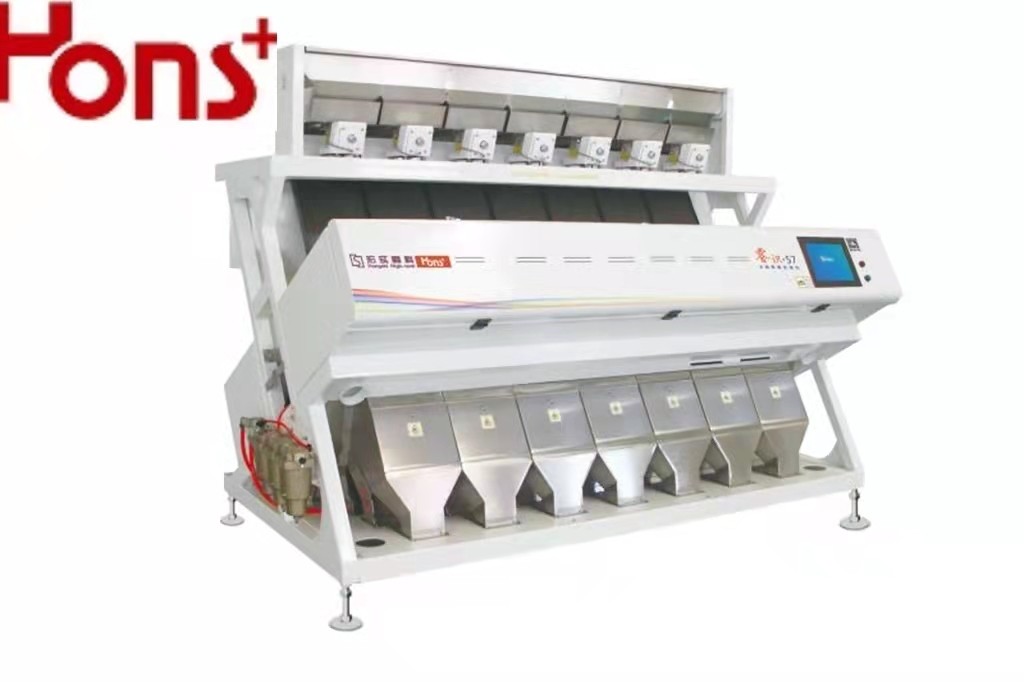

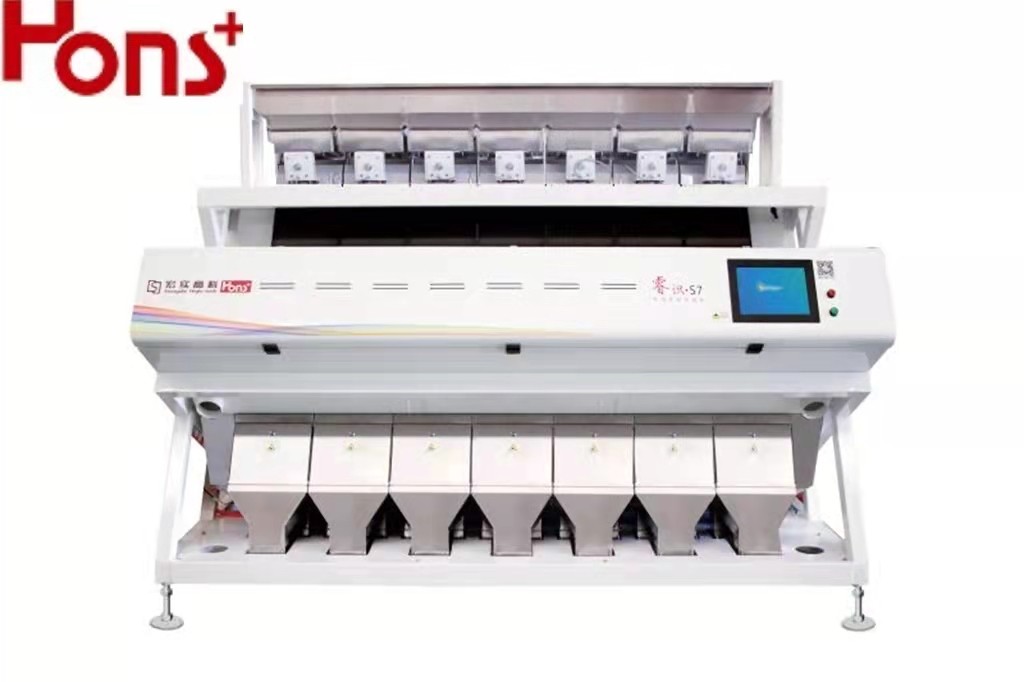

| Product Name: | CCD Color Sorter | ||
| High Light: | 5.0t Cashew nut color sorter,54 Million Cashew nut color sorter,multi light source color sorter |
||
1. Advanced optical design system, multi light source, wide visual adgle to lead to the best sorting performance.
2. High solution, sensitivity industrial chromatic 5400piexl CCD camera to catch thuy spot.
3. World class ejector, improve sorting accuracy, 1000times running per sec, high sorting accuracy, low carryover.
4. Customer can set sorting modle as want, and save 20 grouops different materials sorting data.
5. Touch screen more fast, easier to operate, and keep plug in advance for update software.
Technology parameters
Name |
S1 | S2 | S5 | S7 |
| Model | 6SXM-63 | 6SXM-126 | 6SXM-315 | 6SXM-441 |
| Capacity(Kg/H) | 300Kg-400Kg | 300Kg-800Kg | 1200Kg-1600Kg | 1500Kg-2400Kg |
| Voltage(V) | AC220V/50HZ | AC220V/50HZ | AC220V/50HZ | AC220V/50HZ |
| POWER(KW) | <1.5 | <2.0 | <3.0 | <4.0 |
| Weight(KG) | 350Kg | 500Kg | 1250Kg | 1600Kg |
| Dimension(L*W*H/MM) | 910*1620*1550 | 1220*1620*15500 | 2210*1595*2010 | 2836*1595*1850 |
| Air Consumption | 0.9 m³/min | 1.8m³/min | 1.8 m³/min |
3 m³/min |
| Air pressure | 0.6-0.8mpa | 0.6-0.8mpa | 0.6-0.8mpa | 0.6-0.8mpa |
| Air compressor power | 4kw | 5.5Kw | 11kw*2 | 15kw*2 |
| Air tank | 300L | 1000L | 1000L | |
| Cooling Model | wind cooling | wind cooling | wind cooling | wind cooling |
| Mini Resolution( mm²) | 0.03 | 0.03 | 0.03 | 0.03 |
1. Rice: white rice, parbouled rice, yellow rice, brown rice, barley rice
2. Beans: soybeans, mung beans, red beans, coffee beans
3. Nuts: peanuts, cashew nut, walnut meat,pine nuts
4. vegetables: dry onion,daylily,back fungus
5. Seeds: vegetable seeds, cumin seeds,prickly ash seeds
6. Industrial:plastic, broken glass,quaze,ore,scrap metal
Sorting performance
FAQ
1. How about engineers service oversea?
Engineers available to service machinery overseas.
2. How to use the machine?
We will supply customer the installation catalog or video online.
3. How about the sample machines for testing?
Sample sending for testing is welcomed.Or you send these three photos, the raw material, good material (which is you want) ,bad material (which is you want to discard).we send our video to you.
4. How about the guarantee period?
One year.
5. Will you accept L/C as payment?
L/C, T/T is OK .
Alibaba Trade Assurance is your best choice.
6.Do you have any other spare parts for the customer?
Yes,we will supply you some spare parts .
Why Choose Hons+:
1. Over 10 years experience which focus on sorter machine. One of the most advanced manufacturer in Hefei, Anhui.
2. After-Sales service guarantee: We have a professional after sales service team, one-to-one customer service to help customers install and debug.
3. We have service station over Southeast Asia, co-operate re-seller in more than 50 countries.
4. Quality assurance of raw materials: the raw material we purchase are certified qualified products.
5. Quality process assurance: We have been authorized by CE & ISO quality management system, each process of production are under strictly standard.
6. System test: Our technical engineers check the product performance, even every part is subjected to rigorous aging test to ensure that the factory products would being in full compliance with customer requirements.
7. Shipping guarantee: We have professional packaging operation team, independent export qualification to ensure product safety and stability to reach customers in the hands.
