| Place of Origin: | China |
|---|---|
| Brand Name: | Hons+ |
| Certification: | ISO/SGS/CE |
| Model Number: | S1 |
| Minimum Order Quantity: | 1 set |
| Price: | $6500-$9000 |
| Packaging Details: | Wooden case |
| Delivery Time: | 5-8 worker days |
| Payment Terms: | L/C, D/P, D/A, T/T |
| Supply Ability: | 500sets/month |
| Power（Kw）: | 1.5 | Dimension(L*W*Hmm): | 910*1620*1550 |
|---|---|---|---|
| Capacity(T/h): | 0.4t-0.8t | Voltage(V): | AC220V/50Hz |
| Weight(Kg): | 500 | Applicable Material: | Rice/Beans |
| Pixels: | 54 Million | Feature: | High Sensitivity |
| Product Name: | CCD Color Sorter | ||
| High Light: | Remote Control CCD Camera Color Sorter,CCD Color Sorter High Accuracy,Remote Control Rice Sorting Machine |
||

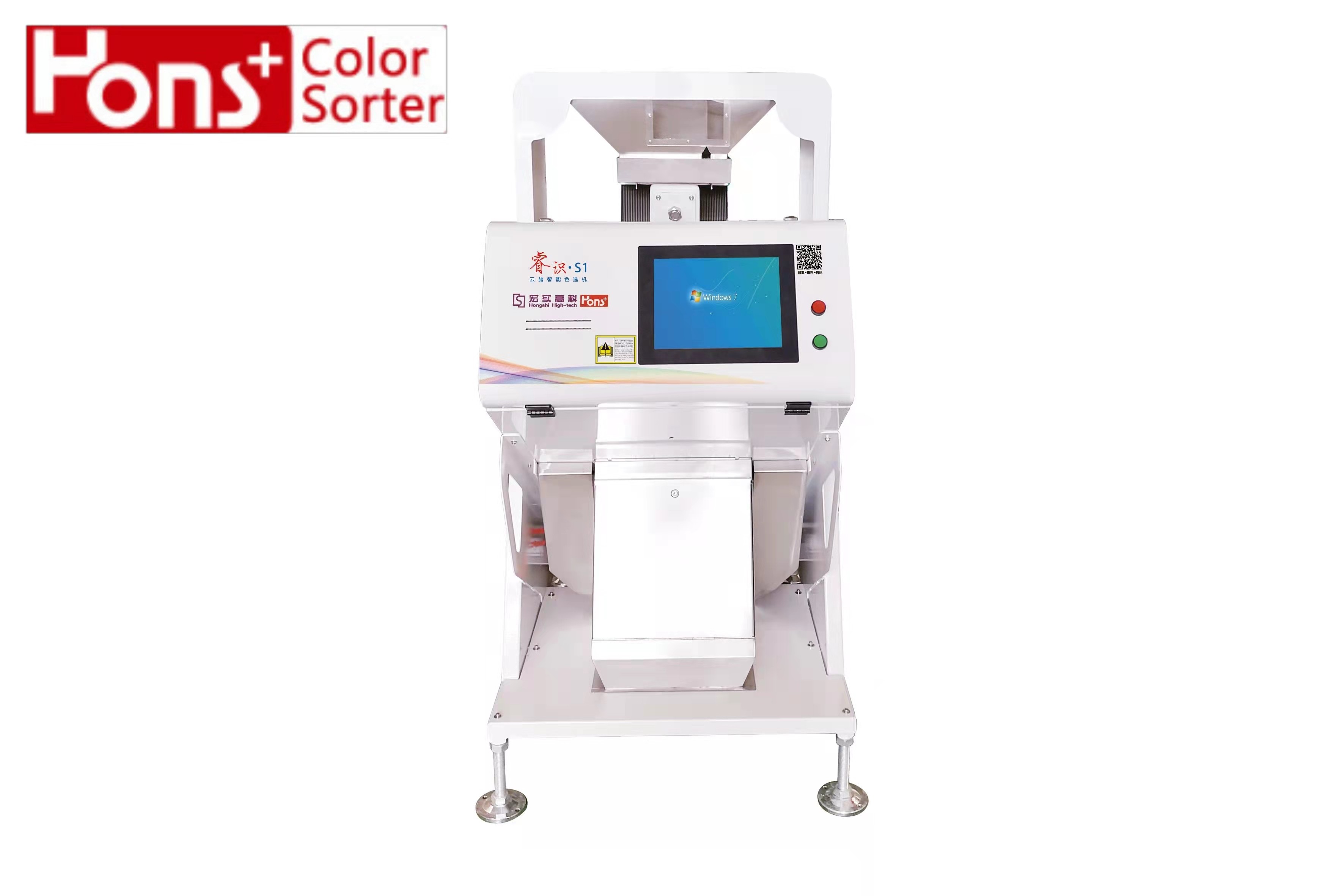

Remote Control Multiple 5400 Pixel Rice CCD Color Sorter High Accuracy
Sorting materials
1. Rice: white rice, parbouled rice, yellow rice, brown rice, barley rice
2. Beans: soybeans, mung beans, red beans, coffee beans
3. Nuts: peanuts, cashew nut, walnut meat,pine nuts
4. vegetables: dry onion, daylily,back fungus
5. Seeds: vegetable seeds, cumin seeds,prickly ash seeds
6. Industrial:plastic, broken glass,quaze,ore,scrap metal
Rice CCD color sorter machine parameters
Name |
S1 | S3 | S5 | S7 |
| Model | 6SXM-63 | 6SXM-189 | 6SXM-315 | 6SXM-441 |
| Capacity(Kg/H) | 800Kg-1000Kg | 2000Kg-3000Kg | 3000Kg-4000Kg | 5000Kg-6000Kg |
| Voltage(V) | AC220V/50HZ | AC220V/50HZ | AC220V/50HZ | AC220V/50HZ |
| POWER(KW) | <1.5 | <2.4 | <3.0 | <4.0 |
| Weight(KG) | 350Kg | 800Kg | 1250Kg | 1600Kg |
| Dimension(L*W*H/MM) | 910*1620*1550 | 1628*1595*2040 | 2210*1595*2010 | 2836*1595*1850 |
| Air Consumption | 0.9 m³/min | 1.8m³/min | 1.8 m³/min |
3 m³/min |
| Air pressure | 0.6-0.8mpa | 0.6-0.8mpa | 0.6-0.8mpa | 0.6-0.8mpa |
| Air compressor power | 4kw | 7.5Kw | 11kw*2 | 15kw*2 |
| Air tank | 600L | 1000L | 1000L | |
| Cooling Model | wind cooling | wind cooling | wind cooling | wind cooling |
| Mini Resolution( mm²) | 0.03 | 0.03 | 0.03 | 0.03 |
|
C
 |
Automatic Remote Contro L Pixel CCD Camera Rice Color Sorter Easy Operation
Color Sorter Machine Strengths
Intelligent operating system
The Windows 7 operating system is firstly applied in the color sorting industry. It can be upgraded to Windows 8windows 10 according to different application fields, which is stable and reliable. The system presupposes hundreds of material solutions, mode switch through only one hot key.
Massive Datebase And Multiple Function
Massive database with storage of unlimited modescan achieve multiple function of one machine. Single machine can be applied to rice, grains, cash crops and other applications, provide maximum value of product and best convenience of massive datebase for customer.
Intelligent image processing system
International leading full color high speed scanning CCD sensor, scanning speed up to 5400 points, acquisition frequency 10K/S (54 million pixel +10K camera); color + shape multi-line processing, perfect processing of small defects in materials,the minimum scanning or identification area is 0.04mm2.
Intelligent image acquisition system
Automatic collection of supreme dimension spatial data such as color, shape, size and defect to achieve accurate collection of raw material features, automatic judgment and accurate matching of the optimal selection scheme, independent operation, intelligent identification and intelligent sorting according to the rule of selection.
Intelligent magnetic control high frequency solenoid valve
Independently developed intelligent magnetic control high frequency solenoid valve for color sorter. The valve opens & responds quickly, improving the finished product accuracy; the valve closes crisply and neatly, reducing the defective product taken out. Valve flexible contact, service life of 60-100 billion times, compared with similar products 10-30 billion times. Independent research and development of intelligent repair technology to reduce maintenance costs.
Sorting performance
Why choose Hons+
1. Over 10 years experience which focus on sorter machine. One of the most advanced manufacturer in Hefei, Anhui.
2. After-Sales service guarantee: We have a professional after sales service team, one-to-one customer service to help customers install and debug.
3. We have service station over Southeast Asia, co-operate re-seller in more than 50 countries.
4. Quality assurance of raw materials: the raw material we purchase are certified qualified products.
5. Quality process assurance: We have been authorized by CE & ISO quality management system, each process of production are under strictly standard.
6. System test: Our technical engineers check the product performance, even every part is subjected to rigorous aging test to ensure that the factory products would being in full compliance with customer requirements.
7. Shipping guarantee: We have professional packaging operation team, independent export qualification to ensure product safety and stability to reach customers in the hands.
