| Place of Origin: | China |
|---|---|
| Brand Name: | Hons+ |
| Certification: | ISO/SGS/CE |
| Model Number: | S5 |
| Minimum Order Quantity: | 1 set |
| Price: | $9500-$16000 |
| Packaging Details: | Wooden case |
| Delivery Time: | 5-8 worker days |
| Payment Terms: | L/C, D/P, D/A, T/T |
| Supply Ability: | 500sets/month |
| Power（Kw）: | 3.0 | Dimension(L*W*Hmm): | 2210*1595*2040 |
|---|---|---|---|
| Capacity(T/h): | 1.6-2.0t | Voltage(V): | AC220V/50Hz |
| Weight(Kg): | 1250 | Applicable Material: | Rice/Food/Seasame/Peanut |
| Pixels: | 54 Million | Feature: | High Sensitivity |

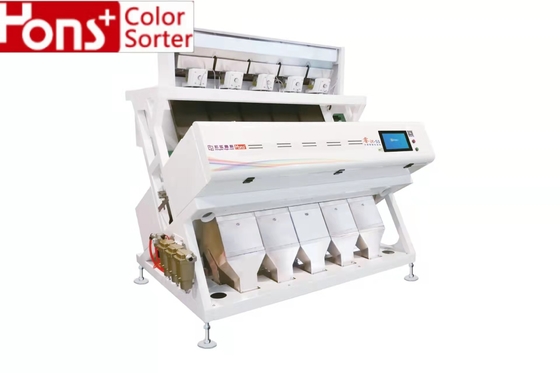

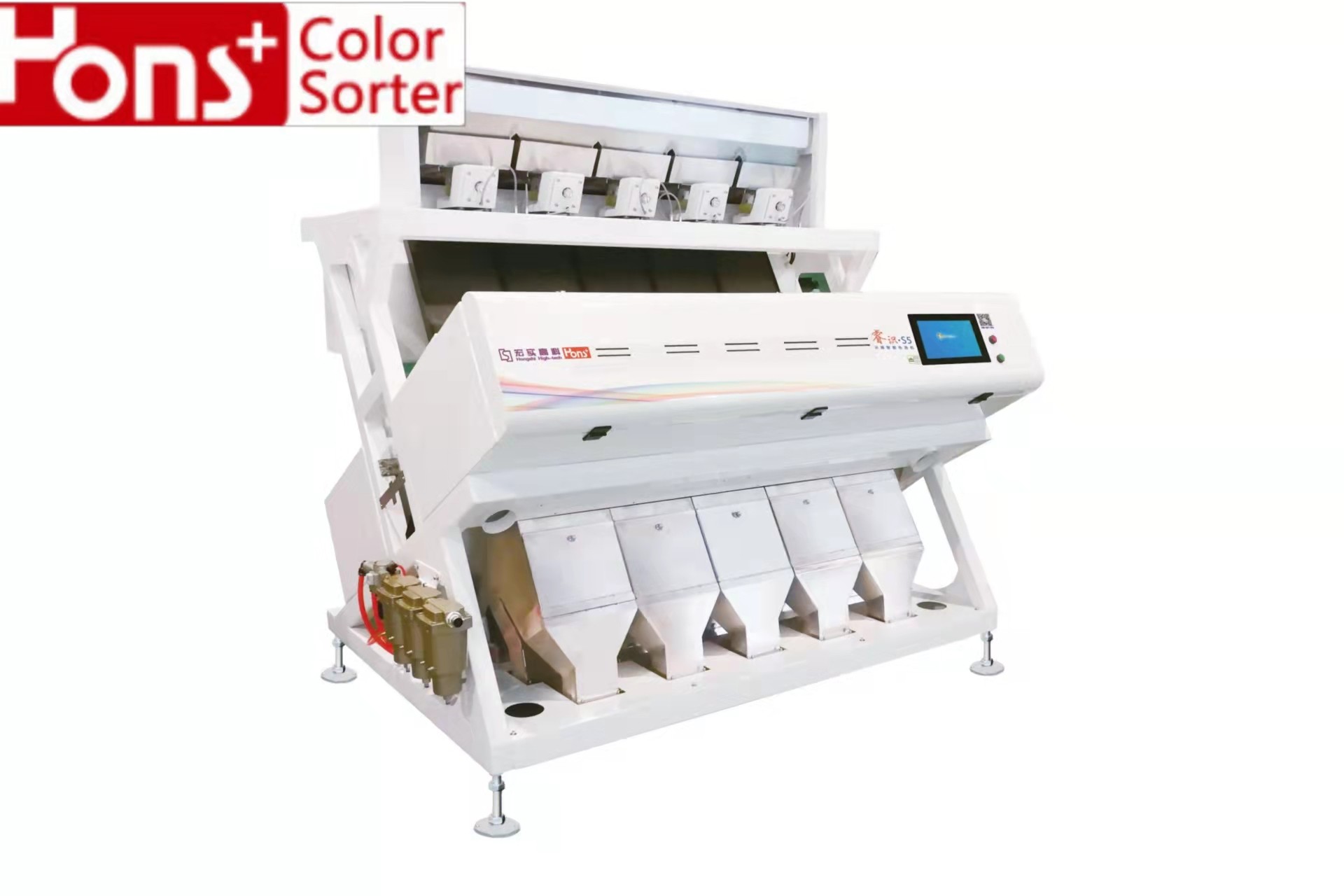

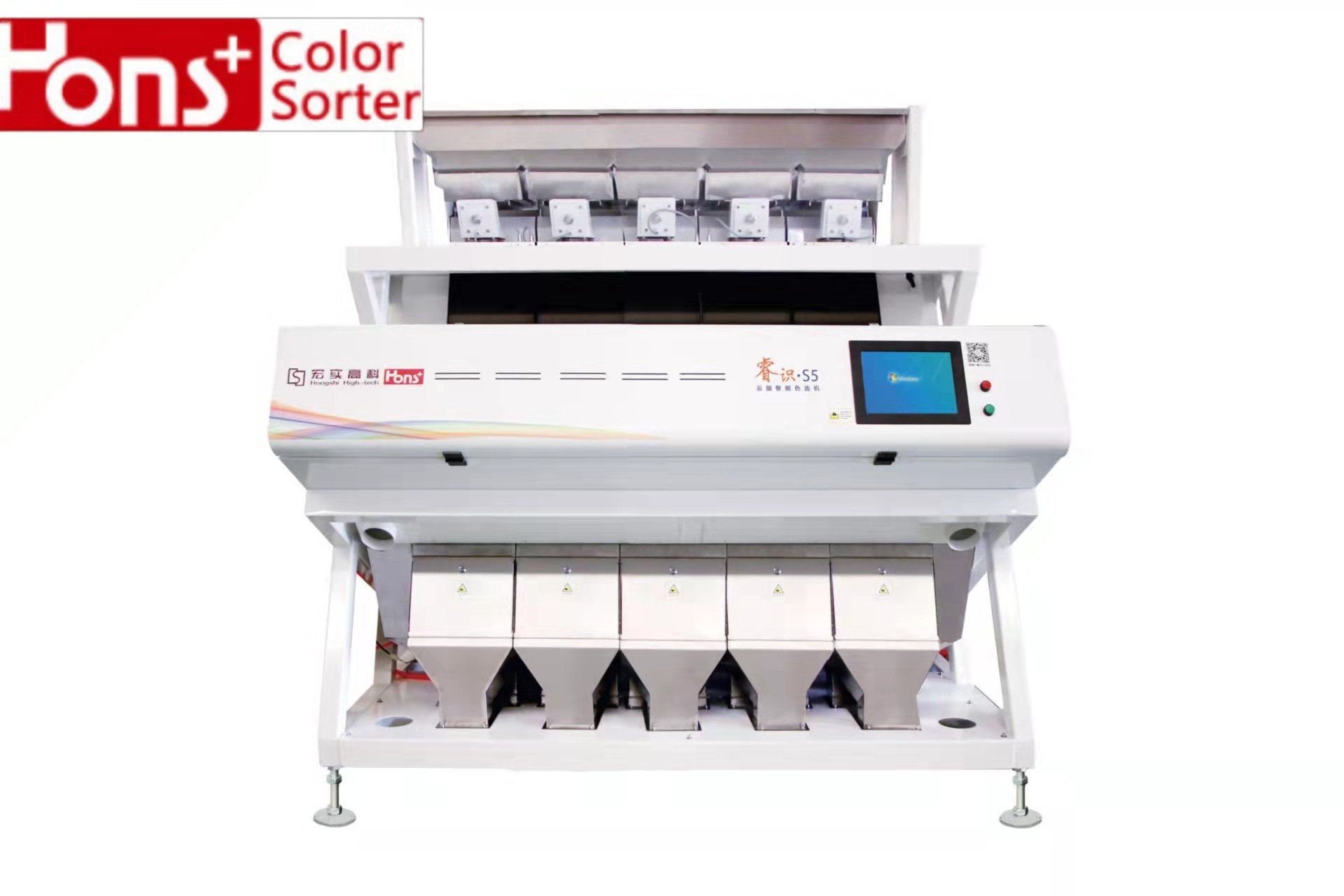

| Product Name: | CCD Color Sorter | ||
| High Light: | Multiple Function Cashew Nut Color Sorter,5 Chutes Cashew Nut Color Sorter,3.0t/H Cashew Nut Sorting Machine |
||
Cereals: rice,millet,parboil rice,black rice,red rice,brown rice,thai rice,glutinous rice.
Grains: peanut, corn,sesame,oat.
Beans: red beens,kidney beans,coffee bean,black beans,mung beans.
Seeds: cotton seed/corn seed/wheat seed/pepper seed/onion seed
Nuts: walnut kernel,apricot kernel,sunflower seeds,almond,watermelon seed,macadamia nut.
Industries: plastic,electronic component,industrial salt,quartz sand
Others: tea,raisins,wolfberry,pepper.
Machine parameters
|
Channels
|
315 |
|
Sorting Accuracy(%):
|
≥99.9 |
|
Carryover Rate(bad:good):
|
≥12:1 |
| Capacity:(kg/hour) | 1600kg-2000kg |
|
Voltage:
|
220V/50Hz |
| Weight(kg): | 1250kg |
| Power(Kw) | 3.0Kw |
| Diamension/Size (L*W*H)mm | 2210*1595*2040 |
| Package: |
Wooden Case
|
Technical characteristic
1: High precision 5400 linear CCD camera can achieve high resolution recognition and high speed classification. CCD technology allows it to accurately classify materials.
2. The humanized touch screen is easy to learn and operate. A simple touch screen helps our customers to operate it easily and quickly.
3. The uniquely designed chute allows the material to flow uniformly, continuously and smoothly
4. Due to the configuration of the special light source, 10 million types of color coding are possible with a fully adjustable color spectrum. Materials can be classified according to different configurations suitable for different size classifications without the need to change the light source.
5. The new high frequency bulb reduces power consumption, extends responsive life, improves durability, ease of maintenance, and improves color accuracy.
Sorting performance
FAQ
Sample sending for testing is welcomed.
Or you send these three photos, the raw material, good material (which is you want) ,bad material (which is you want to discard).we send our video to you.
2. How about the guarantee period?
One year.
3. Will you accept L/C as payment?
L/C, T/T is OK .
Alibaba Trade Assurance is your best choice.
4.Do you have any other spare parts for the customer?
Yes,we will supply you some spare parts .
5.Which machine will work together with our color sorter which you can supply?
Air compressor ,Air tank ,Air filters,Air dryer , light sources, cleaning brushes, etc
Why choose Hons+
1. A strong central technical team in Hefei, China: Ready for supporting local agent or wholesales with training, advice and technical support.
2. One year full warranty (except for consumable parts) upon the date of purchase.
3. Service line is available for emergency support: telephone, email, video or on site solutions by our technical experts.
4. Serviced and Supported wherever customers are located.
5. Free software update.
