| Place of Origin: | China |
|---|---|
| Brand Name: | Hons+ |
| Certification: | ISO/SGS/CE |
| Model Number: | S5 |
| Minimum Order Quantity: | 1 set |
| Price: | $11000-$19000 |
| Packaging Details: | Wooden case |
| Delivery Time: | 5-8 worker days |
| Payment Terms: | L/C, D/P, D/A, T/T |
| Supply Ability: | 500sets/month |
| Power（Kw）: | 3.0 | Dimension(L*W*Hmm): | 2210*1595*2040 |
|---|---|---|---|
| Capacity(T/h): | 1.6-2.0t | Voltage(V): | AC220V/50Hz |
| Weight(Kg): | 1250 | Applicable Material: | Rice/Food/Seasame/Peanut |
| Pixels: | 54 Million | Feature: | High Sensitivity |

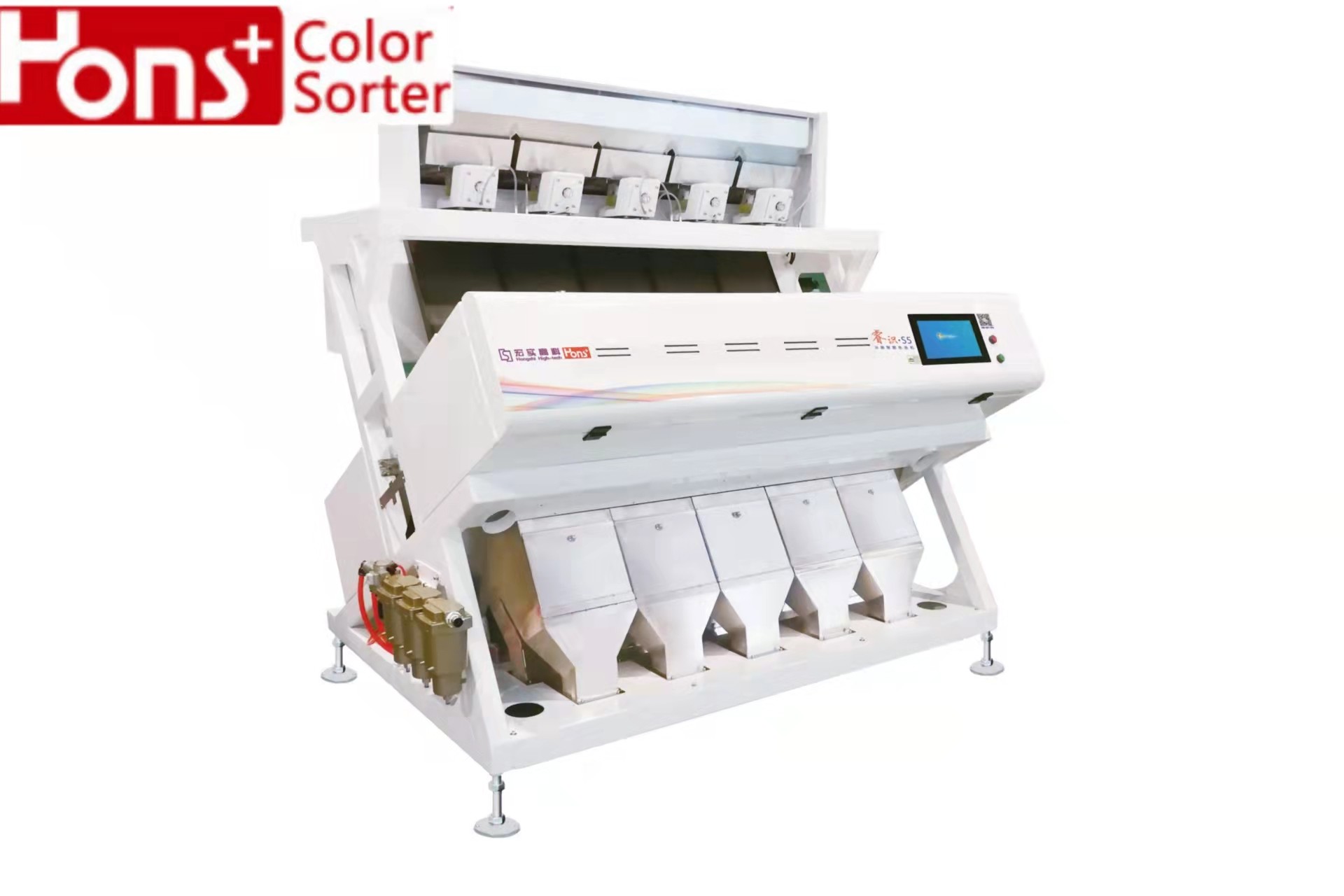

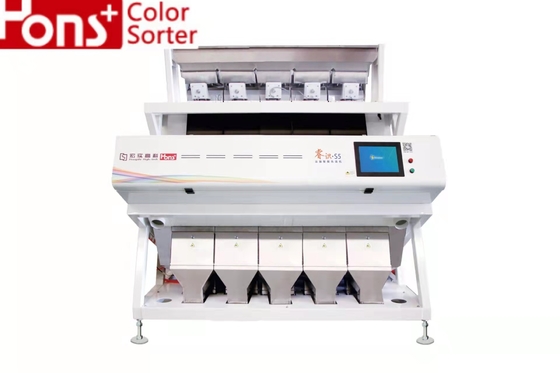

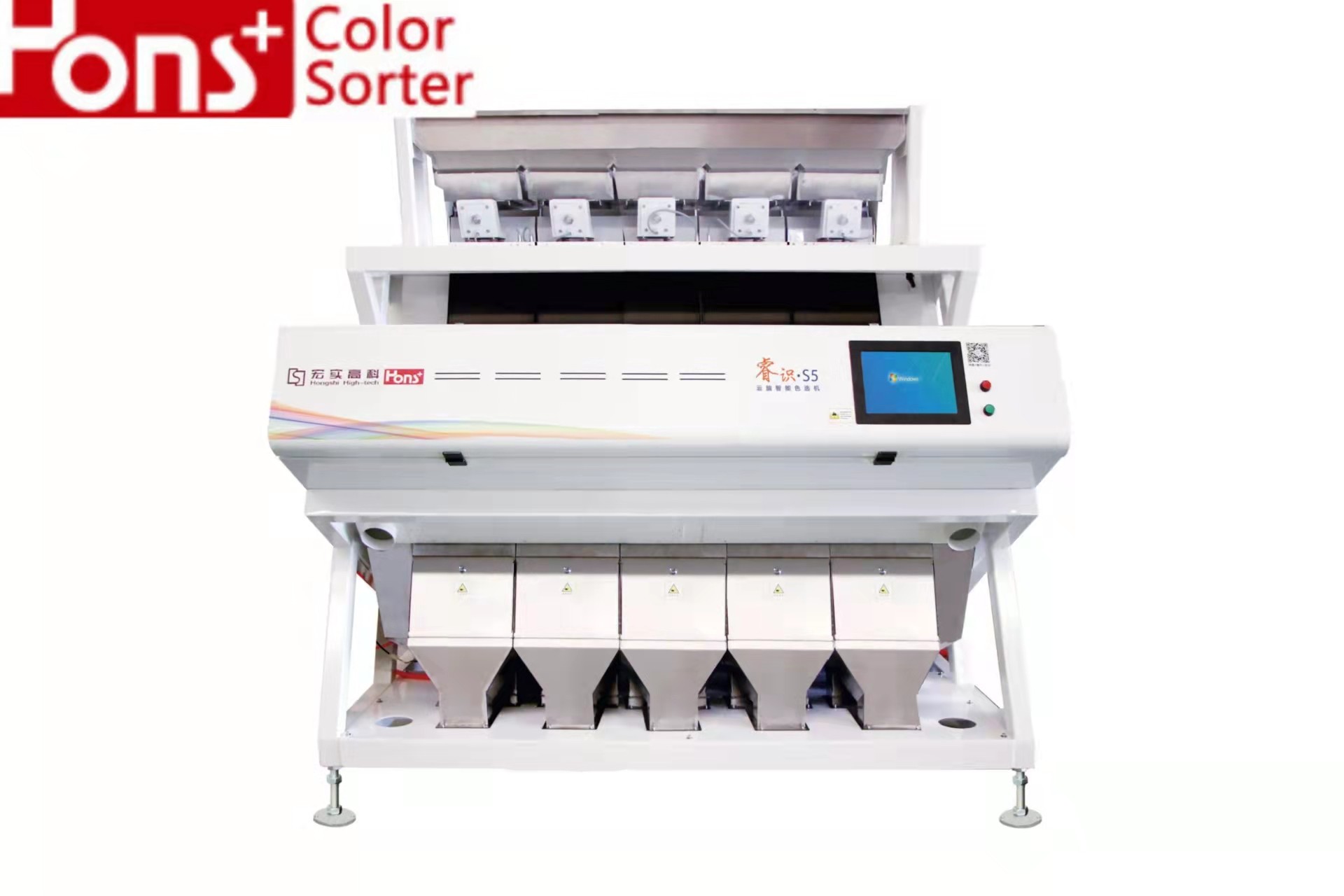

| Product Name: | CCD Color Sorter | ||
| High Light: | High Sensitivity Optical Sorting Machine,Rice Optical Color Sorter,CCD Optical Sorting Machine |
||
Sorting materials
Cereals: rice,millet,parboil rice,black rice,red rice,brown rice,thai rice,glutinous rice.
Grains: peanut, corn,sesame,oat.
Beans: red beens,kidney beans,coffee bean,black beans,mung beans.
Nuts: walnut kernel,apricot kernel,sunflower seeds,almond,watermelon seed,macadamia nut.
Industries: plastic,electronic component,industrial salt,quartz sand
Others:tea,raisins,wolfberry,pepper.
Machine parameters
|
Channels
|
315 |
|
Sorting Accuracy(%):
|
≥99.9 |
|
Carryover Rate(bad:good):
|
≥12:1 |
| Capacity:(kg/hour) | 1600kg-2000kg |
|
Voltage:
|
220V/50Hz |
| Weight(kg): | 1250kg |
| Power(Kw) | 3.0Kw |
| Diamension/Size (L*W*H)mm | 2210*1595*2040 |
| Package: |
Wooden Case
|
Characteristic
| Sr. No. | Name | Technical Date |
| 1 | Image Acquisition System | Automatic collection of supreme dimension spatial data such as color, shape, size and defect of raw material, intelligent identification and intelligent sorting according to the rule of selection. |
| 2 | Intelligent Operation System | Windows 7 operating system, which can be upgraded to Windows 8 or windows 10 according to different application fields. |
| 3 | Image Processing System | Minimum scanning and identification area can reach 0.2mm X 0.2mm=0.04mm2; Color + Shape multi-line processing. |
| 4 | Feeding System | Antioxidant anode treatment chute, greatly enhance production capacity, the output increased by 20%~30% comparing with similar products. |
| 5 | Massive database | Multiple function of one machine. Single machine can be applied to rice, grains, cash crops and other applications. |
.
Sorting performance
FAQ
Sample sending for testing is welcomed.
Or you send these three photos, the raw material, good material (which is you want) ,bad material (which is you want to discard).we send our video to you.
2. How about the guarantee period?
One year.
3. Will you accept L/C as payment?
L/C, T/T is OK .
Alibaba Trade Assurance is your best choice.
4.Do you have any other spare parts for the customer?
Yes,we will supply you some spare parts .
5.Which machine will work together with our color sorter which you can supply?
Air compressor ,Air tank ,Air filters,Air dryer , light sources, cleaning brushes, etc
Why choose Hons+
1. Over 10 years experience which focus on sorter machine. One of the most advanced manufacturer in Hefei, Anhui.
2. After-Sales service guarantee: We have a professional after sales service team, one-to-one customer service to help customers install and debug.
3. We have service station over Southeast Asia, co-operate re-seller in more than 50 countries.
4. Quality assurance of raw materials: the raw material we purchase are certified qualified products.
5. Quality process assurance: We have been authorized by CE & ISO quality management system, each process of production are under strictly standard.
6. System test: Our technical engineers check the product performance, even every part is subjected to rigorous aging test to ensure that the factory products would being in full compliance with customer requirements.
7. Shipping guarantee: We have professional packaging operation team, independent export qualification to ensure product safety and stability to reach customers in the hands.
Seller:Iris
Mail: iris@honscolorsorter.com
