Power(Kw): | 4.0 | Dimension(L*W*Hmm): | 2836*1595*2040 |
---|---|---|---|
Capacity(T/h): | 4.0t-5.0t | Voltage(V): | AC220V/50Hz |
Weight(Kg): | 1600kg | Applicable Material: | Peanut/Rice/grain |
Pixels: | 54 Million | Feature: | High Sensitivity |

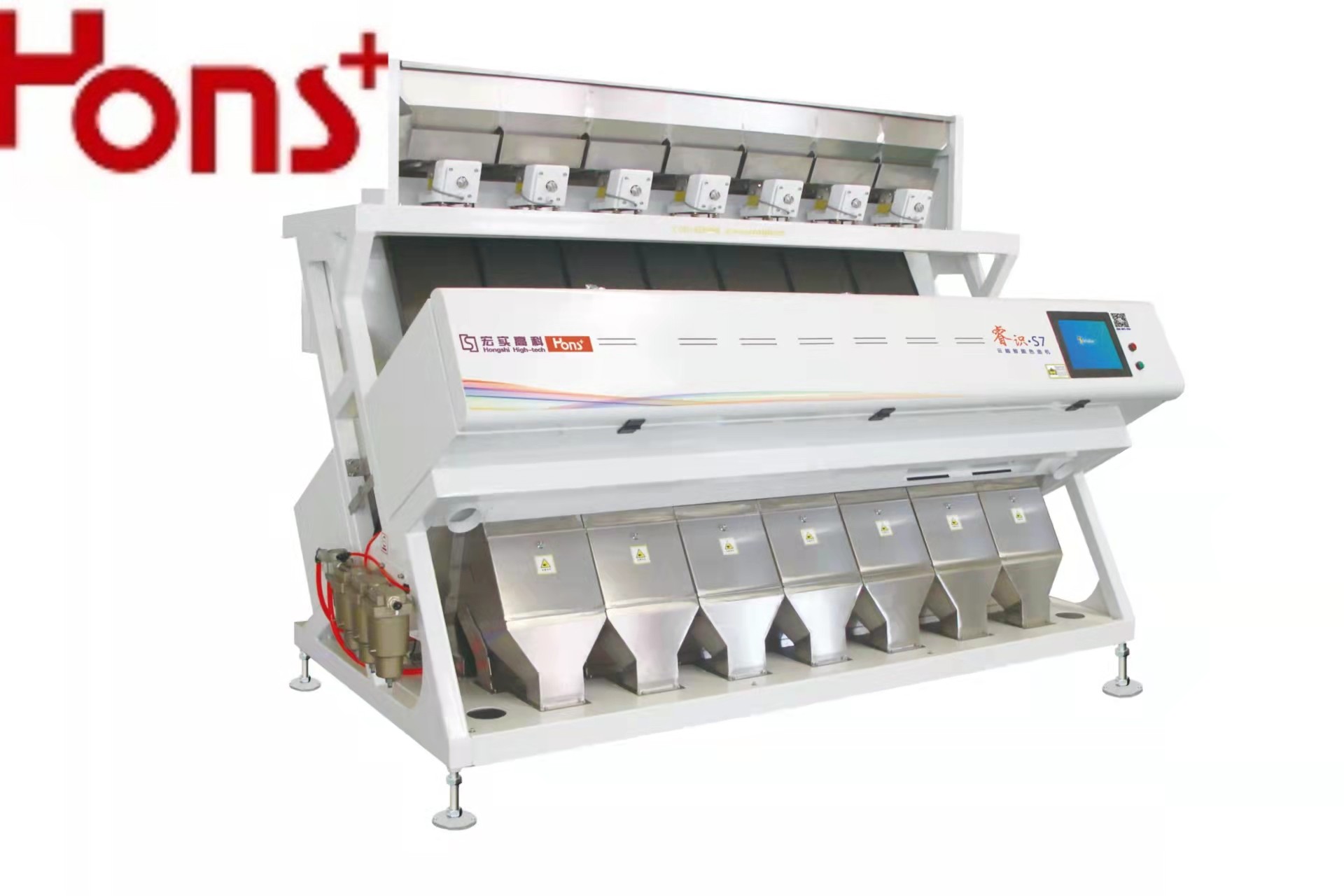

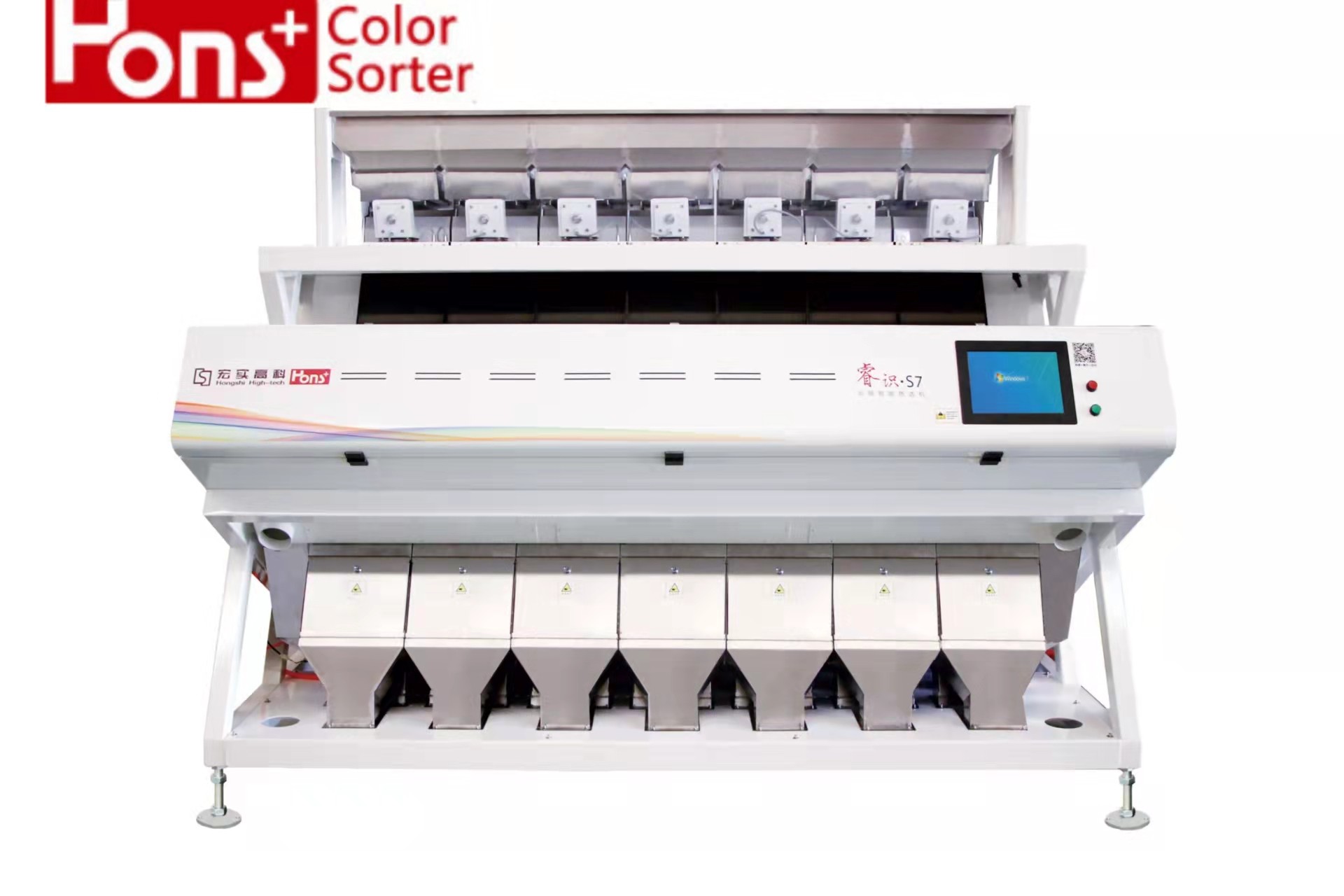

Product Name: | CCD Color Sorter | ||
High Light: | High Sensitivity Grain Color Sorter,54 Million Pixels CCD Grain Sorter,CCD Camera Rice Sorting Machine |
Cloud braininterconnection
Remote interconnection: Easy connection of touch screen and mobile devices, intelligent control to enjoy the wisdom of life.
Remote diagnosis: Start-up self checking of system can achieve real-time monitoring of machine components, automatically judgement and troubleshooting to ensure the normal operation of color sorter.
Remote upgrade: Intelligent self checking system realizes one-key system upgrade and provides the best operation experience
Remote training: A efficient and convenient real-time interactive training system developed independently, creating non-distance service for users.
Cloud brain vision
Intelligent image acquisition system
Automatically collecting hyper space data such as color, shape, size and defect to achieve accurate acquisition of raw material features,automatically judgment and precisely matching the optimal sorting program to achieve autonomous calculation, intelligent identification, and intelligent sorting.
Intelligent image processing system
International leading full color high speed three-line scanning CCD sensor (54 million pixel *3), perfect processing of small defects in materials, the minimum scanning and identification area can reach 0.2mm * 0.2mm=0.04mm²; Meanwhile, multi-thread processing capacity for "Color + Shape" .
Technology parameters
Name |
S1 | S2 | S5 | S7 |
Model | 6SXM-63 | 6SXM-126 | 6SXM-315 | 6SXM-441 |
Capacity(Kg/H) | 300Kg-400Kg | 300Kg-800Kg | 1200Kg-1600Kg | 1500Kg-2400Kg |
Voltage(V) | AC220V/50HZ | AC220V/50HZ | AC220V/50HZ | AC220V/50HZ |
POWER(KW) | <1.5 | <2.0 | <3.0 | <4.0 |
Weight(KG) | 350Kg | 500Kg | 1250Kg | 1600Kg |
Dimension(L*W*H/MM) | 910*1620*1550 | 1220*1620*15500 | 2210*1595*2010 | 2836*1595*1850 |
Air Consumption | 0.9 m³/min | 1.8m³/min | 1.8 m³/min |
3 m³/min |
Air pressure | 0.6-0.8mpa | 0.6-0.8mpa | 0.6-0.8mpa | 0.6-0.8mpa |
Air compressor power | 4kw | 5.5Kw | 11kw*2 | 15kw*2 |
Air tank | 300L | 1000L | 1000L | |
Cooling Model | wind cooling | wind cooling | wind cooling | wind cooling |
Mini Resolution( mm²) | 0.03 | 0.03 | 0.03 | 0.03 |
Nuts: peanuts/cashew nuts/walnut meat/pine nuts
Rice: white/black/red/yellow/barley rice
Beans: soybeans/mungbeans/red beans/broad beans
Wheat: buckwheat/quinoa/oatmeal
Corn: corn particles/white corn/ ellowcorn/black corn
Dry food: dry onion/ raisins/dried chilli
Seeds: sunflower seeds/ rice seeds/ vegetable seeds
Industrial materials: plastic/scrap metal/ broken galss/ coal/ore/slag/Waste Plastics, Plastic pellet, Plastic pieces, Plastic granule, Plastic bottle cap flake, PET bottle scrap, ABS plastic flake, PP plastic scrap, Recycled plastic
Sorting performance
