| Place of Origin: | China |
|---|---|
| Brand Name: | Hons+ |
| Certification: | ISO/SGS/CE |
| Model Number: | S6 |
| Minimum Order Quantity: | 1 set |
| Price: | $13500-$21000 |
| Packaging Details: | Wooden case |
| Delivery Time: | 5-8 worker days |
| Payment Terms: | L/C, D/P, D/A, T/T |
| Supply Ability: | 500sets/month |
| Power（Kw）: | 3.6KW | Dimension(L*W*Hmm): | 2836*1595*2040 |
|---|---|---|---|
| Capacity(T/h): | 3.2t-5.0t | Voltage(V): | AC220V/50Hz |
| Weight(Kg): | 1400kg | Applicable Material: | Peanut/Rice/grain |
| Pixels: | 54 Million | Feature: | High Sensitivity |

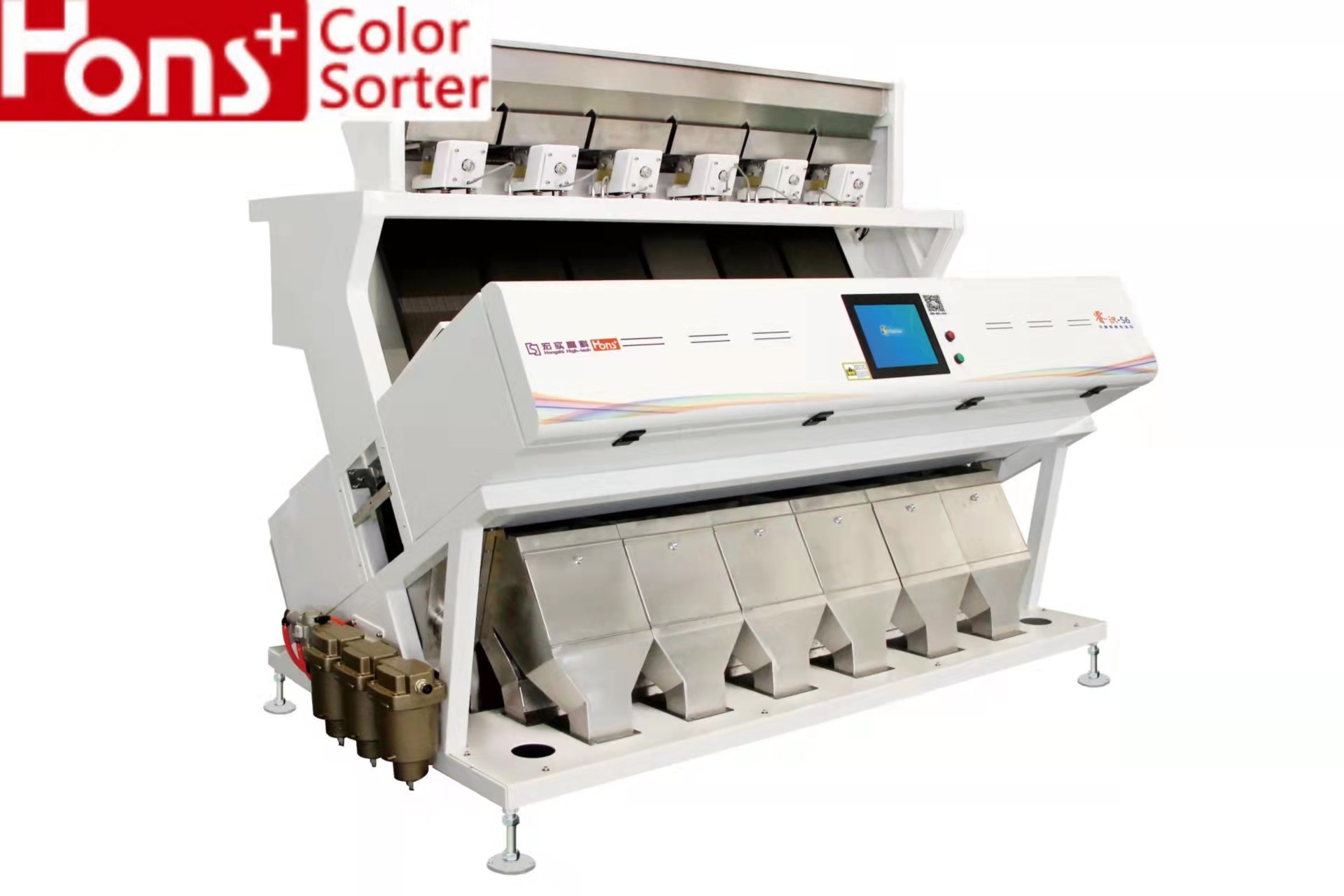

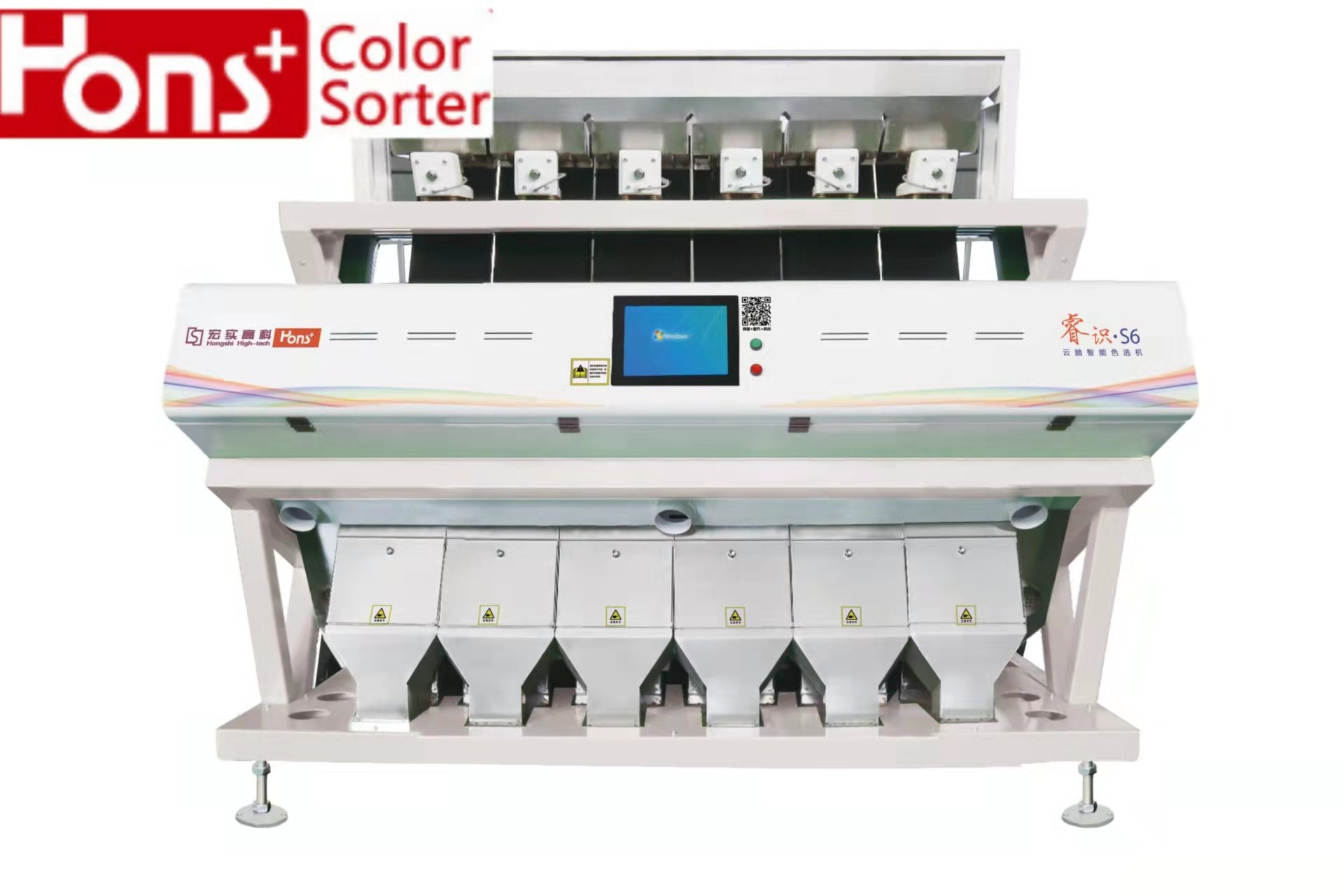

| Product Name: | CCD Color Sorter | ||
| High Light: | Cashew Nut CCD Sorter Machine,Grain CCD Color Sorter Machine,5.0t/H CCD Color Sorter Machine |
||
1. The advances digital non-polar intelligent dimming technology can automatically match the best brightness according to the materrial selection requirements and the changes of environment to guarantee the sorting performance.
2. Intelligence operation surface,overall upgrade (10-inch ) capacitive touch screen proved the zooming and sliding function,easy test and operation,multiple sorting modes make you operating easier.
3.The patented intelligent dust-extraction system can rapidly remove light objects and dusta adhered to materials, for which ensuring sorting accuracy and improving machine efficient.
4.Automatically collecting hyper space data such as color ,shape,and defect to achieve accurate acquisition of raw mateial features.
5. Overall new chute design,specoal technology chute makes material transfer more steady and output increased 20%-30%,meanwhile, we also could provide plate-type and slot-type for meeting the various demands.
Technology parameters
Name |
S1 | S2 | S5 | S6 |
| Model | 6SXM-63 | 6SXM-126 | 6SXM-315 | 6SXM-378 |
| Capacity(Kg/H) | 300Kg-400Kg | 300Kg-800Kg | 1200Kg-1600Kg | 1500Kg-2400Kg |
| Voltage(V) | AC220V/50HZ | AC220V/50HZ | AC220V/50HZ | AC220V/50HZ |
| POWER(KW) | <1.5 | <2.0 | <3.0 | <3.6 |
| Weight(KG) | 350Kg | 500Kg | 1250Kg | 1400Kg |
| Dimension(L*W*H/MM) | 910*1620*1550 | 1220*1620*15500 | 2210*1595*2010 | 2528*1595*2040 |
| Air Consumption | 0.9 m³/min | 1.8m³/min | 1.8 m³/min |
3 m³/min |
| Air pressure | 0.6-0.8mpa | 0.6-0.8mpa | 0.6-0.8mpa | 0.6-0.8mpa |
| Air compressor power | 4kw | 5.5Kw | 11kw*2 | 15kw*2 |
| Air tank | 300L | 1000L | 1000L | |
| Cooling Model | wind cooling | wind cooling | wind cooling | wind cooling |
| Mini Resolution( mm²) | 0.03 | 0.03 | 0.03 | 0.03 |
Rice: white/black/red/yellow/barley rice
Wheat: buckwheat/quinoa/oatmeal
Corn: corn particles/white corn/ ellowcorn/black corn
Beans: soybeans/mungbeans/red beans/broad beans
Nuts: peanuts/cashew nuts/walnut meat/pine nuts Dry food: dry onion/ raisins/dried chilli
Seeds: sunflower seeds/ rice seeds/ vegetable seeds
Industrial materials: plastic/scrap metal/ broken galss/ coal/ore/slag
Sorting performance
FAQ
1. How about engineers service oversea?
Engineers available to service machinery overseas.
2. How to use the machine?
We will supply customer the installation catalog or video online.
3. How about the sample machines for testing?
Sample sending for testing is welcomed.Or you send these three photos, the raw material, good material (which is you want) ,bad material (which is you want to discard).we send our video to you.
4. How about the guarantee period?
One year.
5. Will you accept L/C as payment?
L/C, T/T is OK .
Alibaba Trade Assurance is your best choice.
6.Do you have any other spare parts for the customer?
Yes,we will supply you some spare parts .
Why Choose Hons+:
1. Over 10 years experience which focus on sorter machine. One of the most advanced manufacturer in Hefei, Anhui.
2. After-Sales service guarantee: We have a professional after sales service team, one-to-one customer service to help customers install and debug.
3. We have service station over Southeast Asia, co-operate re-seller in more than 50 countries.
4. Quality assurance of raw materials: the raw material we purchase are certified qualified products.
5. Quality process assurance: We have been authorized by CE & ISO quality management system, each process of production are under strictly standard.
6. System test: Our technical engineers check the product performance, even every part is subjected to rigorous aging test to ensure that the factory products would being in full compliance with customer requirements.
7. Shipping guarantee: We have professional packaging operation team, independent export qualification to ensure product safety and stability to reach customers in the hands.
