Type: | S4 | Capacity: | 3.0~6.0 T/H |
---|---|---|---|
Voltage: | AC220V/50HZ | Power: | 2.6Kw |
Size: | L 1870mm * W 1595mm * H 2040mm | Weight: | 1000Kgs (+/-5%) |
Applied Materials: | Rice/beans/peanut/walnut/cashew Nut | Light Source: | LED |
High Light: | Intelligent CCD Cashew Nut Color Sorter,4 Chutes Corn Color Sorter,RGB Camera Cashew Nut Color Sorter |

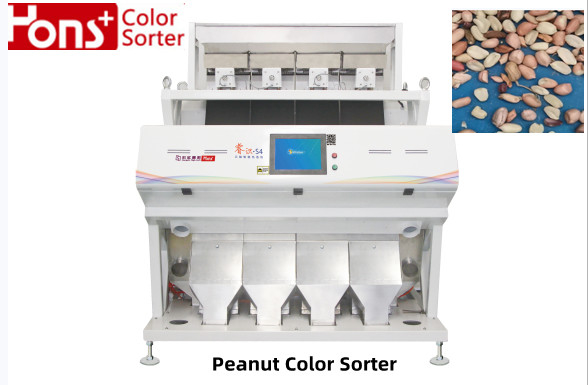

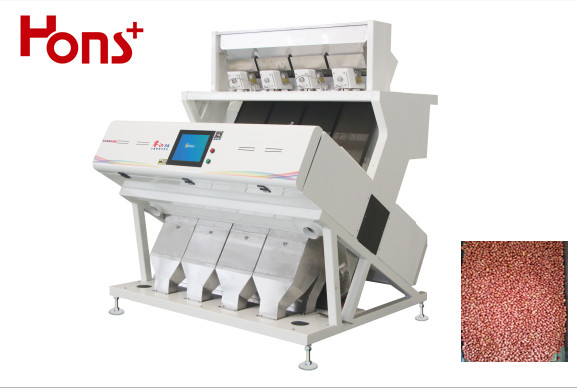

4 Chutes 2.0T/H RGB Camera Cashew Nut/Peanut Separator Machine
Characteristics
Introduction of grain color sorter
Hons+ intelligent CCD corn color sorter is used to separate the impurities such as imperfect corn, stone, moldy corn and black paste waste, the seperate purity ratio can reach 99%. 53.88 million pixel assure high-definition accurate identification, one-key intelligent operation make sorting effect better.
Structure principle of corn color sorter
The raw material enter the hopper at the top and slide down the channels through the vibration of the vibrator device, then accelerates to fall into the observation area of the sorting room, and passes through the space with the sensor and the background plate. Under the action of light source, the light intensity and color will be changed, according to which the system generates output signal to drive the solenoid valve to work and blow out the discolored particles to the waste cavity of the receiving hopper, and the good materials continue to fall into the finished cavity of the receiving hopper, so as to achieve the purpose of classifying.
Cloud brain data
Applied Windows 7 operating system in color sorter industrycan beupgraded to Windows 8 and Windows 10 according to different application.
Massive database and Multiple function
Massive database with storage of unlimited modescan achieve multiple function of one machine. Single machine can be applied to rice, grains, cash crops and other applications, provide maximum value of product and best convenience of massive database for customer.
CCD color sorter machine parameters
Channels
|
252
|
Sorting Accuracy(%):
|
≥99.9
|
Carryover Rate(bad:good):
|
≥12:1
|
Voltage:
|
220V/50Hz
|
Capacity(kg/h):
|
1000kg-1500kg
|
Weight(kg):
|
1000kg
|
Diamension/Size (L*W*H)mm
|
1870*1595*2040
|
Package:
|
Wooden Case
|
Sorter Applcation
Rice: rice/brown rice/sticky rice/millet/sorghum/myotonin/black rice
Beans: kidney bean/soybean/mung/red bean/black bean/pea/ broad bean/coffee bean/lentil/chickpea
Tea: green tea/black tea/dark tea/white tea/ yellow tea
Cereals: corn/barley/wheat/oat/sesame/malt
Seeds: cotton seed/corn seed/wheat seed/pepper seed/onion seed
Nuts & Kernels: sunflower seed/pumpkin seed/watermelon seed/cashew nut/peanut/walnut/pistachio
Sorting Result
About us
1. The leading photoelectric detection and classification equipment supplier in China.
2. We supply optic detection and classificationequipment as rice color sorting machine, grain color sorting machine, grain colorsorting machine,tea color sorting machine,belt color sorting machine ect,And also offer the effective fast solution for relative industry.
3. Hons+ brand series product have been popular both in domastic and oversea market many years, we have exported over than 45countries with high praise from customers.
