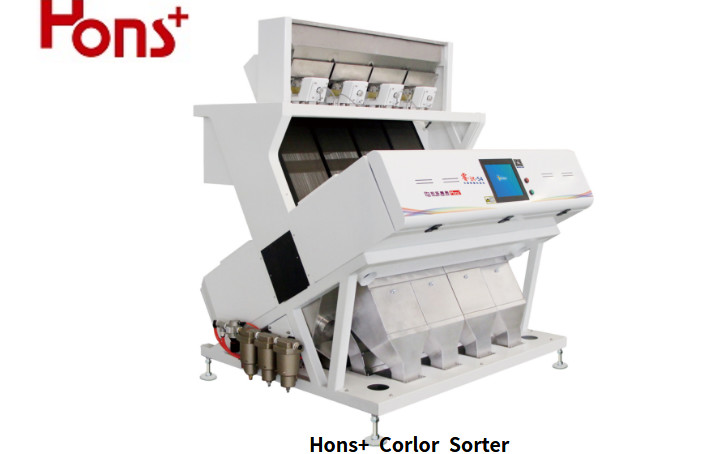

Rice Beans Grain Color Sorter With RGB Camera CCD

Basic Information
Place of Origin: China
Brand Name: Hons+
Certification: ISO/SGS/CE
Model Number: 6SXM-252
Minimum Order Quantity: 1 Set
Price: $9500-$15000
Packaging Details: Wooden Case
Delivery Time: 7 ~ 14 Days
Payment Terms: L/C, T/T
Supply Ability: 200 Sets Per Month
Detail Information
Type: S4 Capacity: 3.0~6.0 T/H
Voltage: AC220V/50HZ Power: 2.6Kw
Size: L 1870mm * W 1595mm * H 2040mm Weight: 1000Kgs (+/-5%)
High Light:

RGB Camera Grain Color Sorter

,

RGB Camera CCD Sorter

,

RGB Camera Rice Sorter


Product Description

RGB Camera CCD Color Sorter Machine Rice/Beans/Grain Separator Windows System



Characteristics

Introduction of grain color sorter

Hons+ intelligent CCD corn color sorter is used to separate the impurities such as imperfect corn, stone, moldy corn and black paste waste, the seperate purity ratio can reach 99%. 53.88 million pixel assure high-definition accurate identification, one-key intelligent operation make sorting effect better.

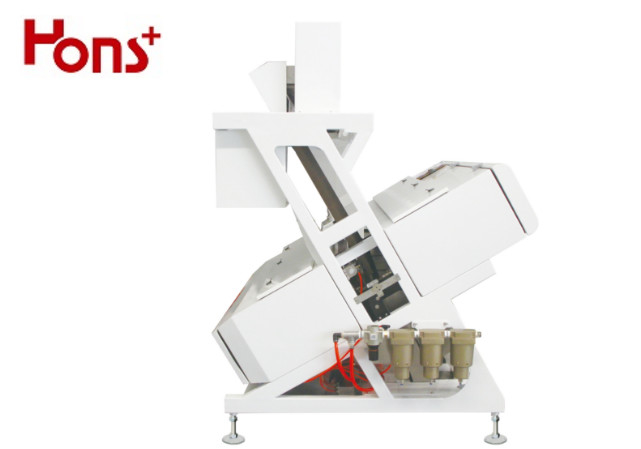

Structure principle of corn color sorter

The raw material enter the hopper at the top and slide down the channels through the vibration of the vibrator device, then accelerates to fall into the observation area of the sorting room, and passes through the space with the sensor and the background plate. Under the action of light source, the light intensity and color will be changed, according to which the system generates output signal to drive the solenoid valve to work and blow out the discolored particles to the waste cavity of the receiving hopper, and the good materials continue to fall into the finished cavity of the receiving hopper, so as to achieve the purpose of classifying.

Cloud brain data

Applied Windows 7 operating system in color sorter industrycan beupgraded to Windows 8 and Windows 10 according to different application.

Massive database and Multiple function

Massive database with storage of unlimited modescan achieve multiple function of one machine. Single machine can be applied to rice, grains, cash crops and other applications, provide maximum value of product and best convenience of massive database for customer.

CCD color sorter machine parameters



Channels
252
Sorting Accuracy(%):
≥99.9
Carryover Rate(bad:good):
≥12:1
Voltage:
220V/50Hz
Capacity(kg/h):
1000kg-1500kg
Weight(kg):
1000kg
Diamension/Size (L*W*H)mm
1870*1595*2040
Package:
Wooden Case



Sorter Applcation



Food materials:
Rice, Wheat, Corn, Soybean, Peanut, Sunflower seeds, Waltnut, Almond, Quinoa, Salt, Medlar, Pistachio, Kidney bean, Chili, Red bean, others.
Mineral materials:
Such as: Quartz stone, Quartz sand, Potassium feldspar, Barite, Calcite, Limestone, Pearl, Marble and others.

Plastic materials:
Waste Plastics, Plastic pellet, Plastic pieces, Plastic granule, Plastic bottle cap flake, PET bottle scrap, ABS plastic flake, PP plastic scrap, Recycled plastic, others.

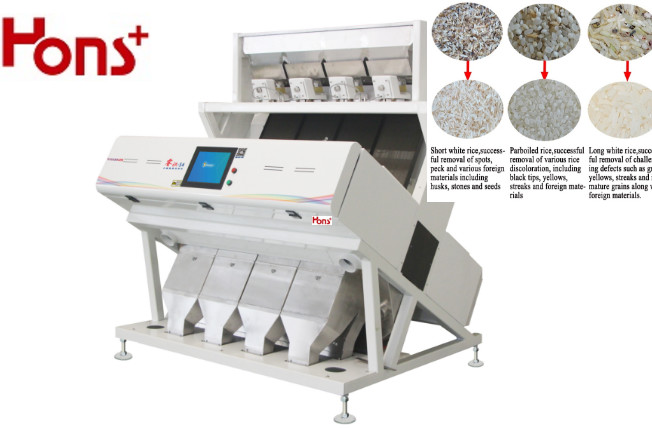

Sorting Result



Rice Beans Grain Color Sorter With RGB Camera CCD 0

Rice Beans Grain Color Sorter With RGB Camera CCD 1





Why choose Hons+



1. Over 10 years experience which focus on sorter machine. One of the most advanced manufacturer in Hefei, Anhui.
2. After-Sales service guarantee: We have a professional after sales service team, one-to-one customer service to help customers install and debug.
3. We have service station over Southeast Asia, co-operate re-seller in more than 50 countries.
4. Quality assurance of raw materials: the raw material we purchase are certified qualified products.
5. Quality process assurance: We have been authorized by CE & ISO quality management system, each process of production are under strictly standard.
6. System test: Our technical engineers check the product performance, even every part is subjected to rigorous aging test to ensure that the factory products would being in full compliance with customer requirements.
7. Shipping guarantee: We have professional packaging operation team, independent export qualification to ensure product safety and stability to reach customers in the hands.

Rice Beans Grain Color Sorter With RGB Camera CCD 2

Rice Beans Grain Color Sorter With RGB Camera CCD 3

Rice Beans Grain Color Sorter With RGB Camera CCD 4
