| Place of Origin: | Anhui,China |
|---|---|
| Brand Name: | Hons |
| Certification: | ISO9001,SGS,CE |
| Model Number: | S10 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Wooden case |
| Delivery Time: | 10-15 Work Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100sets per month |
| Name: | 6SXM-630(CCD) | Capacity(T/h): | 8.0~15.0 |
|---|---|---|---|
| Voltage(V): | AC220V/50Hz | Power(Kw): | ≤5.5 |
| Weight(Kg): | 2250(±5%) | Dimension(L*W*H Mm): | 3910*1595*2040 |
| Color: | White | Channels: | 10 |
| Application: | Sorting | Product Name: | Beans Color Sorter |
| High Light: | Multiple Function Color Sorting Machine,CCD Camera Color Sorting Machine,Multiple Function Colour Sorting Machine |
||

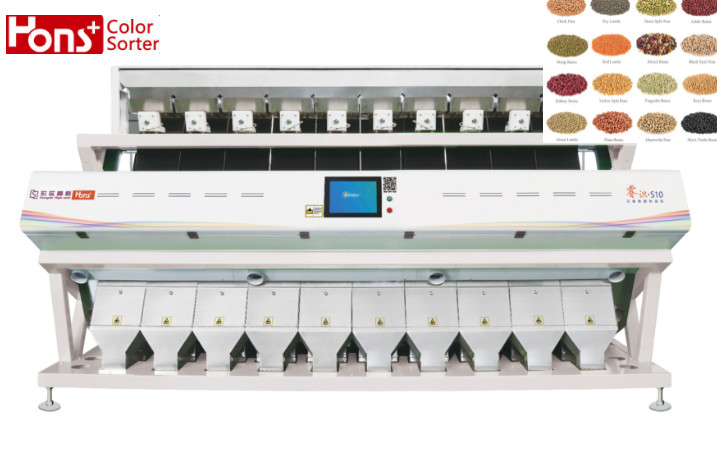

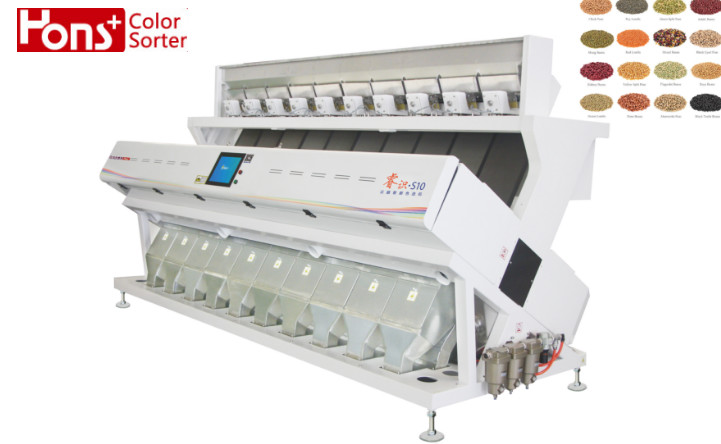

Multiple Function Optical SGS Cassia Seed CCD Camera Color Sorter Machine
Machine Features:
1. 5000 pixels CCD camera,HD recognition,high speed,identify refinement,good stability;
2. Most advanced LED light,good stability,long life used,low power consumption;
3. Humanized touch panel, easy to learn, more convenient to operate;
4. Powerful software,separate sorting modes with storage and memory function;
5. Matching different specifications chutes for different materials;
6. High frequency electromagnetic valve,can use up to 1.6 billion times;
7. Original imported switch power source, passed 3C authentication.
Technical Parameter
Model
|
S1
|
S2
|
S3
|
S4
|
S5
|
S6
|
S7
|
S8
|
S10
|
S12
|
Capacity(t/h)
|
0.8~2.0
|
1.2~2.5
|
1.5~3
|
3~6
|
4~7
|
5~8
|
6~10
|
7~11
|
7~15
|
10~18
|
Voltage (V) |
AC220V 50/60Hz
|
AC220V 50/60Hz
|
AC220V 50/60Hz
|
AC220V 50/60Hz
|
AC220V 50/60Hz
|
AC220V 50/60Hz
|
AC220V 50/60Hz
|
AC220V 50/60Hz
|
AC220V 50/60Hz
|
AC220V 50/60Hz
|
Power(KW)
|
﹤1.5
|
﹤2
|
﹤2.4
|
﹤2.6
|
﹤3.0
|
﹤3.6
|
﹤4.0
|
﹤4.6
|
﹤5.5
|
﹤7.0
|
Air pressure (Mpa) |
0.6-0.8
|
0.6-0.8
|
0.6-0.8
|
0.6-0.8
|
0.6-0.8
|
0.6-0.8
|
0.6-0.8
|
0.6-0.8
|
0.6-0.8
|
0.6-0.8
|
Dimension (mm) |
910* 1620*1550 |
1220* 1615*1550 |
1628* 1595*2040 |
1870* 1595*2040 |
2210* 1595*2040 |
2528* 1595*2040 |
2836* 1595*2040 |
3152* 1595*2040 |
3910* 1595*2040 |
4594* 1595*2100 |
Weight (Kg)
|
350
|
500
|
800
|
1000
|
1250
|
1400
|
1600
|
1800
|
2250
|
2700
|
Sorting Material
Rice: rice/brown rice/sticky rice/millet/sorghum/myotonin/black rice
Beans: kidney bean/soybean/mung/red bean/black bean/pea/ broad bean/coffee bean/lentil/chickpea
Tea: green tea/black tea/dark tea/white tea/ yellow tea
Cereals: corn/barley/wheat/oat/sesame/malt
Seeds: cotton seed/corn seed/wheat seed/pepper seed/onion seed
Nuts & Kernels: sunflower seed/pumpkin seed/watermelon seed/cashew nut/peanut/walnut/pistachio
Sorting example
Company view
Workshop view
Customers site
Exhibition &Team
Our Service
1. The company persists in the “Service is Available at Any Time” guidelines, advocates all staffs to pay close attention to the customer demands at any time, and endeavors to provide the solutions for the domestic and overseas customers.
2. At present, the company has more than 30 after-sales service staffs, who offer the service extending to the prefecture level, contact the customers directly, provide the timely, rapid and considerate service for the customers, and realize the door-to-door service within 72 hours.
3. Carry out one-year free maintenance and care of the complete machine for the customers, provide the professional training and technical guidance timely to solve the worries of the customers, and reflect the service mode of fast response, imely maintenance and tracking coordination fully.
