| Place of Origin: | Anhui，China |
|---|---|
| Brand Name: | Hons+ |
| Certification: | ISO9001,SGS,CE |
| Model Number: | ST10 |
| Minimum Order Quantity: | 1 unit |
| Price: | Negotiable |
| Packaging Details: | wooden case |
| Delivery Time: | 10-15 work days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 800sets per year |
| Model: | 6CSX-480S(CCD) | Capacity(T/h): | 5.0~8.0 |
|---|---|---|---|
| Power(Kw): | ≤4.0 | Weight(Kg): | 1800(±5%) |
| Dimension(L/W/H Mm): | 2850*1595*2550 | Voltage(V): | AC220V/50Hz |
| Color: | White | Application: | Sorting |
| Product Name: | Tea Color Sorter | Light Source: | LED |
| High Light: | Removing Impurities Tea Sorter Machine,CCD Camera Tea Sorter Machine,CCD Tea Colour Sorter Machine |
||

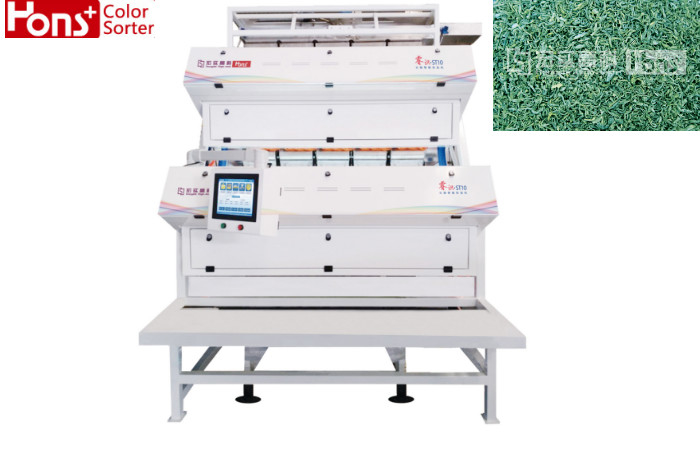

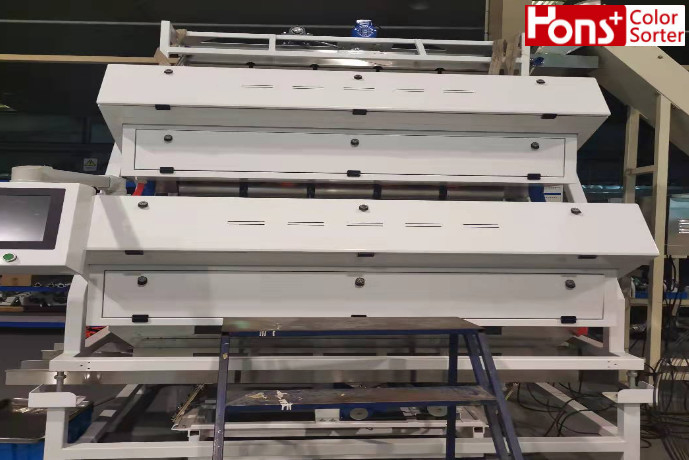

CCD Camera Tea Colour Sorter Machine Removing Impurities Separator CE Certificated
Features: 1. Raw Material are put into the machine from its feeding hopper on the top. 2. Vibrated by vibration device and sliding along material chute into the zone of observation in sorting chamber through sensor and background plate . 3. Under the effect of light source, CCD sensor receives compound light from materials being sorted. 4. According to the light intensity and color changes, make the system produce output signal and drive solenoid valve to work ,ejecting the discolor grain to defect chamber and good materials continue to fall into the finished goods chamber. Technical Parameter
| Model | S1 | S2 | S3 | S4 | S5 | S6 | S7 | S8 | S10 | S12 |
| Capacity(t/h) | 0.8~2.0 | 1.2~2.5 | 1.5~3 | 3~6 | 4~7 | 5~8 | 6~10 | 7~11 | 7~15 | 10~18 |
|
Voltage (V) |
AC220V 50/60Hz | AC220V 50/60Hz | AC220V 50/60Hz | AC220V 50/60Hz | AC220V 50/60Hz | AC220V 50/60Hz | AC220V 50/60Hz | AC220V 50/60Hz | AC220V 50/60Hz | AC220V 50/60Hz |
| Power(KW) | ﹤1.5 | ﹤2 | ﹤2.4 | ﹤2.6 | ﹤3.0 | ﹤3.6 | ﹤4.0 | ﹤4.6 | ﹤5.5 | ﹤7.0 |
|
Air pressure (Mpa) |
0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
|
Dimension (mm) |
910* 1620*1550 |
1220* 1615*1550 |
1628* 1595*2040 |
1870* 1595*2040 |
2210* 1595*2040 |
2528* 1595*2040 |
2836* 1595*2040 |
3152* 1595*2040 |
3910* 1595*2040 |
4594* 1595*2100 |
| Weight (Kg) | 350 | 500 | 800 | 1000 | 1250 | 1400 | 1600 | 1800 | 2250 | 2700 |
Product Application
Hons+ ST10 color sorter is a granular material equipment with double side identification and two times sorting function.It adopts imported high sensitivity of 5400 pixels CCD sensor,Janpanese NIKON lens and high -speed FPGA control system and high-speed ejecor structure with colorful display touch screen for operation .It is kind of high tech products with light ,machine ,electric and gas which can automatically move out of discolored material accurately with high sorting accuracy ,high effciency,easy operration ,compact structure,beautiful design.the function is leading internatonal position,widely used in kinds of green tea,sea vegetables,green tea,oolong tea,black tea ,sea weed,onion pieces
Why choose us
1. Over 10 years experience which focus on sorter machine. One of the most advanced manufacturer in Hefei, Anhui.
2. After-Sales service guarantee: We have a professional after sales service team, one-to-one customer service to help customers install and debug.we supply lifelong software upgrade services for our customers.
3. We have service station over Southeast Asia, co-operate re-seller in more than 50 countries.
4. Quality assurance of raw materials: the raw material we purchase are certified qualified products.
5. Quality process assurance: We have been authorized by CE & ISO quality management system, each process of production are under strictly standard.
6. System test: Our technical engineers check the product performance, even every part is subjected to rigorous aging test to ensure that the factory products would being in full compliance with customer requirements.
7. Shipping guarantee: We have professional packaging operation team, independent export qualification to ensure product safety and stability to reach customers in the hands.
