RGB Multiple Function Rice Color Sorting Machine For Mill Factory

Basic Information
Place of Origin: China
Brand Name: Hons+
Certification: ISO/SGS/CE
Model Number: S3
Minimum Order Quantity: 1 set
Price: $9500-$12500
Packaging Details: Wood case
Delivery Time: 5-8 worker days
Payment Terms: L/C, D/P, D/A, T/T
Supply Ability: 500sets/month
Detail Information
Capacity(T/h): 1.5~3.0 Voltage(V): AC220V/50Hz
Power(Kw): 2.4 Weight(Kg): 800
Dimension(L*W*Hmm): 1628*1595*2040 Light Source: LED
Applied Material: Rice/beans/peanut/cashew Nut/walnut Operation System: Windows
High Light:

Rice Sorting Machine Multiple Function


LED Source Rice Sorting Machine


Multiple Function Rice Color Sorting Machine

Product Description

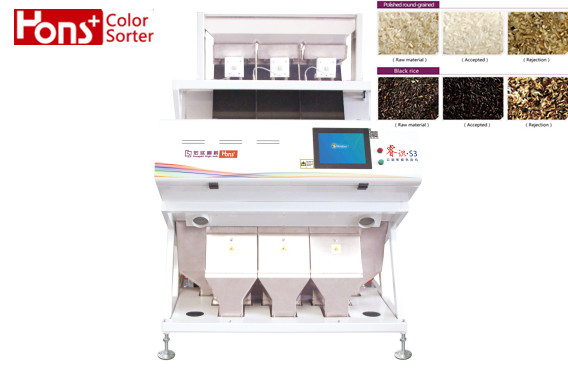

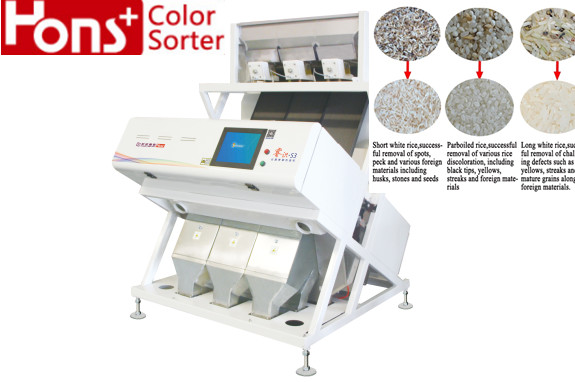

RGB Multiple Function Rice Color Sorting Processing Machine Rice Mill Factory


Products Characteric

1. World-class industrial-strength 5400pixel CCD true color linear array lens, identify discolored material withhigh precision
2. The domenstic leading quality eject valve, with a more t han1billion service time, which has high sorting accuracy and easy maintenance.
3. Intelligent interface which based on ARM chip and Linux operating system,easy and simple to operate.
4. The high-speed specialized micro date processing system greatly improves date processing rate and efficiency,which increases machine output effectively.
5. High-brightness,long service time LED light needs sorting demands for different materials, no need change light source.
6. Newly algorithmic technic for various materials, results better sorting effects.
7. Advanced special slide,reduce friction and easy for maintenance work.
8. New machine model design with more stable operation, increase accuracy and reduce breakage rat.
9. The patented intelligent dust-extraction system can rapidly remove light objects and dusts adhered to the materials, for which ensuring teh sorting accuracy and improving machine efficient.

RGB Multiple Function Rice Color Sorting Machine For Mill Factory 0

Hons+ Smart series color sorters Technical Paraments

Name S1 S2 S3 S5 S7
Model 6SXM-63 6SXM-126 6SXM-189 6SXM-315 6SXM-441
Capacity(Kg/H) 4000Kg-8000Kg 8000Kg-1600Kg 2000KG-3000KG 4000Kg-5000Kg 5000Kg-6000Kg
Voltage(V) AC220V/50HZ AC220V/50HZ AC220V/50HZ AC220V/50HZ AC220V/50HZ
POWER(KW) <1.5 <2.0 <2.4 <3.0 <4.0
Weight(KG) 350Kg 500Kg 800KG 1250Kg 1600Kg
Dimension(L*W*H/MM) 910*1620*1550 1220*1620*15500 1628*1595*2040 2210*1595*2010 2836*1595*1850
Air Consumption 0.9 m³/min 1.8m³/min 1.8 m³/min
1.8 m³/min

3 m³/min
Air pressure 0.6-0.8mpa 0.6-0.8mpa 0.6-0.8mpa 0.6-0.8mpa 0.6-0.8mpa
Air compressor power 4kw 5.5Kw 7.5KW 11kw*2 15kw*2
Air tank   300L 600L 1000L 1000L
Cooling Model wind cooling wind cooling wind cooling wind cooling wind cooling
Mini Resolution( mm²) 0.03 0.03 0.03 0.03 0.03

Remarks:The parameters arebased on sticky rice impurity 2%,actual output changesaccording to the impurity of raw material.


Sortiing materials


Food materials

rice, wheat, corn, soybeans, peanuts, sunflower seeds, walnuts, almonds, quinoa, salt, medler, pistachios, green beans, chili, red beans, etc.

Plastic material:

Waste plastic, plastic pellets, plastic pieces, plastic granules, PET bottle cap flakes, PET bottle scraps, ABS plastic flakes, PP plastic scraps, recycled plastics, etc.


Mineral material:

Examples: quartz stone, quartz sand, potassium feldspar, barite, calcite, limestone, pearls, marble, etc.
