Type: | S4 | Capacity: | 3.0~6.0 T/H |
---|---|---|---|
Voltage: | AC220V/50HZ | Power: | 2.6Kw |
Size: | L 1870mm * W 1595mm * H 2040mm | Weight: | 1000Kgs (+/-5%) |
High Light: | Rice Sorter Multiple Function,Beans Color Sorter Multiple Function,Intelligent CCD Beans Color Sorter |

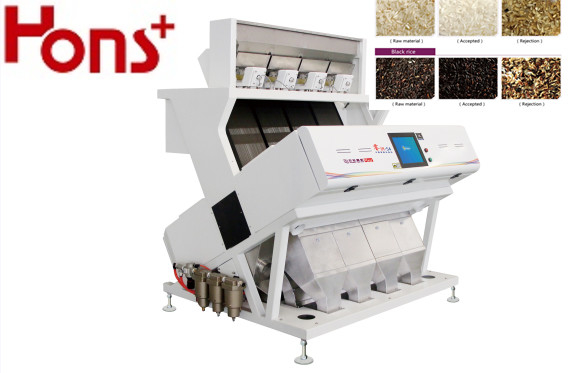

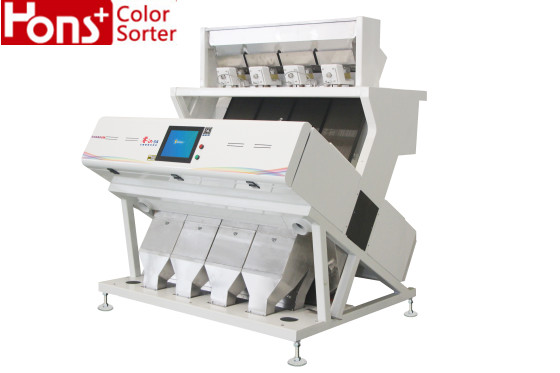

CCD Camera Multiple Function Rice Beans Color Separator Equipment
RGB Camera CCD Color Sorter Machine Rice/Beans/Grain Separator Windows System
Characteristics
Introduction of grain color sorter
Hons+ intelligent CCD corn color sorter is used to separate the impurities such as imperfect corn, stone, moldy corn and black paste waste, the seperate purity ratio can reach 99%. 53.88 million pixel assure high-definition accurate identification, one-key intelligent operation make sorting effect better.
Structure principle of corn color sorter
The raw material enters the top hopper, slides down the channel by the vibration of the vibrator device, and then accelerates to fall into the observation area of the sorting chamber, passing through the space of the sensor and the background plate. Under the action of the light source, the light intensity and color will change, according to which the system generates an output signal, drives the solenoid valve to work, blows the discolored particles into the waste cavity of the hopper, and blows out the good materials. Continue to fall into the finished product cavity of the hopper, so as to achieve the purpose of grading.
Cloud brain data
The Windows 7 operating system for the color sorter industry can be upgraded to Windows 8 and Windows 10 according to different applications.
Massive database, multi-function
Massive database, unlimited schema storage, to achieve multi-purpose one machine. A single machine can be applied to rice, grain, economic crops and other applications, providing customers with the greatest product value and the best convenience of massive databases.
CCD color sorter machine parameters
Name | S1 | S3 | S4 | S5 | S7 |
Model | 6SXM-63 | 6SXM-189 | 6SXM-252 | 6SXM-315 | 6SXM-441 |
Capacity(Kg/H) | 800Kg-1000Kg | 1600Kg-2000Kg | 2000KG-3000KG | 3000Kg-4000Kg | 5000Kg-6000Kg |
Voltage(V) | AC220V/50HZ | AC220V/50HZ | AC220V/50HZ | AC220V/50HZ | AC220V/50HZ |
POWER(KW) | <1.5 | <2.4 | <2.6 | <3.0 | <4.0 |
Weight(KG) | 350Kg | 800Kg | 1000KG | 1250Kg | 1600Kg |
Dimension(L*W*H/MM) | 910*1620*1550 | 1628*1595*2040 | 1870*1595*2040 | 2210*1595*2010 | 2836*1595*1850 |
Air Consumption | 0.9 m³/min | 1.8m³/min | 1.8m³/min | 1.8 m³/min |
3 m³/min |
Air pressure | 0.6-0.8mpa | 0.6-0.8mpa | 0.6-0.8mpa | 0.6-0.8mpa | 0.6-0.8mpa |
Air compressor power | 4kw | 7.5Kw | 11KW | 11kw*2 | 15kw*2 |
Air tank | 600L | 800L | 1000L | 1000L | |
Cooling Model | wind cooling | wind cooling | wind cooling | wind cooling | wind cooling |
Mini Resolution( mm²) | 0.03 | 0.03 | 0.03 | 0.03 | 0.03 |
1. Beans: soybeans, mung beans, red beans, coffee beans,chickpea,red lentils
2. Rice: white rice, parbouled rice,black rice, yellow rice, brown rice, barley rice
3. Nuts: peanuts, ground nut,cashew nut, walnut meat,pine
4. Wheat: Buckwheat,Quinoa,Qatmeal.
5. Vegetable: dry onion,daylily,back fungus,sea vegetables
6. Food: vegetable seeds, cumin seeds,prickly ash seeds,dried shrimps,small shrimp
7. Industrial: plastic, broken glass,quaze,ore,scrap metal,slag,salt,refractory
Sorting Result
Why choose Hons+
1. Over 10 years experience which focus on sorter machine. One of the most advanced manufacturer in Hefei, Anhui.
2. After-Sales service guarantee: We have a professional after sales service team, one-to-one customer service to help customers install and debug.
3. We have service station over Southeast Asia, co-operate re-seller in more than 50 countries.
4. Quality assurance of raw materials: the raw material we purchase are certified qualified products.
5. Quality process assurance: We have been authorized by CE & ISO quality management system, each process of production are under strictly standard.
6. System test: Our technical engineers check the product performance, even every part is subjected to rigorous aging test to ensure that the factory products would being in full compliance with customer requirements.
7. Shipping guarantee: We have professional packaging operation team, independent export qualification to ensure product safety and stability to reach customers in the hands.
