Intelligent Rice Grain Color Sorter Machine Sgs Mini Type

Basic Information
Place of Origin: China
Brand Name: Hons+
Certification: ISO/SGS/CE
Model Number: 6SXZ-63
Minimum Order Quantity: 1 Set
Packaging Details: Wooden Case
Delivery Time: 7 ~ 14 Days
Payment Terms: L/C, T/T
Supply Ability: 200 Sets Per Month
Detail Information
Type: S1 Capacity: 0.1~0.2T/H
Voltage: AC220V/50HZ Power: <=1.5KW
Size: L 910mm * W 1620mm * H 1550mm Weight: 350KGS(+/-5%)
High Light:

Rice Color Sorter Machine Intelligent

,

Sgs Rice Color Sorter Machine

,

0.2T/H Grain Color Sorter Machine


Product Description

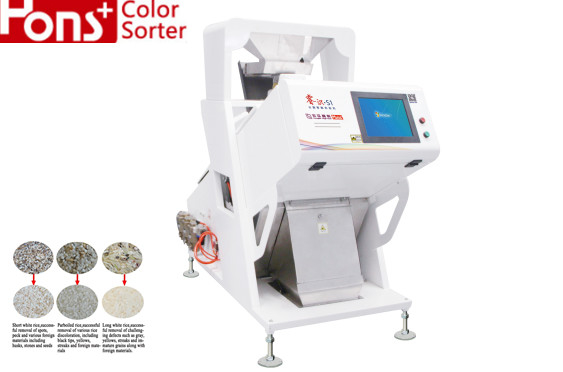

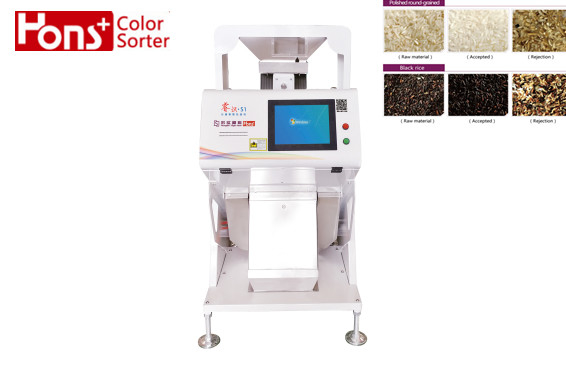

Mini Type Intelligent Rice Grain Sgs Color Sorter Separator Machine



Characteristic



1. Camera
The world's first cloud technology camera can deeply identify tiny spots, light yellow and other impurities that cannot be recognized by ordinary color sorters. Perfect HD scanning, accurate recognition and high calculation.

2. High frequency solenoid valve

The unique high working efficiency and high-quality high-precision solenoid valve of the color sorter, ultra-low air consumption, ensure optimized carry-in rate and high sorting accuracy. It has a complete self-recovery system, low maintenance cost, and a long service life of more than 100 million times.

3. Intelligent image processing system

Using the world's first cloud image acquisition and processing and spectrum analysis technology, it can perform high-speed dynamic acquisition and analysis and display of material classification. It enables real visualization.

4. Lighting system

High-performance LED optical system design and light control technology ensure maintenance-free and reduce energy consumption by 35%.

5. Data transmission system: high speed and stability

Interface: high anti-interference, high transmission speed, high stability

6. Chips for processing

The world's top cloud processing technology, unparalleled arithmetic capabilities and perfect program design create a new era of big data.



CCD color sorter machine parameters


Name
S1 S3 S5 S7
Model 6SXM-63 6SXM-189 6SXM-315 6SXM-441
Capacity(Kg/H) 800Kg-1000Kg 2000Kg-3000Kg 3000Kg-4000Kg 5000Kg-6000Kg
Voltage(V) AC220V/50HZ AC220V/50HZ AC220V/50HZ AC220V/50HZ
POWER(KW) <1.5 <2.4 <3.0 <4.0
Weight(KG) 350Kg 800Kg 1250Kg 1600Kg
Dimension(L*W*H/MM) 910*1620*1550 1628*1595*2040 2210*1595*2010 2836*1595*1850
Air Consumption 0.9 m³/min 1.8m³/min
1.8 m³/min

3 m³/min
Air pressure 0.6-0.8mpa 0.6-0.8mpa 0.6-0.8mpa 0.6-0.8mpa
Air compressor power 4kw 7.5Kw 11kw*2 15kw*2
Air tank   600L 1000L 1000L
Cooling Model wind cooling wind cooling wind cooling wind cooling
Mini Resolution( mm²) 0.03 0.03 0.03 0.03



Applied materials

Intelligent Rice Grain Color Sorter Machine Sgs Mini Type 0

Intelligent Rice Grain Color Sorter Machine Sgs Mini Type 1

Color Sorter in Customers' Site



Intelligent Rice Grain Color Sorter Machine Sgs Mini Type 2

Color Sorter After sale severice

1. A strong central technical team in Hefei, China: Ready for supporting local agent or wholesales with training, advice and technical support.
2. One year full warranty (except for consumable parts) upon the date of purchase.
3. Service line is available for emergency support: telephone, email, video or on site solutions by our technical experts.
4. Serviced and Supported wherever customers are located.
5. Free software update.

Our company

1. Arrive the customer site on the appointed time.

2. 24hours door to door fast response, 7*24hour on-line service.

3. Supply fully descriiption of operation and maintenance of color sorter to help you understand the routine maintaenance and simple troubles hooting.

4. Clean up machine and service area after trouble shooting.

5. Do the comprehensive inspection and maintenance of the machine after trouble shooting to ensure good working condition.

6. Check the performance with customer after service is completed to ensure the good working condition and best sorting performance.

*If you have any problems for operation of the machine,welcome to dial Hongshi High -tech 24-hour service hotline: our service engineers will provide you with warm and thoutful service.

Intelligent Rice Grain Color Sorter Machine Sgs Mini Type 3

Intelligent Rice Grain Color Sorter Machine Sgs Mini Type 4
