| Place of Origin: | Anhui China |
|---|---|
| Brand Name: | Hons |
| Certification: | CE、SGS、ISO9001 |
| Model Number: | S2 |
| Minimum Order Quantity: | Negotiable |
| Price: | Negotiable |
| Packaging Details: | Wood Packaging |
| Delivery Time: | 10-15 Work Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 600Set/Sets Per Month |
| Name: | 6SXM-126(CCD) | Capacity(T/h): | 1.5~2.5 |
|---|---|---|---|
| Voltage(V): | AC220V/50Hz | Power(Kw): | ≤2.0 |
| Weight(Kg): | 500(±5%) | Dimension(L*W*H Mm): | 1220*1620*1550 |
| Color: | White | Channels: | 2 |
| Application: | Sorting | Product Name: | Vegetable Sorting Machine |
| High Light: | 2 Channels Wheat Sorting Machine,CCD Camera Wheat Sorting Machine,2 Channels Wheat color sorter |
||

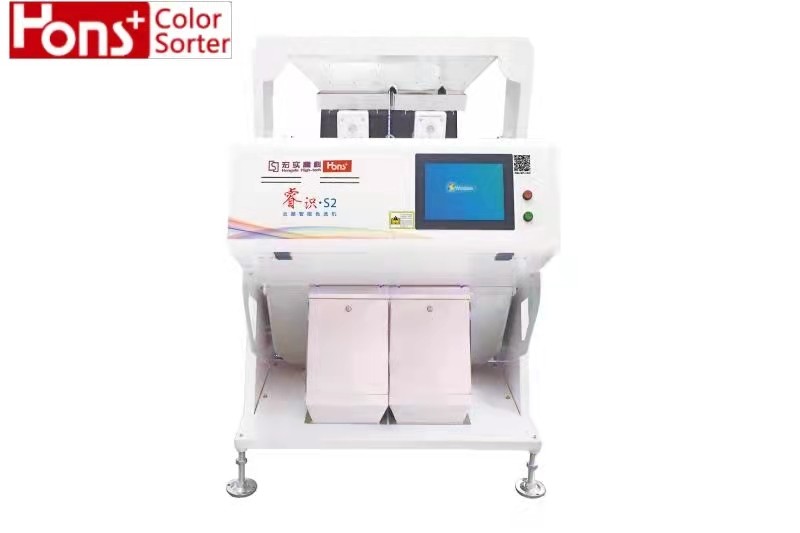

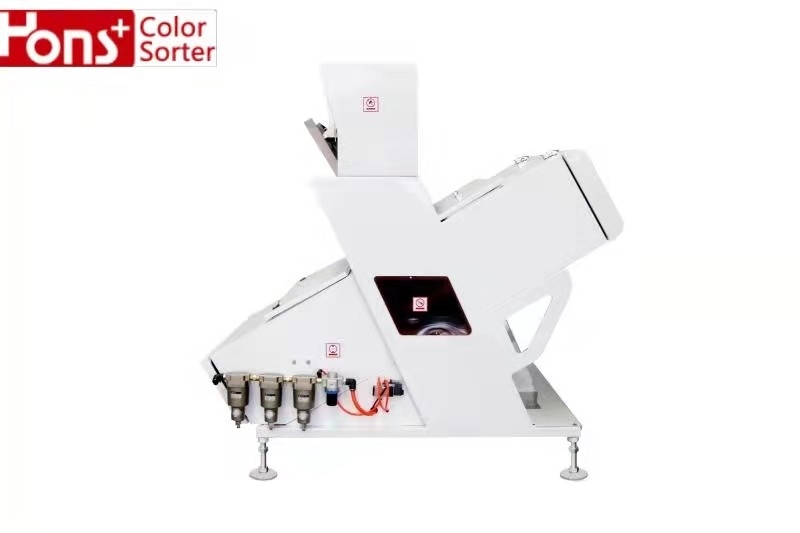

2 Channels 2.0Kw CCD Camera Wheat Sorting Machine
Features:
1. 5000 pixels CCD camera,HD recognition,high speed,identify refinement,good stability;
2. Most advanced LED light,good stability,long life used,low power consumption;
3. Humanized touch panel, easy to learn, more convenient to operate;
4. Powerful software,separate sorting modes with storage and memory function;
5. Matching different specifications chutes for different materials;
6. High frequency electromagnetic valve,can use up to 1.6 billion times;
7. Original imported switch power source, passed 3C authentication.
Technical Parameter
| Model | S1 | S2 | S3 | S4 | S5 | S6 | S7 | S8 | S10 | S12 |
| Capacity(t/h) | 0.8~2.0 | 1.2~2.5 | 1.5~3 | 3~6 | 4~7 | 5~8 | 6~10 | 7~11 | 7~15 | 10~18 |
|
Voltage (V) |
AC220V 50/60Hz | AC220V 50/60Hz | AC220V 50/60Hz | AC220V 50/60Hz | AC220V 50/60Hz | AC220V 50/60Hz | AC220V 50/60Hz | AC220V 50/60Hz | AC220V 50/60Hz | AC220V 50/60Hz |
| Power(KW) | ﹤1.5 | ﹤2 | ﹤2.4 | ﹤2.6 | ﹤3.0 | ﹤3.6 | ﹤4.0 | ﹤4.6 | ﹤5.5 | ﹤7.0 |
|
Air pressure (Mpa) |
0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
|
Dimension (mm) |
910* 1620*1550 |
1220* 1615*1550 |
1628* 1595*2040 |
1870* 1595*2040 |
2210* 1595*2040 |
2528* 1595*2040 |
2836* 1595*2040 |
3152* 1595*2040 |
3910* 1595*2040 |
4594* 1595*2100 |
| Weight (Kg) | 350 | 500 | 800 | 1000 | 1250 | 1400 | 1600 | 1800 | 2250 | 2700 |
Sorting materials
Rice: rice/brown rice/sticky rice/millet/sorghum/myotonin/back rice
Beans:kidney bean/soybean/mung/red bean/black bean/pea/broad bean/coffee bean/lentil/chickpea
Tea:green tea/back tea/dark tea/white tea/yellow tea
Cereals:corn/barlley/wheat seed/pepper seed/onion seed
Nuts&Kernels: sunflower seed/pumpkin seed/watermelon seed/cashew nut/peanut/pistachio
Dehydrated vegetables:pepper/garlic flake/carrot granule/onion/cabbage
Idustril goods: quarta sand/recycled plastic/salt/mineral/monosodium glutamate/white sugar/pill/pearl
Economic crops:raisin/medlar/lilly/red date/shrimp bran/tobacco/agaric
About us
1. The leading photoelectric detection and classification equipment supplier.
2. W supply optic detection and classification equipment as rice color sorting machine, grain CCD color sorter machine,grain color sortingmachine,grain color sorting machine, tea color sorting machine,belt color sorting machine ect,and also offfer the effective fast solution for relative industry.
3.Hons+ brand series product have been popular both in domastic and oversea market many years, we have exported over than 20 countries with high praise from customers.
