products

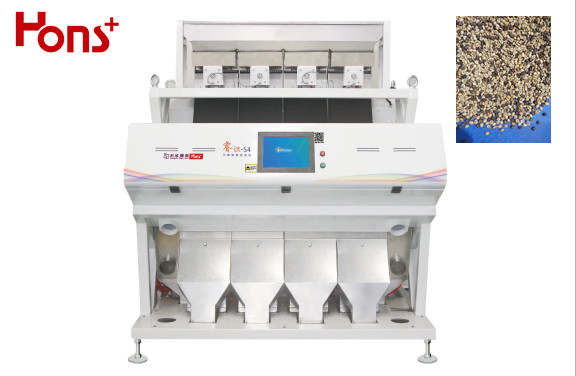

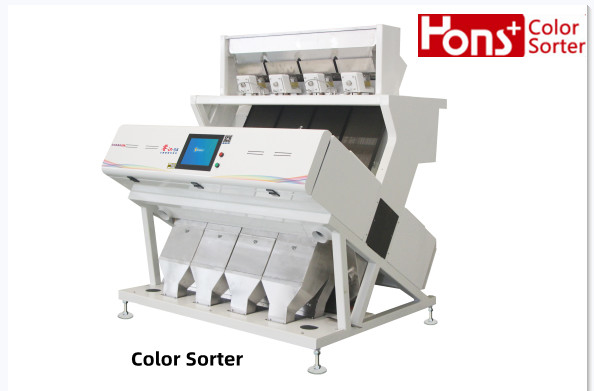

White Coffee Bean Color Sorter 4 Channels Easy Operation

Basic Information
Place of Origin: Anhui,China
Brand Name: Hons
Certification: ISO9001/SGS/CE
Model Number: S4
Minimum Order Quantity: Negotiable
Price: $10000-$14500
Packaging Details: Wooden case
Delivery Time: 10-15 Work Days
Payment Terms: L/C, T/T
Supply Ability: 100sets per month
Detail Information
Product Name: Seafood Color Sorter Voltage(V): AC220V/50Hz
Name: 6SXM-252(CCD) Capacity(T/h): 3.0~6.0
Power(Kw): ≤2.6 Weight(Kg): 1000(±5%)
Dimension(L*W*H Mm): 1880*1595*2040 Color: White
Channels: 4 Application: Sorting
High Light:

Easy Operation Beans Color Sorter

,

4 Channels Coffee Beans Color Sorter

,

White Coffee Bean Color Sorter


Product Description

4 Channels Coffee Beans Color Sorter Processing Machine Easy Operation

Technical characteristic

1. Automatically collecting hyper space data such as color,shape,size,and defect to cachieve accurate acquisition of raw materila features

2. The world's leading full-color linear array scanning technology and DPS+FPGA parallel multi-line pipeline processing technologgy to solve the problem, use multiple intelligent algorithm, high accuracy sorting, special for small speck, light yellow, chalky, discolor.(5400 pixels)

3. The self-developed magnetically controlled high-frequency solenoid valve achieves flexible contact between devices and has a service life of more than 6 to 10 billion times. Meanwhile, intelligent repair technology reduces maintenance costs and extends liofetime of valve.

4. The advances digital non-polar intelligent dimming technology can automatically match the best brightness according to the material selection requirements and the changes of enviroment to guarantee the sorting perfoermance.


5. Intelligent operation platform with storage of 100 sorting modes can achieve multiple functions of one machine, user-friendly control and easy to operate.

6. The patented intelligent dust-extraction system can rapidly remove light objects and dusts adhered to the materials, for which ensuring the sorting accuracy and improving machine efficient.


Technical Parameter

Model S1 S2 S3 S4 S5 S6 S7 S8 S10 S12
Capacity(t/h) 0.8~2.0 1.2~2.5 1.5~3 3~6 4~7 5~8 6~10 7~11 7~15 10~18

Voltage

(V)

AC220V 50/60Hz AC220V 50/60Hz AC220V 50/60Hz AC220V 50/60Hz AC220V 50/60Hz AC220V 50/60Hz AC220V 50/60Hz AC220V 50/60Hz AC220V 50/60Hz AC220V 50/60Hz
Power(KW) ﹤1.5 ﹤2 ﹤2.4 ﹤2.6 ﹤3.0 ﹤3.6 ﹤4.0 ﹤4.6 ﹤5.5 ﹤7.0

Air pressure

(Mpa)

0.6-0.8 0.6-0.8 0.6-0.8 0.6-0.8 0.6-0.8 0.6-0.8 0.6-0.8 0.6-0.8 0.6-0.8 0.6-0.8

Dimension

(mm)

910*

1620*1550

1220*

1615*1550

1628*

1595*2040

1870*

1595*2040

2210*

1595*2040

2528*

1595*2040

2836*

1595*2040

3152*

1595*2040

3910*

1595*2040

4594*

1595*2100

Weight (Kg) 350 500 800 1000 1250 1400 1600 1800 2250 2700





























White Coffee Bean Color Sorter 4 Channels Easy Operation 0



Sorting materials

1. Rice, Black rice, Yellow rice, Red rice, Brown rice, Chinesesorghum, Barley rice

2. Coffee beans, Black beans, Soybeans, Mungbeans, broad beans.

3. Peanuts, Cashew nuts, Walnut meat, Pine nuts.

4. Wheat, Buckwheat, Quinoa, Qatmeal.

5. Lily, Raisins, Peach gum, Red jujube, Dry onion slices, Drydrated carrot slices, Day lily, Blackfungus

6. Industrial: plastic, broken glass,quaze,ore,scrap metal,slag,salt,refractory

7. Food: vegetable seeds, cumin seeds,prickly ash seeds,dried shrimps,small shrimp



Sorting performance

White Coffee Bean Color Sorter 4 Channels Easy Operation 1

White Coffee Bean Color Sorter 4 Channels Easy Operation 2



About us

1. Arrive the customer site on the appointed time.

2. 24hours door to door fast response, 7*24hour on-line service.

3. Supply fully descriiption of operation and maintenance of color sorter to help you understand the routine maintaenance and simple troubles hooting.

4. Clean up machine and service area after trouble shooting.

5. Do the comprehensive inspection and maintenance of the machine after trouble shooting to ensure good working condition.

6. Check the performance with customer after service is completed to ensure the good working condition and best sorting performance.


*If you have any problems for operation of the machine,welcome to dial Hongshi High -tech 24-hour service hotline: our service engineers will provide you with warm and thoutful service.


White Coffee Bean Color Sorter 4 Channels Easy Operation 3
