| Place of Origin: | Anhui,China |
|---|---|
| Brand Name: | Hons |
| Certification: | ISO9001/SGS/CE |
| Model Number: | S4 |
| Minimum Order Quantity: | Negotiable |
| Price: | $10000-$14500 |
| Packaging Details: | Wooden case |
| Delivery Time: | 10-15 Work Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 100sets per month |
| Product Name: | Seafood Color Sorter | Voltage(V): | AC220V/50Hz |
|---|---|---|---|
| Name: | 6SXM-252(CCD) | Capacity(T/h): | 3.0~6.0 |
| Power(Kw): | ≤2.6 | Weight(Kg): | 1000(±5%) |
| Dimension(L*W*H Mm): | 1880*1595*2040 | Color: | White |
| Channels: | 4 | Application: | Sorting |
| High Light: | Remote Control Coffee Bean Color Sorter,Remote Control Coffee Bean Sorter,White Coffee Bean Sorter |
||

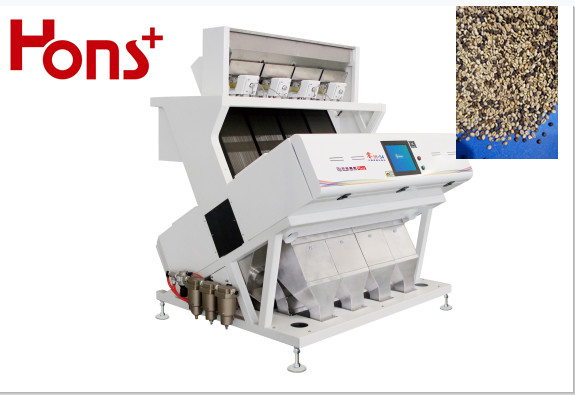

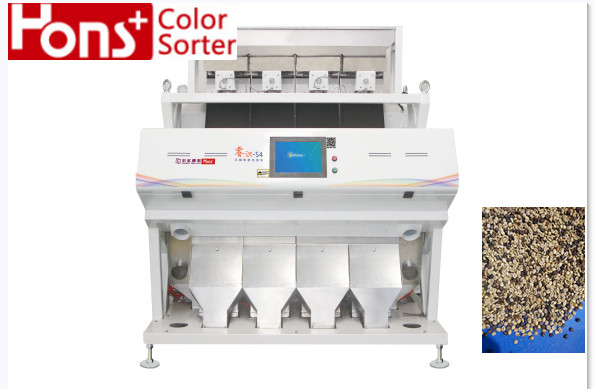

Optical Remote Control SGS Coffee Bean Color Sorter Machine
Technical characteristic
1. High-quality distinction system,adopting HD full color 5000+PX 2048 CCD image sensor that reach the aim of distinguishing 0.1mm are of object.
2. The sorter adopts high quality Nikon special industrial lenses designed and manufactured for color sorting .
3. Image processing system,adopting the chips of FPGA and DSP from companies of ALTER and TI.
4. The forth generation processor technology of EPGA which sharply promoted the processing speed.
5. Master control system adopts ARM high-end embedded processor, effectively enhance control speed and color selection precision.
6. Overall new chute design,specoal technology chute makes material transfer more steady and output increased 20%-30%,meanwhile, we also could provide plate-type and slot-type for meeting the various demands.
7. Adjustable ligh source technology,the overall upgrade LED light source could adjust the outpit power of ligh source according to those different materials,ensure the accurate obtaining of materials's information;LED lighting system with radiating function makes it in longer using,lower energy consumption and better performance.
Technical Parameter
| Model | S1 | S2 | S3 | S4 | S5 | S6 | S7 | S8 | S10 | S12 |
| Capacity(t/h) | 0.8~2.0 | 1.2~2.5 | 1.5~3 | 3~6 | 4~7 | 5~8 | 6~10 | 7~11 | 7~15 | 10~18 |
|
Voltage (V) |
AC220V 50/60Hz | AC220V 50/60Hz | AC220V 50/60Hz | AC220V 50/60Hz | AC220V 50/60Hz | AC220V 50/60Hz | AC220V 50/60Hz | AC220V 50/60Hz | AC220V 50/60Hz | AC220V 50/60Hz |
| Power(KW) | ﹤1.5 | ﹤2 | ﹤2.4 | ﹤2.6 | ﹤3.0 | ﹤3.6 | ﹤4.0 | ﹤4.6 | ﹤5.5 | ﹤7.0 |
|
Air pressure (Mpa) |
0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
|
Dimension (mm) |
910* 1620*1550 |
1220* 1615*1550 |
1628* 1595*2040 |
1870* 1595*2040 |
2210* 1595*2040 |
2528* 1595*2040 |
2836* 1595*2040 |
3152* 1595*2040 |
3910* 1595*2040 |
4594* 1595*2100 |
| Weight (Kg) | 350 | 500 | 800 | 1000 | 1250 | 1400 | 1600 | 1800 | 2250 | 2700 |
Sorting materials
Rice: rice/brown rice/sticky rice/millet/sorghum/myotonin/black rice
Beans: kidney bean/soybean/mung/red bean/black bean/pea/ broad bean/coffee bean/lentil/chickpea
Tea: green tea/black tea/dark tea/white tea/ yellow tea
Cereals: corn/barley/wheat/oat/sesame/malt
Seeds: cotton seed/corn seed/wheat seed/pepper seed/onion seed
Nuts & Kernels: sunflower seed/pumpkin seed/watermelon seed/cashew nut/peanut/walnut/pistachio
Dehydrated Vegetables: pepper/garlic flake/carrot granule/onion/cabbage
Industrial Goods: quartz sand/recycled plastic/salt/mineral/monosodium glutamate/white sugar/pill/pearl
Economic Crops:raisin/medlar/lily/red date/shrimp bran/tobacco/agaric
Sorting performance
About us
1. Arrive the customer site on the appointed time.
2. 24hours door to door fast response, 7*24hour on-line service.
3. Supply fully descriiption of operation and maintenance of color sorter to help you understand the routine maintaenance and simple troubles hooting.
4. Clean up machine and service area after trouble shooting.
5. Do the comprehensive inspection and maintenance of the machine after trouble shooting to ensure good working condition.
6. Check the performance with customer after service is completed to ensure the good working condition and best sorting performance.
*If you have any problems for operation of the machine,welcome to dial Hongshi High -tech 24-hour service hotline: our service engineers will provide you with warm and thoutful service.
