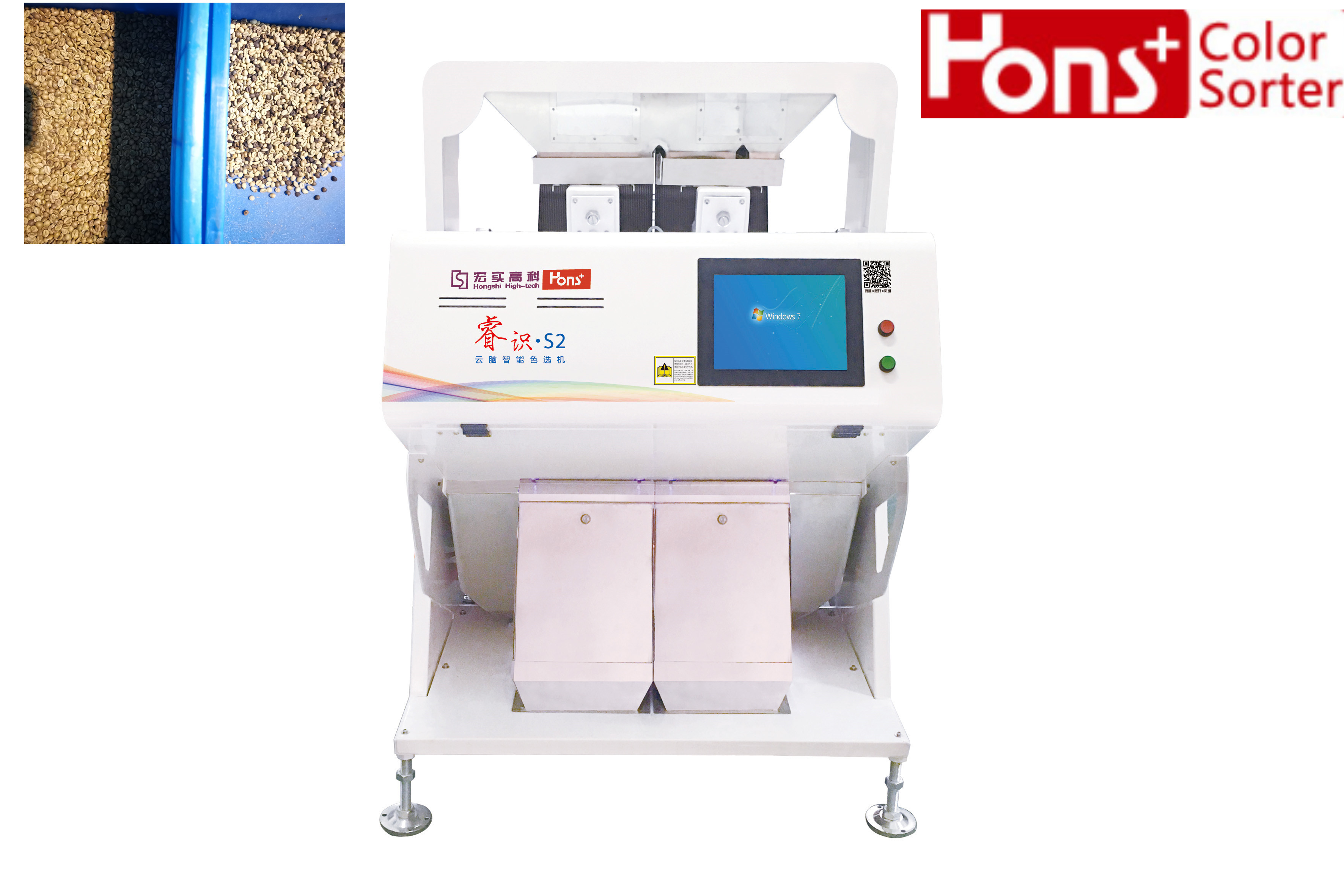

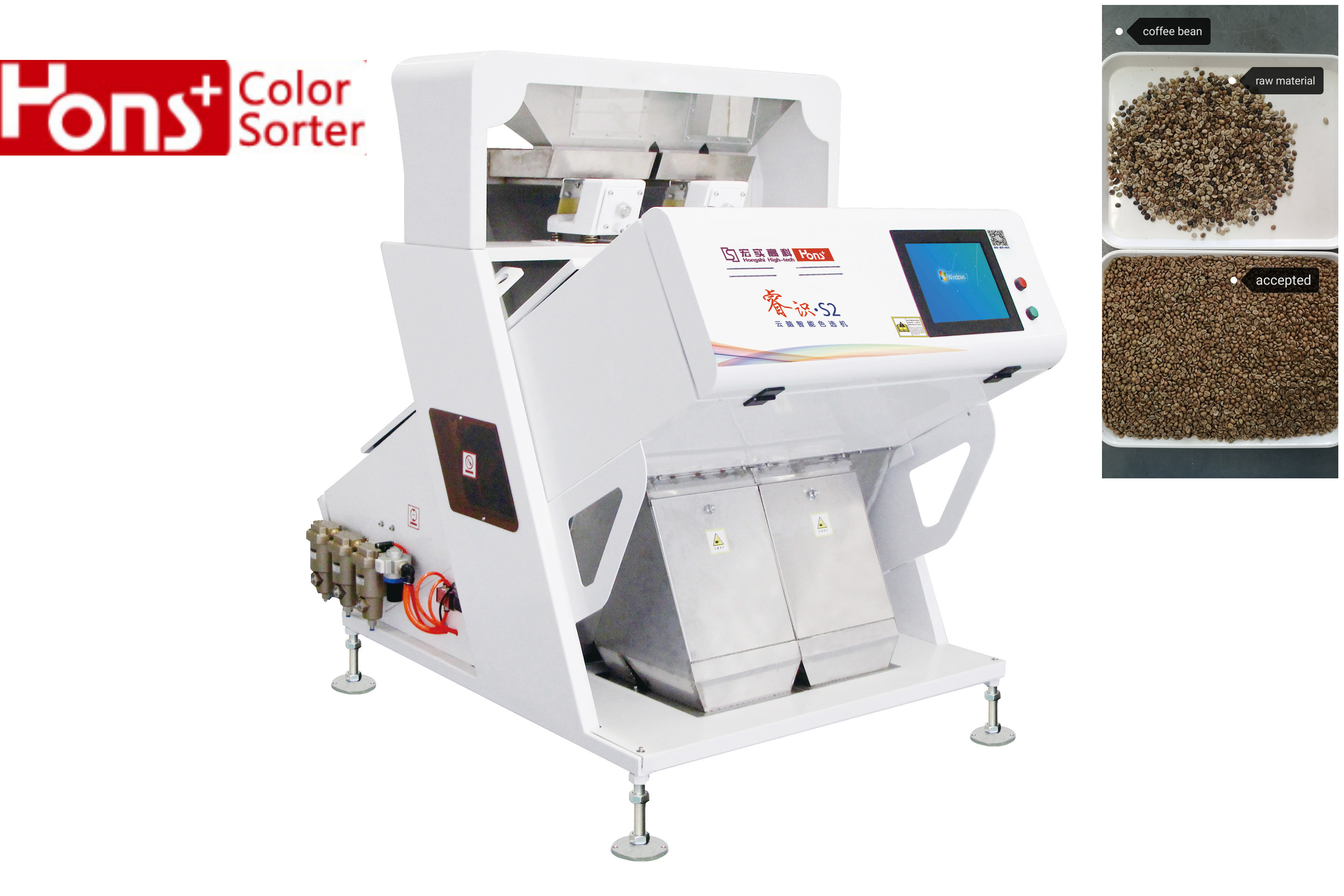

New Intelligent High Precision Coffee Beans Colour Separator Machine

Basic Information
Place of Origin: Anhui,China
Brand Name: Hons
Certification: CE/SGS
Model Number: 6SXM-126(CCD)A
Minimum Order Quantity: 1 pc
Price: $7500-$12000
Packaging Details: Export standard wooden cases
Delivery Time: 5-8 working days
Payment Terms: D/A, D/P, T/T, L/C
Supply Ability: 500sets/month
Detail Information
Product Name: CCD Color Resorter Input Voltage: AC220V/50HZ
Capacity(T/H): 1.2-2.5T/H Prouct Size: L 1220mm * W 1620mm * H 1550mm
Power(KW): ≤2 Warranty: 1 Year
CCD Sensor: Toshiba Feature: High Quality FPGA Processing
Channels: 126 LED Source: LED Lamps

Product Description

New Intelligent High Precision Coffee Beans Colour Separator Machine



Sorting material



Rice: rice/brown rice/sticky rice/millet/sorghum/myotonin/black rice



Beans: kidney bean/soybean/mung/red bean/black bean/pea/ broad bean/coffee bean/lentil/chickpea



Tea: green tea/black tea/dark tea/white tea/ yellow tea



Cereals: corn/barley/wheat/oat/sesame/malt



Seeds: cotton seed/corn seed/wheat seed/pepper seed/onion seed



Nuts & Kernels: sunflower seed/pumpkin seed/watermelon seed/cashew nut/peanut/walnut/pistachio



Dehydrated Vegetables: pepper/garlic flake/carrot granule/onion/cabbage



CCD color sorter machine parameters



  Name S1 S2 S3 S4 S5 S7
Model 6SXM-63 6SXM-126 6SXM-252 6SXM-252 6SXM- 315 6SXM-441
Capacity(T/H) 0.8-1.0 1.0-1.6 1.6-2.2 2.4-3.0 3.0-4.0 4.0-6.0
Voltage(V) AC220V/50HZ AC220V/50HZ AC220V/50HZ AC220V/50HZ AC220V/50HZ AC220V/50HZ
POWER(KW) <1.5 <2.0 <2.4 2.6 3.0 <4.0
Weight(KG) 350 500 800 1000 1250 1600
Dimension(L*W*H/MM) 910*1620*1550 1220*1620*1550 1628*1595*2040 1870*1595*2040 2210*1595*2040 2836*1595*2040
Air compressor power 4kw 5.5kw 5.5kw 11kw 11KW*2 22kw



Technical Strengths



1. Advanced image acquisition system
Hons color sorters use high-resolution monochrome cameras or RGB cameras (5400+ pixels) and high-quality (Tosiba) industrial lenses for clear and accurate image capture. Cameras can instantly capture microscopic defects in materials.

2. Intelligent image processing algorithm
Color sorting algorithms such as grayscale, color difference, and HSV are perfectly combined with shape sorting algorithms such as size, roundness, and texture, which successfully solve a series of difficult color sorting problems and greatly improve sorting accuracy.

3. Unique chute processing technology
Special anodizing and hardening technology can greatly improve the smoothness and wear resistance of the channel to ensure high production.

4. High-quality solenoid valve (injector)
Equipped with high quality solenoid valves for optical classifiers. The independently developed intelligent magnetic control high-frequency solenoid valve has a fast response speed and ensures the classification accuracy when the valve is opened. Quick valve closing response reduces execution speed.

5. Efficient and reliable light source
Advanced LED lighting technology with the advantages of ultra-high intensity, long life and perfect performance.

6. Simple operation, easy to learn and use
Simple optical system design, precise automatic correction system, combined with well-designed human-machine interface, simplify the complexity of machine debugging and use, ensure simple operation, and the machine is easy to learn and use.

Rice Mill CCD Color Sorter Machine SGS Mini 1.0 T/H 0




Sorting performance



New Intelligent High Precision Coffee Beans Colour Separator Machine 1


New Intelligent High Precision Coffee Beans Colour Separator Machine 2




Color Sorter After sale severice


1. A strong central technical team in Hefei, China: Ready for supporting local agent or wholesales with training, advice and technical support.
2. One year full warranty (except for consumable parts) upon the date of purchase.
3. Service line is available for emergency support: telephone, email, video or on site solutions by our technical experts.
4. Serviced and Supported wherever customers are located.
5. Free software update.
