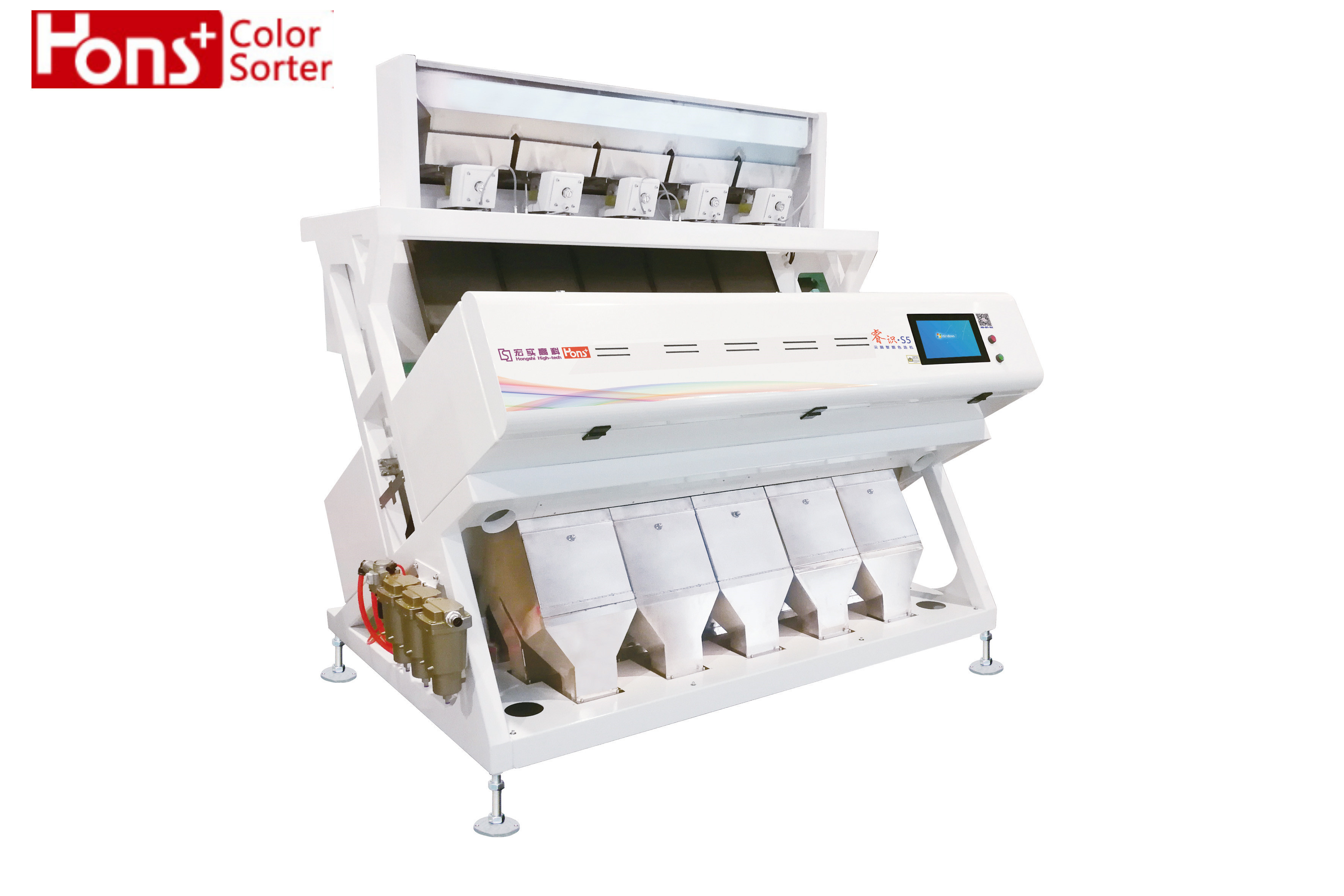

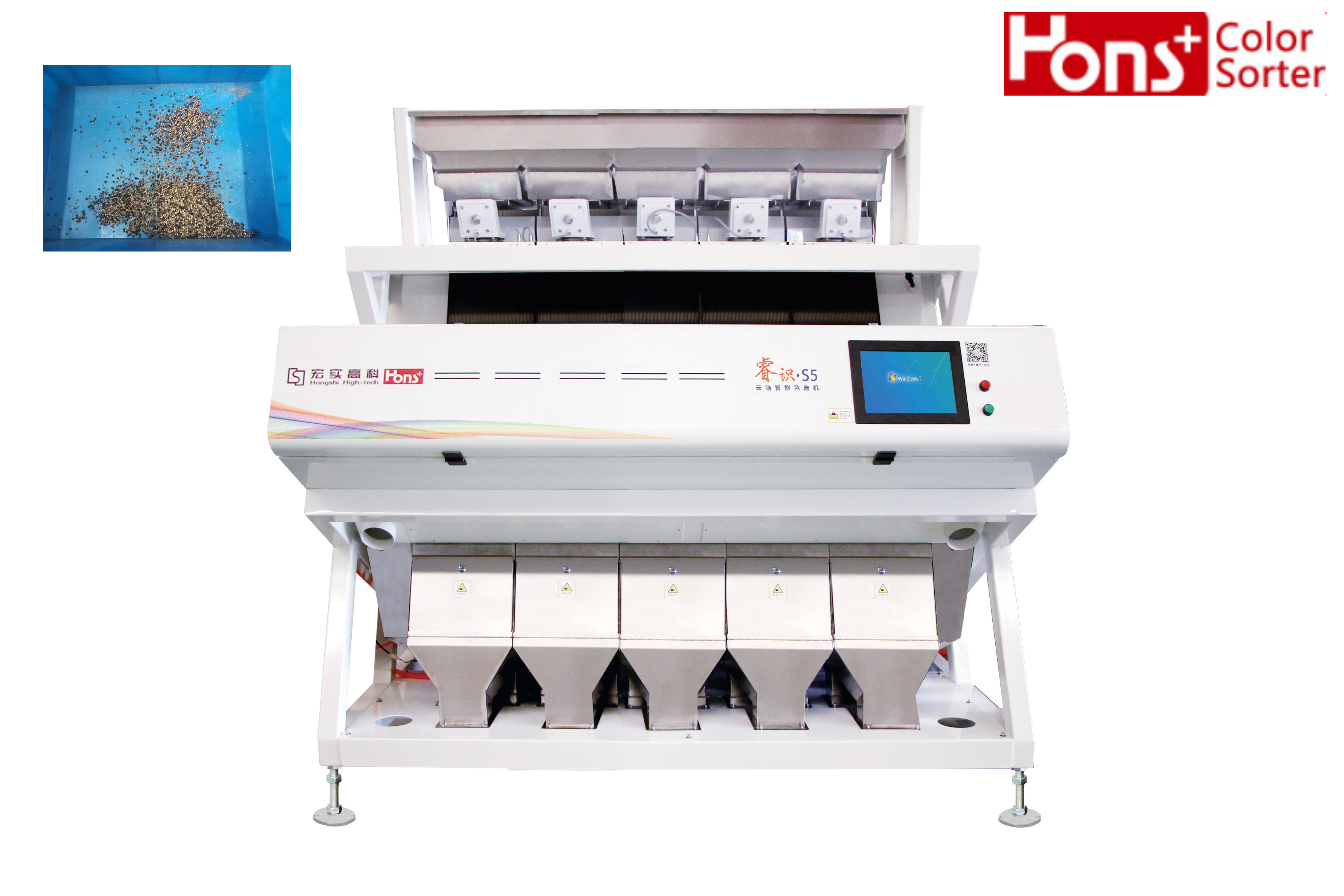

CCD Intelligent Buckwheat Grain Color Sorter processing Machine High Sensitivity

Basic Information
Place of Origin: China
Brand Name: Hons+
Certification: ISO/SGS/CE
Model Number: S5
Minimum Order Quantity: 1 set
Price: $13500-$18000
Packaging Details: Wooden case
Delivery Time: 5-8 worker days
Payment Terms: L/C, D/P, D/A, T/T
Supply Ability: 500sets/month
Detail Information
Power(Kw): 3.0 Dimension(L*W*Hmm): 2210*1595*2040
Capacity(T/h): 3.0t-4.0t Voltage(V): AC220V/50Hz
Weight(Kg): 1250kg Applicable Material: Peanut/Rice/grain
Pixels: 54 Million Feature: High Sensitivity
Product Name: CCD Color Sorter Light Source: LED

Product Description

CCD Intelligent Buckwheat Grain Color Sorter Processing Machine High Sensitivity

Main Features

1. Using 5400 + high performance CCD sensor resolution 0.1mm.



2. The sorter uses high quality special industrial lenses to design and manufacture color sorting.



3. High speed FPGA technology signal processor with fast detection and high recognition rate.



4. The whole unit adopts intelligent closed-loop control.



5. Simple Parameter Settings and operations Simple operations.



6. High speed air value is used to ensure fast response, low power consumption and long life.



7. The classifier uses intelligent temperature and air pressure control technology to ensure the optimal operation of the entire machine.



8. Fault alarm automation and modular construction make it easy to repair.



Technology parameters


Name
S1
S2
S5
S6
Model
6SXM-63
6SXM-126
6SXM-315
6SXM-378
Capacity(Kg/H)
300Kg-400Kg
300Kg-800Kg
1200Kg-1600Kg
1800Kg-3000Kg
Voltage(V)
AC220V/50HZ
AC220V/50HZ
AC220V/50HZ
AC220V/50HZ
POWER(KW)
<1.5
<2.0
<3.0
<3.6
Weight(KG)
350Kg
500Kg
1250Kg
1400Kg
Dimension(L*W*H/MM)
910*1620*1550
1220*1620*1550
2210*1595*2040
2528*1595*2040
Air Consumption
0.9 m³/min
1.8m³/min

1.8 m³/min

3 m³/min
Air pressure
0.6-0.8mpa
0.6-0.8mpa
0.6-0.8mpa
0.6-0.8mpa
Air compressor power
4kw
5.5Kw
11kw*2
15kw*2
Air tank

300L
1000L
1000L
Cooling Model
wind cooling
wind cooling
wind cooling
wind cooling
Mini Resolution( mm²)
0.03
0.03
0.03
0.03



CCD Intelligent Buckwheat Grain Color Sorter processing Machine High Sensitivity 0



Sorting materials

Rice: rice/brown rice/sticky rice/millet/sorghum/myotonin/black rice



Beans: kidney bean/soybean/mung/red bean/black bean/pea/ broad bean/coffee bean/lentil/chickpea



Tea: green tea/black tea/dark tea/white tea/ yellow tea



Cereals: corn/barley/wheat/oat/sesame/malt



Seeds: cotton seed/corn seed/wheat seed/pepper seed/onion seed



Nuts & Kernels: sunflower seed/pumpkin seed/watermelon seed/cashew nut/peanut/walnut/pistachio


Sorting performance

CCD Intelligent Buckwheat Grain Color Sorter processing Machine High Sensitivity 1



CCD Intelligent Buckwheat Grain Color Sorter processing Machine High Sensitivity 2



FAQ


1. How many days for production?
In general,within8-12workers days after getting deposit payment.

2. Are you a trading company or a factory,will it be cheaper to buy from your side?
More than 15 years of professional manufacturing experience, more than 10years exporting experience overseas,more reliable quality,more timely service.
The same quality, more favorable price.

3. Do you provide product installation,training and after-sales service?
Most products can be installed and trained through online video and text mode.If special products need to be installed on site,we will arrange technicians to install and debug on site.

4. We are small buyer , can we buy your products locally , do you have local agents?
If you need to buy locally ,please tell us your region name,we can recommend the most suitable local dealer for you.



Why Choose Hons+:



1. Arrive the customer site on the appointed time.



2. 24hours door to door fast response, 7*24hour on-line service.



3. Supply fully descriiption of operation and maintenance of color sorter to help you understand the routine maintaenance and simple troubles hooting.



4. Clean up machine and service area after trouble shooting.



5. Do the comprehensive inspection and maintenance of the machine after trouble shooting to ensure good working condition.



6. Check the performance with customer after service is completed to ensure the good working condition and best sorting performance.



 CCD Intelligent Buckwheat Grain Color Sorter processing Machine High Sensitivity 3

CCD Intelligent Buckwheat Grain Color Sorter processing Machine High Sensitivity 4

CCD Intelligent Buckwheat Grain Color Sorter processing Machine High Sensitivity 5
