| Place of Origin: | China |
|---|---|
| Brand Name: | Hons+ |
| Certification: | ISO/SGS/CE |
| Model Number: | SL21 |
| Minimum Order Quantity: | 1 set |
| Price: | $9500-$20000 |
| Packaging Details: | Wooden case |
| Delivery Time: | 5-8 worker days |
| Payment Terms: | L/C, D/P, D/A, T/T |
| Supply Ability: | 500sets/month |
| Power（Kw）: | 2.5 | Dimension(L*W*Hmm): | 2920*1220*1720 |
|---|---|---|---|
| Capacity(T/h): | 1.0t-1.5t | Voltage(V): | AC220V/50Hz |
| Weight(Kg): | 2300 | Applicable Material: | Plastic |
| Pixels: | 54 Million | Feature: | High Sensitivity |
| Product Name: | CCD Color Sorter | ||
| High Light: | Broken Glass Belt Color Sorter,Broken Glass Color Sorter Machine,2.5KW Belt Color Sorter |
||

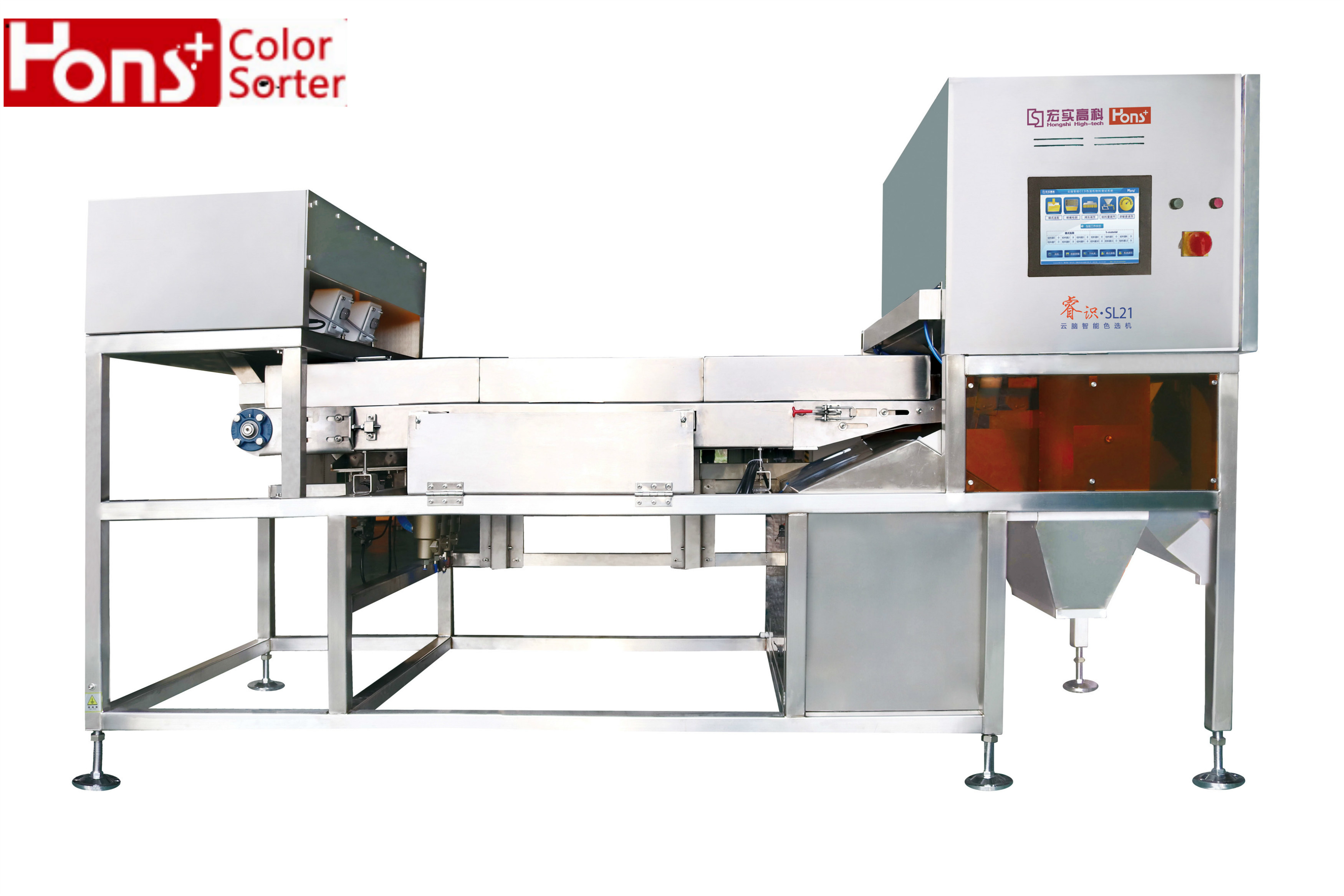

Belt color sorter machine features
1. Belt horizontal conveying system, with small drop, large output and low material broken rate, is suitable for color sorting of spme special materials with irregular shape.
2. The world's top CCD sensor with ultra-high resolution can be prepared to deal with various materials.The minimum resolution in the range of0.04MM2, the tiny spots, black spots signal amplification processing needle.
3. Double layer structure design for ore, plastic and other materials with high impurities, the required materials can be extracted at single time sorting.
4.The industial leading intelligent size and shape sorting function can efftively identify the size and shape of materials.
5. Massive database with storage of unlimited modecan achieve multiple function of one mach
Belt CCD color sorter machine parameters
| Brand | Hons+ |
|
Sorting Accuracy(%):
|
≥99.9 |
|
Carryover Rate(bad:good):
|
≥12:1 |
| Capacity:(kg/hour) | 1000Kg-1200Kg |
|
Voltage:
|
220V/50Hz |
| Weight(kg): | 2300 |
| Diamension/Size (L*W*H)mm | 2920*1220*1720 |
| Package: |
Wooden Case
|
Selection of materials
Industrial Goods: Quartz sand/recycled plastic/salt/mineral/monosodium glutamate/white sugar
Ore/crops/scrap metal/refractory
Chinese traditional medicinal : Licorice/astragalus propinquus schischkin/ salvia miltiorrhiza bge/coastal glehnia root
Food: Dried shrimp/Pecans/peanuts/garlic/dry onion slices/dehydratedcarrot slices/lotus seeds

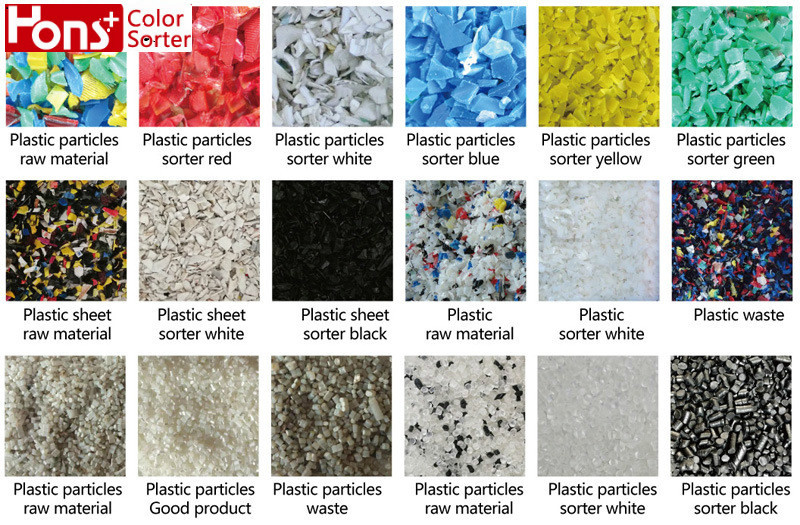

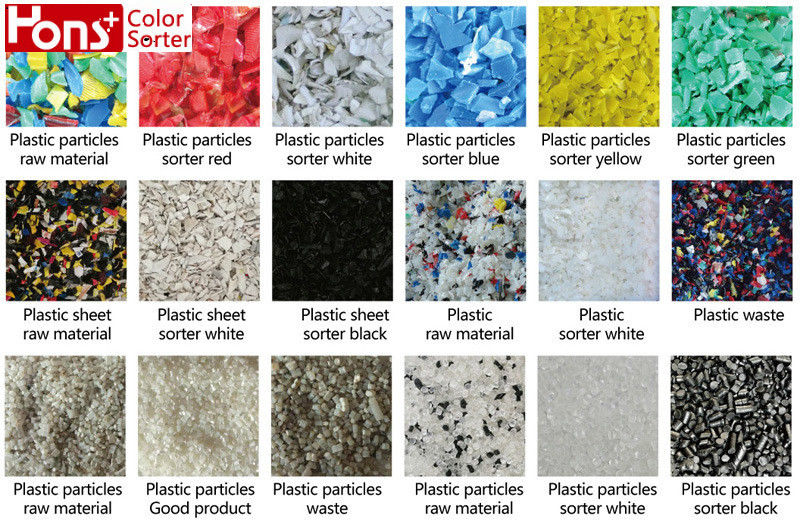

Sorting performance
FAQ
1. How many days for production?
In general,within8-12workers days after getting deposit payment.
2. Are you a trading company or a factory,will it be cheaper to buy from your side?
More than 15 years of professional manufacturing experience, more than 10years exporting experience overseas.
3. We are small buyer , can we buy your products locally , do you have local agents?
If you need to buy locally ,please tell us your region name,we can recommend the most suitable local dealer for you.
About us
1. The leading photoelectric detection and classification equipment supplier in China.
2. We supply optic detection and classificationequipment as rice color sorting machine, grain color sorting machine, grain colorsorting machine,tea color sorting machine,belt color sorting machine ect,And also offer the effective fast solution for relative industry.
3. Hons+ brand series product have been popular both in domastic and oversea market many years, we have exported over than 45countries with high praise from customers.
