Capacity: | 0.8~2.0T/H | Power: | <= 1.5KW |
---|---|---|---|
Size: | L 910mm * W 1620mm * L 1550mm | Weight: | 350 KGS (+/-5%) |
Product Name: | CCD Color Sorter | ||
High Light: | Cereal Purifying Mini Color Sorter,CCD Mini Color Sorter,Cereal spectrum Color Sorter |

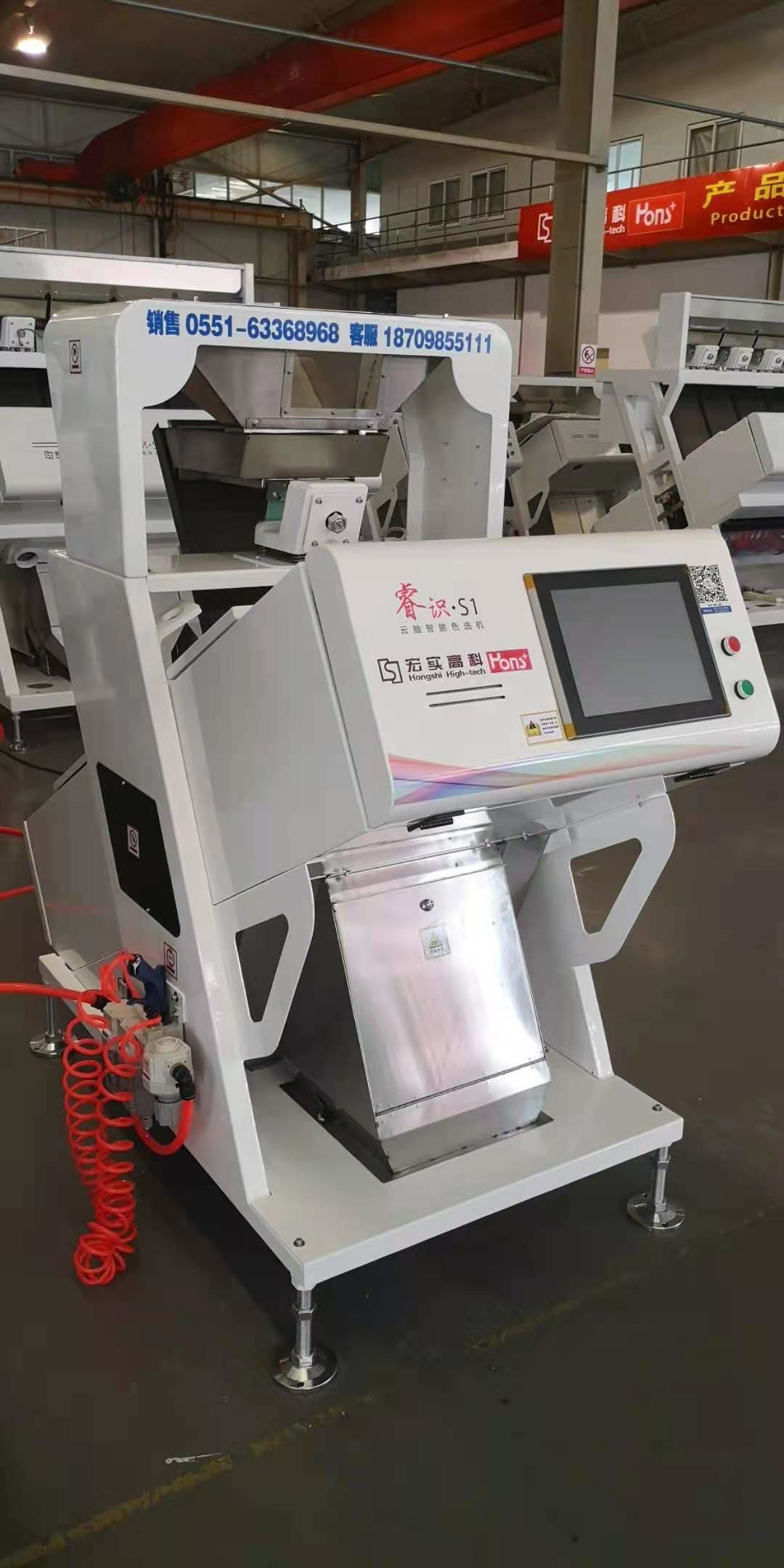

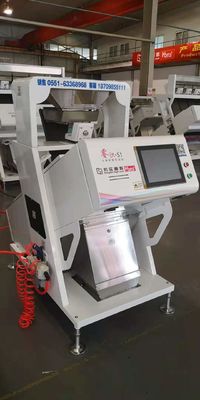

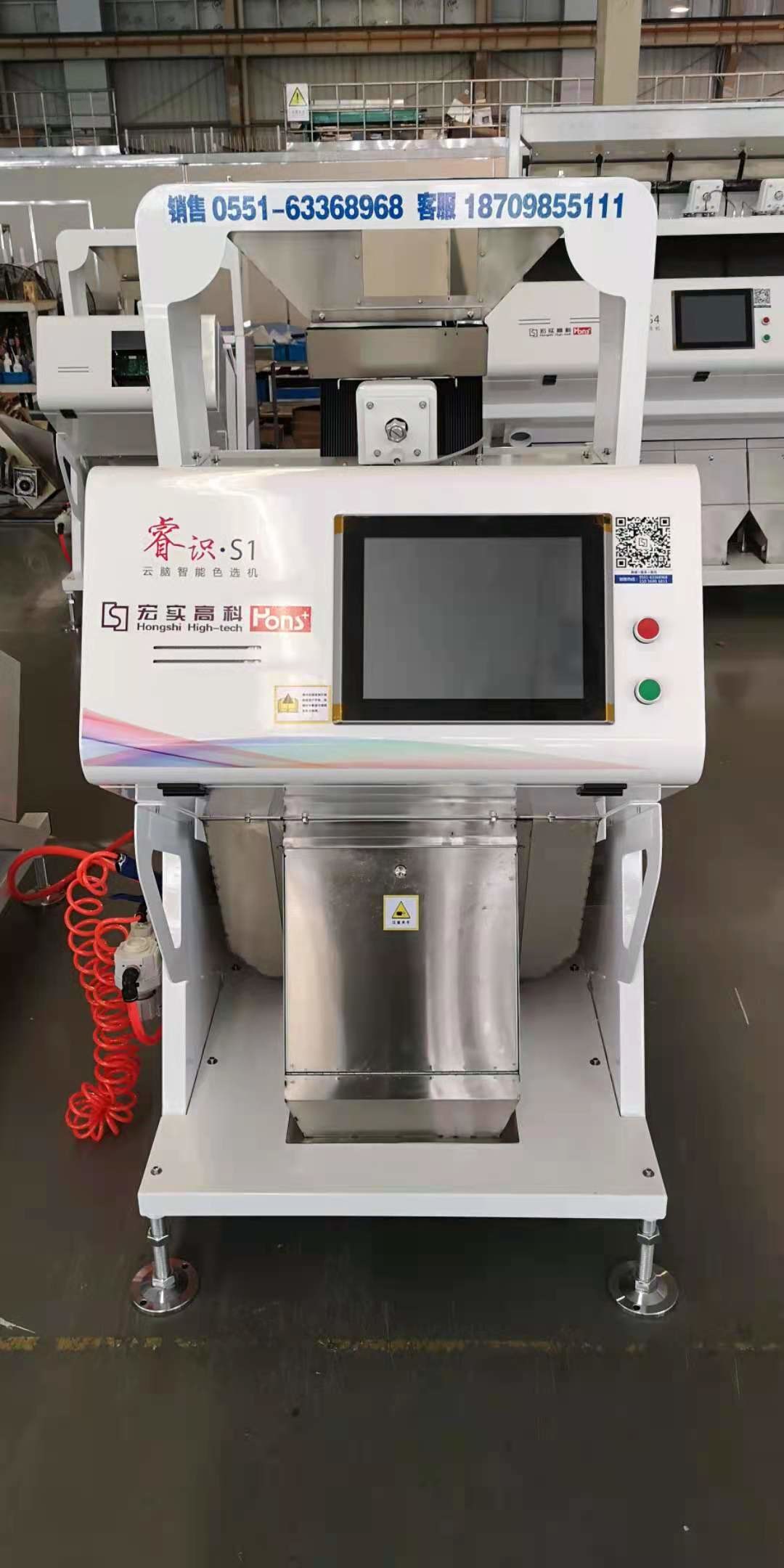

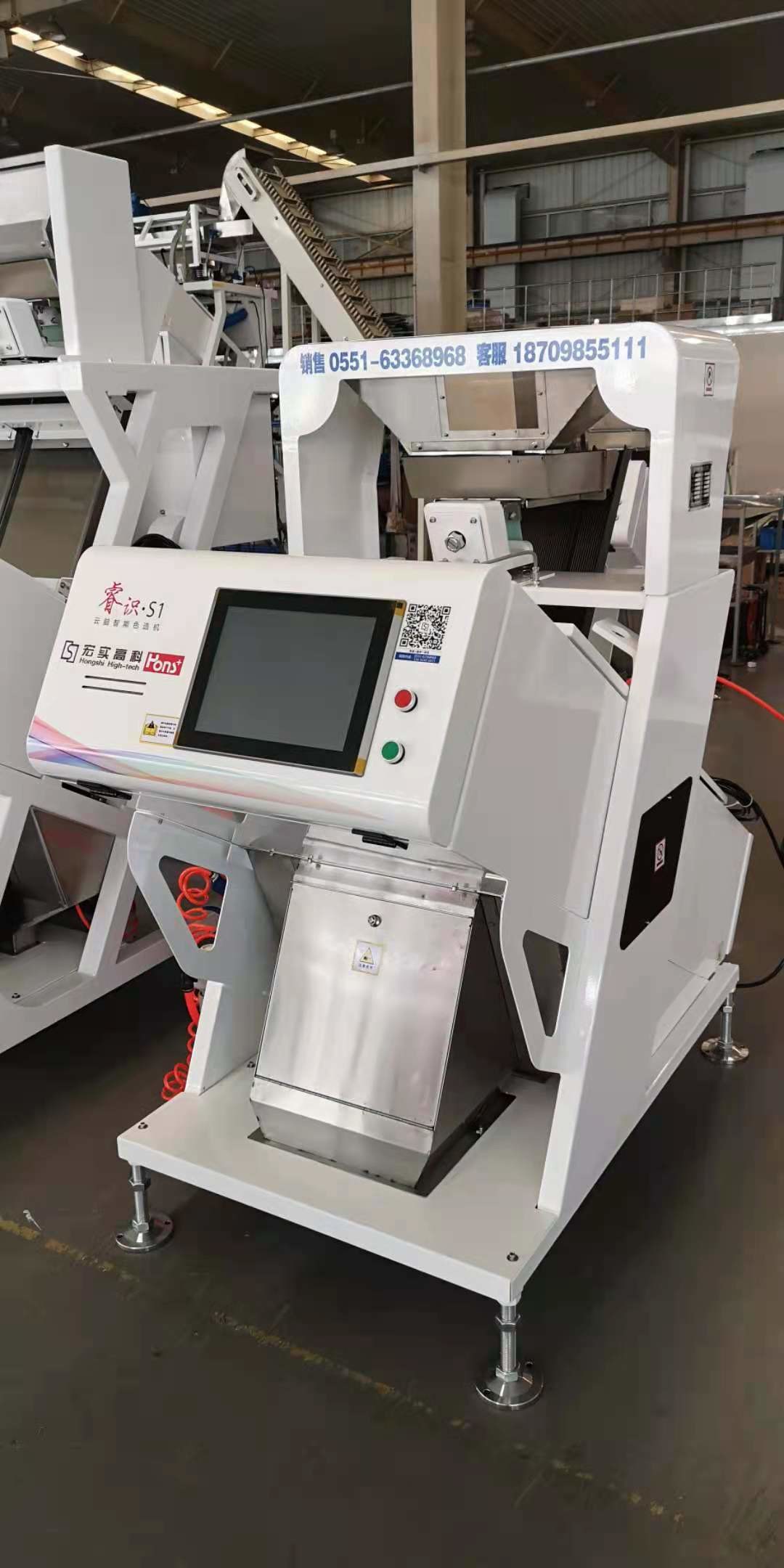

Hongshi Brand Multi-functional CCD Color Sorting Machine Manufacturer
Description
Color Sorters are machines used on the production lines in bulk food processing and other industries. They separate items by their colors, detecting the colors of things that pass before them, and using mechanical ejection devices to divert items whose colors do not fall within acceptable or fall within rejectable color ranges.
Characteristics
1. Adopt PHOTO-SENSOR double-side color sorting technology; The specialized image acquisition and processing system computers and processes the spectral parameter and the feature of the image in high speed; Adopt bus structure, with higher signal consistency and capability of resisting disturbance, better stability, and simpler structure;
2. Adopt mainstream high-density high-capacity scene programmable logic device, with higher integration level, more easier upgrading of software and hardware; Flexible sorting modes setting available for different raw materials to meet the demands of sorting discolor, discolor reverse, milky, milky reverse, milky & yellow; Accurately distinguish tiny rice macula and light yellow color shading;
3. Adopt real color display; Equipped with high-reliability four-wire resistance touch screen; Correct location of touch screen at any time; User-friendly operation interface; Simple and easy to operate;
4. Perfect self-inspection function realizes real-time tracking and malfunction indication of spray valve system, working pressure, constant temperature system and illumination system.
Item No | 6SXZ-63(CCD) |
Production Capacity | 0.8-2.0t/h |
Voltage | 220v 50HZ/60HZ |
Power(W) | 1.5kw |
Dimension(L*W*H) | 910*1620*1550 |
Weight: | 350kg |
Raw material | Sainless Steel |
Color | White |
Material | Carbon Steel |
Sorting Accuracy | ≥99.9 |
Optimized Carryover | > 15:1 |
Warranty | 1 Year |
Packaging Details | wood packing |
Usage
For this kind of color sorter, which is designed for small rice processing plants, planting cooperatives, grain processing plants, ore and plastics industry, medicinal materials industry, provide color options.
When color sorter is working, feed hopper in the materials under the action of vibrator is uniform distribution in each chute. The CCDS-63 model is our bestseller in the past years.
When unqualified materials or impurities in the materials are found, the ejector will blow the defective goods in the hopper.
What kind of materials can our color sorter select:
Food materials:
Such as: Rice, Wheat, Corn, Soybean, Peanut, Sunflower seeds, Waltnut, Almond, Quinoa, Salt, Medlar, Pistachio, Kidney bean, Chili, Red bean, etc.
Plastic materials:
Such as: Waste Plastics, Plastic pellet, Plastic pieces, Plastic granule, Plastic bottle cap flake, PET bottle scrap, ABS plastic flake, PP plastic scrap, Recycled plastic, etc.
Mineral materials:
Such as: Quartz stone, Quartz sand, Potassium feldspar, Barite, Calcite, Limestone, Pearl, Marble and others.
