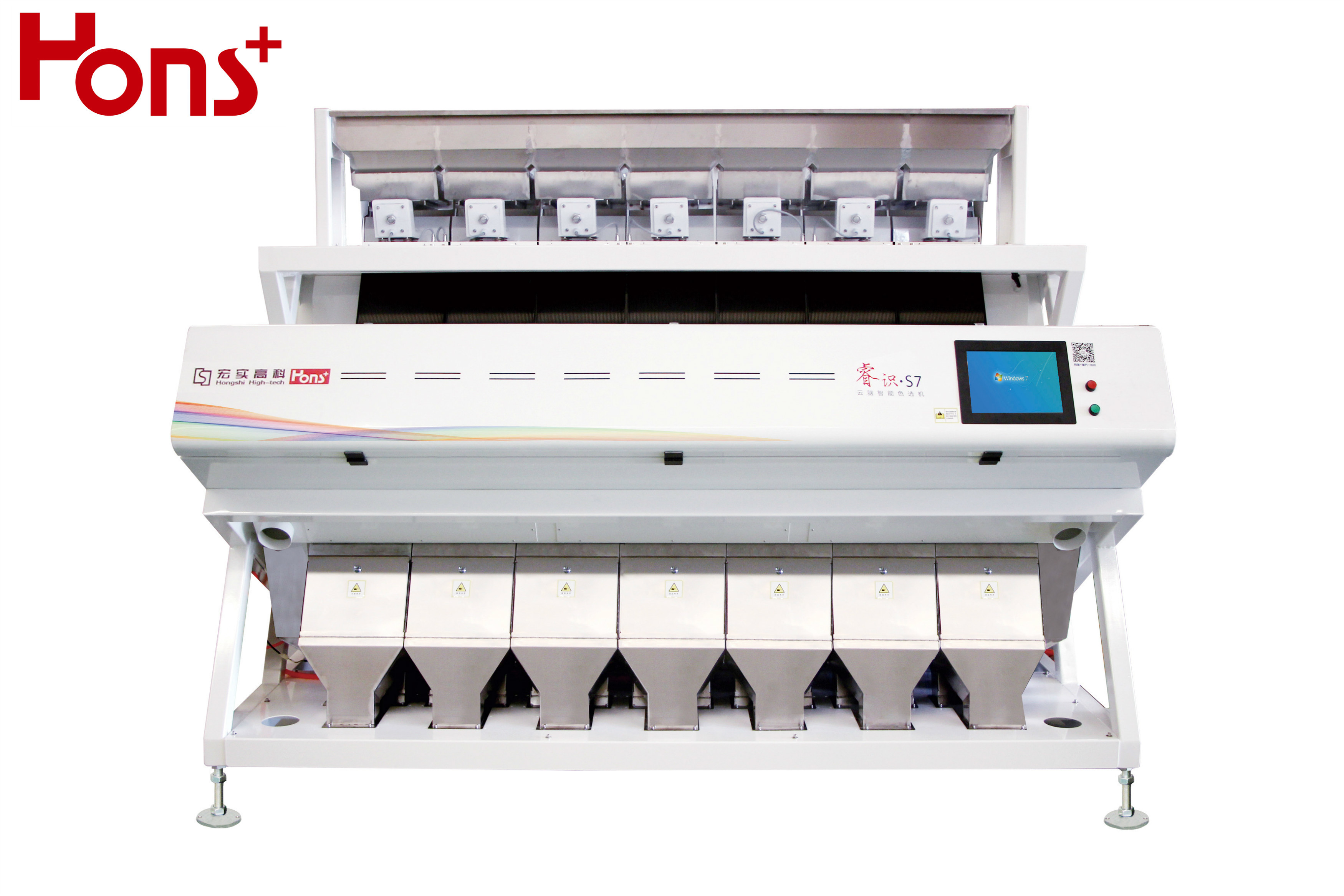

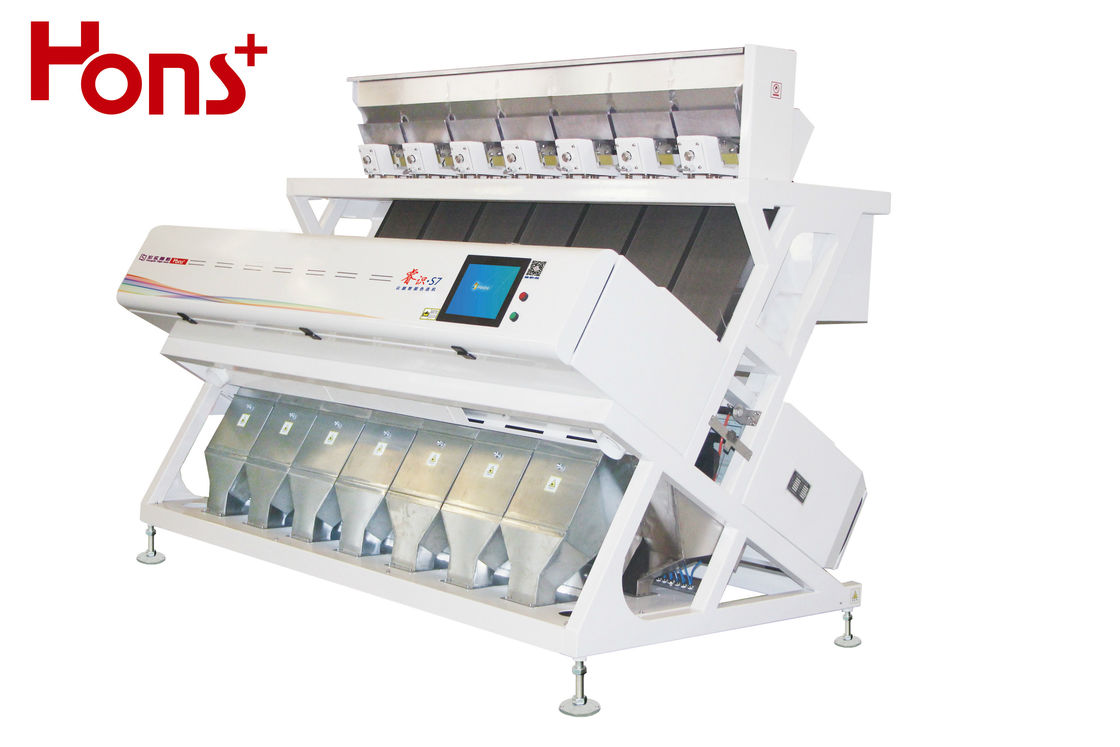

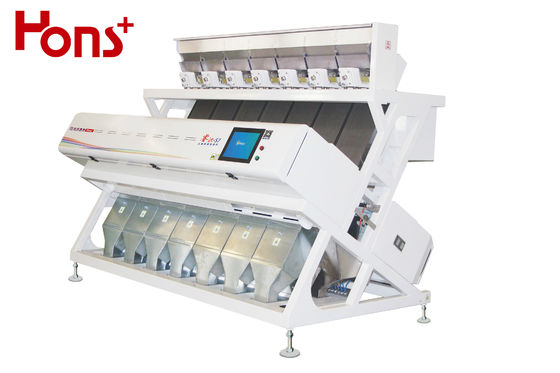

High Sensitivity Rice 7 Chutes Grain Color Sorter Machine

Basic Information
Place of Origin: China
Brand Name: Hons+
Certification: ISO/SGS/CE
Model Number: S7
Minimum Order Quantity: 1 set
Price: $22000-$29000
Packaging Details: Wooden case
Delivery Time: 5-8 worker days
Payment Terms: L/C, D/P, D/A, T/T
Supply Ability: 500sets/month
Detail Information
Power(Kw): 4.0 Dimension(L*W*Hmm): 2836*1595*2040
Capacity(T/h): 4.0t-5.0t Voltage(V): AC220V/50Hz
Weight(Kg): 1600kg Applicable Material: Peanut/Rice/grain
Pixels: 54 Million Feature: High Sensitivity
Product Name: CCD Color Sorter
High Light:

7 Chutes grain color sorter


7 Chutes color sorter machine


High Sensitivity color sorter machine

Product Description

High Capacity Rice Machine 7 Chutes Rice Sortex Mchine 54million Pixels

Sorting materials

1. Rice: white rice, parbouled rice,black rice, yellow rice, brown rice, barley rice
2. Beans: soybeans, mung beans, red beans, coffee beans,chickpea,red lentils
3. Nuts: peanuts, ground nut,cashew nut, walnut meat,pine
4. Wheat: Buckwheat,Quinoa,Qatmeal.
5. Vegetable: dry onion,daylily,back fungus,sea vegetables
Food: vegetable seeds, cumin seeds,prickly ash seeds,dried shrimps,small shrimp,
cotton seed/corn seed/wheat seed/pepper seed/onion seed
7. Industrial: plastic, broken glass,quaze,ore,scrap metal,slag,salt,refractory


S7Rice machine Technology parameters


Brand Hons+
Model S7
Chutes 7
Channels 441
Capacity(kg/hour) 4000KG-5000KG
Power(kw) 4.0KW
Weight(Kg) 1600KG
Voltage(v) AC240/50HZ
Dimension(l*w*hmm) 2836*1595*2040


High Sensitivity  Rice 7 Chutes Grain Color Sorter Machine 0

Color sorter machine Main Features

Color Sorting System
Highly humanized interface of human-machine interaction, smart cloud interconnection, remote control, operation abd maitenance, software upgrade, problem diagnosis and resolution, accurate big data statistics and analysis.


HD Image Capture System

Global initiative cloud technology camera can deeply recognize tiny impurities. It shows perfect HD scanning, accurate identification and highcomputing. 5000+ pixel X 3 line scanning X 16K fullcolor high speed CCD sensor for international top industry.


Shadowless Colorful Spectrum LED
The high performance LED optical system design and light control technology ensure maintenance free and reduce energy consumtion 15%~20%.Using the new multi-angle shadowless light path technology to eliminate the shadow of the material, tiny disease spots and black spots, colorful spectrum fusion technology makes subtle differences of materials easier to identify, easier to judge and be more accurate.


Multi-core Parallel Image Processing System
Applying the new multi-core parallel processing system, realizing the color selection, shape selection and smart selection modes. Intergrating algorithm of recognizing foreign matter accurately so as to achieve high-end color selection requirements.


Intelligent High-frequency Solenoid Valve Of Magnetic Control
The neweast high-frequence solenoid valve exclusive to color soretr with altra-low air consumtion ensures optimized carryout ratio and high sorting accuracy. It features perfect self-recovery system, low maintenance cost and long service time over 6 ~ 10 billion times.

Sorting performance

High Sensitivity  Rice 7 Chutes Grain Color Sorter Machine 1

High Sensitivity  Rice 7 Chutes Grain Color Sorter Machine 2

Why Choose Hons+:

1. Over 10 years experience which focus on sorter machine. One of the most advanced manufacturer in Hefei, Anhui.

2. After-Sales service guarantee: We have a professional after sales service team, one-to-one customer service to help customers install and debug.

3. We have service station over Southeast Asia, co-operate re-seller in more than 50 countries.

4. Quality assurance of raw materials: the raw material we purchase are certified qualified products.

5. Quality process assurance: We have been authorized by CE & ISO quality management system, each process of production are under strictly standard.

6. System test: Our technical engineers check the product performance, even every part is subjected to rigorous aging test to ensure that the factory products would being in full compliance with customer requirements.

7. Shipping guarantee: We have professional packaging operation team, independent export qualification to ensure product safety and stability to reach customers in the hands.

 High Sensitivity  Rice 7 Chutes Grain Color Sorter Machine 3

High Sensitivity  Rice 7 Chutes Grain Color Sorter Machine 4
