Type: | SL21 | Capacity: | 500kg /H |
---|---|---|---|
Voltage: | AC220V/50HZ | Power: | 2.5KW |
Size: | L 2920mm * W 1220mm * H 1720mm | Weight: | 2300KGS (+/-5%) |
High Light: | 5400 Pixel Belt Color Sorter,CCD Camera Belt Color Sorter,CCD Camera Plastic Color Sorter |

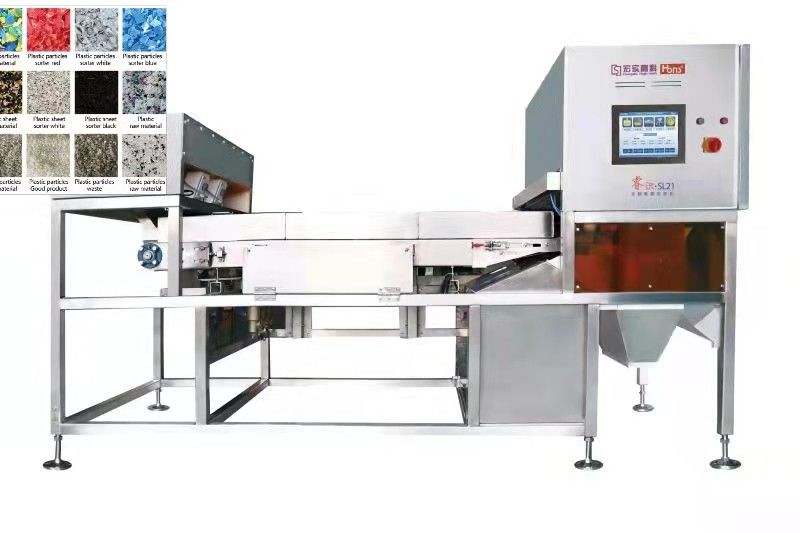

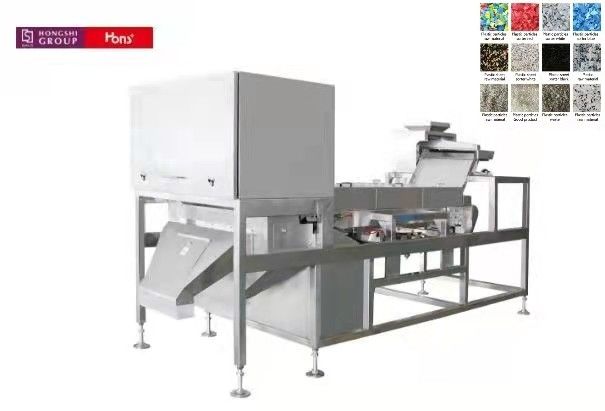

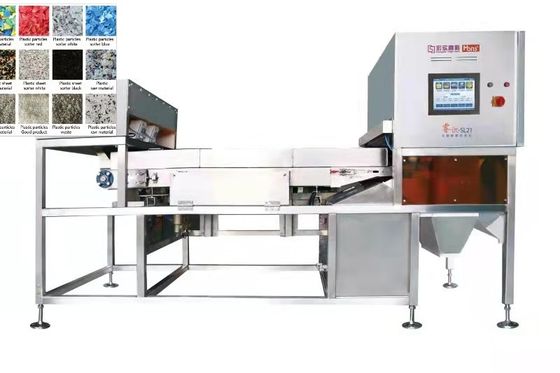

Wide Channel CCD Camera Plastic Belt Sorter Machine 500kg/Hour
Belt color sorter machine features
1. Belt horizontal conveying system, with small drop, large output and low material broken rate, is suitable for color sorting of spme special materials with irregular shape.
2. The world's top CCD sensor with ultra-high resolution can be prepared to deal with various materials.The minimum resolution in the range of0.04MM2, the tiny spots, black spots signal amplification processing needle.
3. Double layer structure design for ore, plastic and other materials with high impurities, the required materials can be extracted at single time sorting.
4.The industial leading intelligent size and shape sorting function can efftively identify the size and shape of materials.
5. Massive database with storage of unlimited modecan achieve multiple function of one mach
6. Automatically collecting hyper space data such as color,shape,size,and defect to achieve accurate acquisition of raw materila features.
7. Global initiative operation by clicking one button realizes fully automatic sorting without need of professional, simple and easy to operate, more intelligent, easy operation, one button for professional sorting, remote, debugging, remote diagnosis, remote software upgrading.
Belt CCD color sorter machine parameters
Brand | Hons+ |
Sorting Accuracy(%):
|
≥99.9 |
Carryover Rate(bad:good):
|
≥12:1 |
Capacity:(kg/hour) | 400Kg-500Kg |
Voltage:
|
220V/50Hz |
Weight(kg): | 2300 |
Diamension/Size (L*W*H)mm | 2920*1220*1720 |
Package: |
Wooden Case
|
Selection of materials
Industrial Goods:plastic/plastic pallets/ Quartz sand/recycled plastic/salt/mineral/monosodium glutamate/white sugar
Ore/crops/scrap metal/refractory
Chinese traditional medicinal : Licorice/astragalus propinquus schischkin/ salvia miltiorrhiza bge/coastal glehnia root
Food: Dried shrimp/Pecans/peanuts/garlic/dry onion slices/dehydratedcarrot slices/lotus seeds
Sorting perofrmance
FAQ
1. How many days for production?
In general,within8-12workers days after getting deposit payment.
2. Are you a trading company or a factory,will it be cheaper to buy from your side?
More than 15 years of professional manufacturing experience, more than 10years exporting experience overseas.
3. We are small buyer , can we buy your products locally , do you have local agents?
If you need to buy locally ,please tell us your region name,we can recommend the most suitable local dealer for you.
About us
1. The leading photoelectric detection and classification equipment supplier in China.
2. We supply optic detection and classificationequipment as rice color sorting machine, grain color sorting machine, grain colorsorting machine,tea color sorting machine,belt color sorting machine ect,And also offer the effective fast solution for relative industry.
3. Hons+ brand series product have been popular both in domastic and oversea market many years, we have exported over than 45countries with high praise from customers.
