| Place of Origin: | China |
|---|---|
| Brand Name: | Hons+ |
| Certification: | ISO/SGS/CE |
| Model Number: | S1 |
| Minimum Order Quantity: | 1 set |
| Price: | $6500-$9000 |
| Packaging Details: | Wooden case |
| Delivery Time: | 5-8 worker days |
| Payment Terms: | L/C, D/P, D/A, T/T |
| Supply Ability: | 500sets/month |
| Power（Kw）: | 1.5 | Dimension(L*W*Hmm): | 910*1620*1550 |
|---|---|---|---|
| Capacity(T/h): | 0.4t-0.8t | Voltage(V): | AC220V/50Hz |
| Weight(Kg): | 500 | Applicable Material: | Rice/Beans |
| Pixels: | 54 Million | Feature: | High Sensitivity |
| Product Name: | CCD Color Sorter | ||
| High Light: | L Pixel CCD Color Sorter,daylily Remote Contro Color Sorter,High Sensitivity Remote Contro Color Sorter |
||

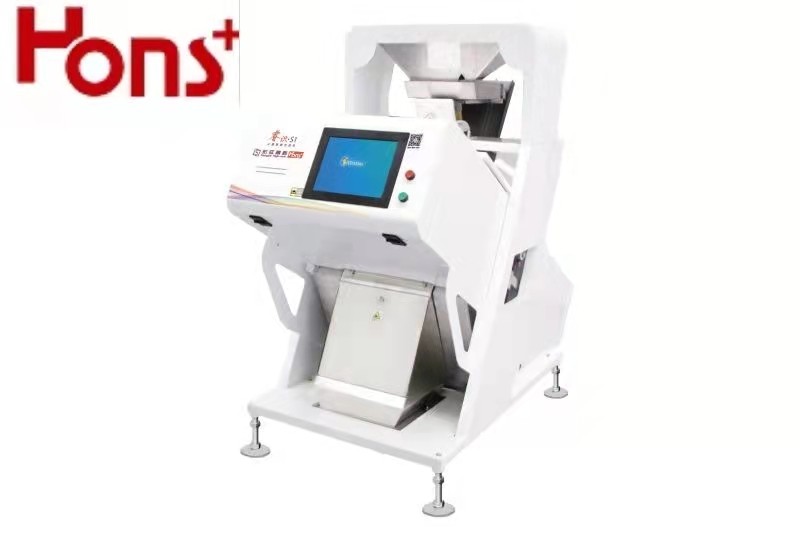

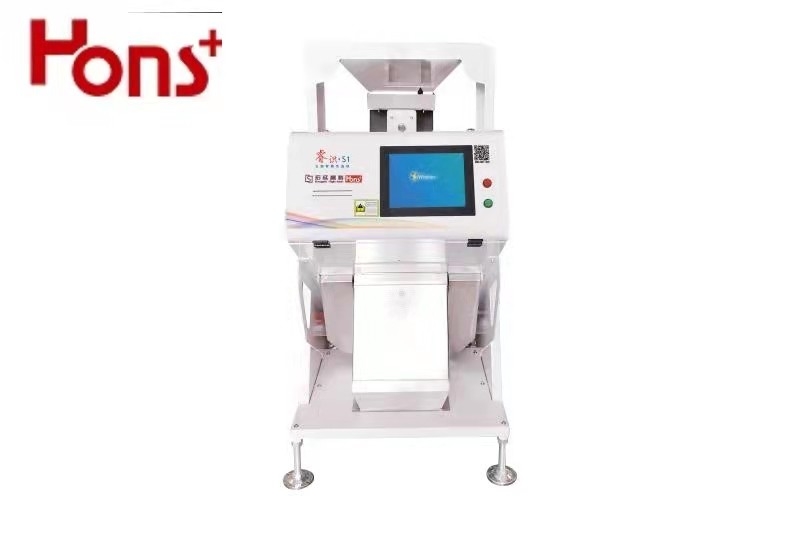

5400 Million Remote Control Pixel CCD Camera Rice Color Sorter Machine
Sorting materials
1. Rice: white rice, parbouled rice, yellow rice, brown rice, barley rice
2. Beans: soybeans, mung beans, red beans, coffee beans
3. Nuts: peanuts, cashew nut, walnut meat,pine nuts
4. vegetables: dry onion, daylily,back fungus
5. Seeds: vegetable seeds, cumin seeds,prickly ash seeds
6. Industrial:plastic, broken glass,quaze,ore,scrap metal
Rice CCD color sorter machine parameters
Name |
S1 | S3 | S5 | S7 |
| Model | 6SXM-63 | 6SXM-189 | 6SXM-315 | 6SXM-441 |
| Capacity(Kg/H) | 800Kg-1000Kg | 2000Kg-3000Kg | 3000Kg-4000Kg | 5000Kg-6000Kg |
| Voltage(V) | AC220V/50HZ | AC220V/50HZ | AC220V/50HZ | AC220V/50HZ |
| POWER(KW) | <1.5 | <2.4 | <3.0 | <4.0 |
| Weight(KG) | 350Kg | 800Kg | 1250Kg | 1600Kg |
| Dimension(L*W*H/MM) | 910*1620*1550 | 1628*1595*2040 | 2210*1595*2010 | 2836*1595*1850 |
| Air Consumption | 0.9 m³/min | 1.8m³/min | 1.8 m³/min |
3 m³/min |
| Air pressure | 0.6-0.8mpa | 0.6-0.8mpa | 0.6-0.8mpa | 0.6-0.8mpa |
| Air compressor power | 4kw | 7.5Kw | 11kw*2 | 15kw*2 |
| Air tank | 600L | 1000L | 1000L | |
| Cooling Model | wind cooling | wind cooling | wind cooling | wind cooling |
| Mini Resolution( mm²) | 0.03 | 0.03 | 0.03 | 0.03 |
|
C
 |
Automatic Remote Contro L Pixel CCD Camera Rice Color Sorter Easy Operation
Color Sorter Machine Strengths
1. High-quality distinction system,adopting HD full color 5000+PX 5400 CCD image sensor that reach the aim of distinguishing 0.1mm are of object.
2. The sorter adopts high quality Nikon special industrial lenses designed and manufactured for color sorting .
3.Image processing system,adopting the chips of FPGA and DSP from companies of ALTER and TI.
4.The forth generation processor technology of EPGA which sharply promoted the processing speed.
5. Master control system adopts ARM high-end embedded processor, effectively enhance control speed and color selection precision.
6. Overall new chute design,specoal technology chute makes material transfer more steady and output increased 20%-30%,meanwhile, we also could provide plate-type and slot-type for meeting the various demands.
7. Adjustable ligh source technology,the overall upgrade LED light source could adjust the outpit power of ligh source according to those different materials,ensure the accurate obtaining of materials's information;LED lighting system with radiating function makes it in longer using,lower energy consumption and better performance.
Sorting performance
Color sorter After-sale Services-----
1. A strong central technical team in Hefei, China: Ready for supporting local agent or wholesales with training, advice and technical support.
2. One year full warranty (except for consumable parts) upon the date of purchase.
3. Service line is available for emergency support: telephone, email, video or on site solutions by our technical experts.
4. Serviced and Supported wherever customers are located.
5. Free software update.
Why choose Hons+
1. Over 10 years experience which focus on sorter machine. One of the most advanced manufacturer in Hefei, Anhui.
2. After-Sales service guarantee: We have a professional after sales service team, one-to-one customer service to help customers install and debug.
3. We have service station over Southeast Asia, co-operate re-seller in more than 50 countries.
4. Quality assurance of raw materials: the raw material we purchase are certified qualified products.
5. Quality process assurance: We have been authorized by CE & ISO quality management system, each process of production are under strictly standard.
6. System test: Our technical engineers check the product performance, even every part is subjected to rigorous aging test to ensure that the factory products would being in full compliance with customer requirements.
7. Shipping guarantee: We have professional packaging operation team, independent export qualification to ensure product safety and stability to reach customers in the hands.
