| Place of Origin: | China |
|---|---|
| Brand Name: | Hons+ |
| Certification: | ISO/SGS/CE |
| Model Number: | S2 |
| Minimum Order Quantity: | 1 set |
| Price: | $6500-$9000 |
| Packaging Details: | Wooden case |
| Delivery Time: | 5-8 worker days |
| Payment Terms: | L/C, D/P, D/A, T/T |
| Supply Ability: | 500sets/month |
| Power（Kw）: | 2.0 | Dimension(L*W*Hmm): | 1220*1620*1550 |
|---|---|---|---|
| Capacity(T/h): | 0.4t-0.8t | Voltage(V): | AC220V/50Hz |
| Weight(Kg): | 500 | Applicable Material: | Rice/Beans |
| Pixels: | 54 Million | Feature: | High Sensitivity |

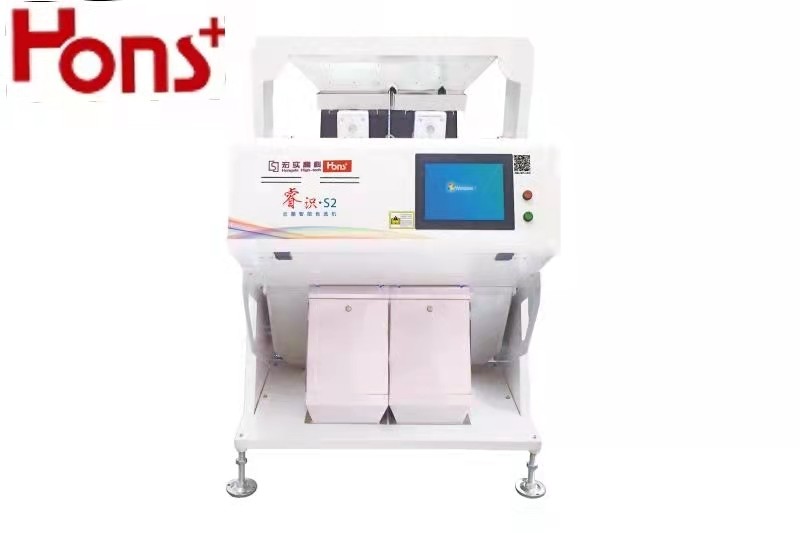

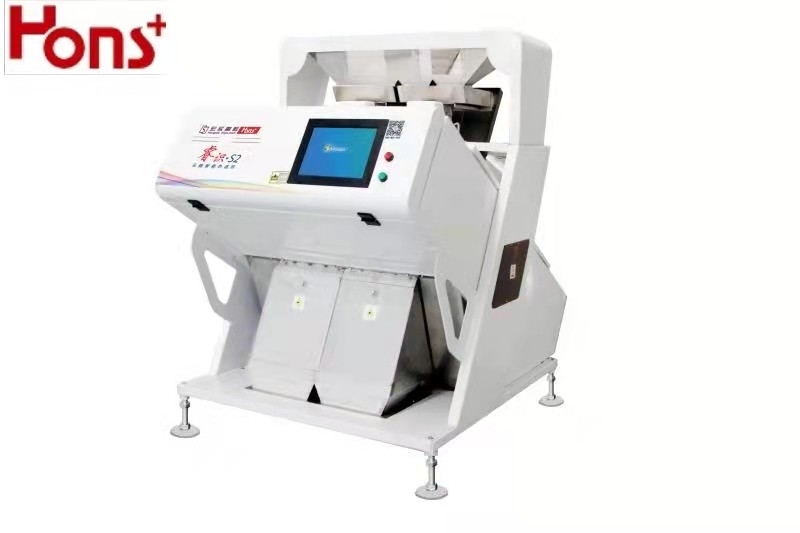

| Product Name: | CCD Color Sorter | ||
| High Light: | 0.8TPH CCD Color Sorter,2 Chutes Coffee Beans Color Sorter,54 Million Coffee Beans Color Sorter |
||
Selection of materials
1. Coffee beans, Black beans, Soybeans, Mungbeans, broad beans.
2. Peanuts, Cashew nuts, Walnut meat, Pine nuts.
3. Rice, Black rice, Yellow rice, Red rice, Brown rice, Chinese sorghum, Barley rice
4. Vegetables: dry onion,daylily,back fungus
5. Seeds: vegetable seeds, cumin seeds,prickly ash seeds
6. Industrial:plastic, broken glass,quaze,ore,scrap metal
Technology parameters
Name |
S1 | S2 | S5 | S7 |
| Model | 6SXM-63 | 6SXM-126 | 6SXM-315 | 6SXM-441 |
| Capacity(Kg/H) | 800Kg-1000Kg | 1000Kg-2000Kg | 3000Kg-4000Kg | 5000Kg-6000Kg |
| Voltage(V) | AC220V/50HZ | AC220V/50HZ | AC220V/50HZ | AC220V/50HZ |
| POWER(KW) | <1.5 | <2.0 | <3.0 | <4.0 |
| Weight(KG) | 350Kg | 500Kg | 1250Kg | 1600Kg |
| Dimension(L*W*H/MM) | 910*1620*1550 | 1220*1620*15500 | 2210*1595*2010 | 2836*1595*1850 |
| Air Consumption | 0.9 m³/min | 1.8m³/min | 1.8 m³/min |
3 m³/min |
| Air pressure | 0.6-0.8mpa | 0.6-0.8mpa | 0.6-0.8mpa | 0.6-0.8mpa |
| Air compressor power | 4kw | 5.5Kw | 11kw*2 | 15kw*2 |
| Air tank | 300L | 1000L | 1000L | |
| Cooling Model | wind cooling | wind cooling | wind cooling | wind cooling |
| Mini Resolution( mm²) | 0.03 | 0.03 | 0.03 | 0.03 |
Color Sorter Machine Strengths
1. World-class industrial-strength 5400 pixel CCD true color linear array lens, identify discolored material with high precision.
2. The domestic leading quality eject valve, with a more than 1 billion service time, which has high sorting accuracy and easy maintenance.
3. Intelligent interface which based on ARM chip and Linux operating system, easy and simple to operate.
4. The high-speed specialized micro date processing system greatly improves date processing rate and efficiency, which increases machine output effectively.
5. High-brightness,long service time LED light meeds sorting demands for different materials, no need change light source.
6. New machine model design with more stable operation, increase accuracy and reduce breakage rate.
7. The patented intelligent dust-extraction system can rapidly remove light objects and dusts adhered to the materials, for which ensuring teh sorting accuracy and improving machine efficient.
Sorting performance
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Supply customer the installation catalog or video online.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Why choose Hons+
1. Over 10 years experience which focus on sorter machine. One of the most advanced manufacturer in Hefei, Anhui.
2. After-Sales service guarantee: We have a professional after sales service team, one-to-one customer service to help customers install and debug.
3. We have service station over Southeast Asia, co-operate re-seller in more than 50 countries.
4. Quality assurance of raw materials: the raw material we purchase are certified qualified products.
5. Quality process assurance: We have been authorized by CE & ISO quality management system, each process of production are under strictly standard.
6. System test: Our technical engineers check the product performance, even every part is subjected to rigorous aging test to ensure that the factory products would being in full compliance with customer requirements.
7. Shipping guarantee: We have professional packaging operation team, independent export qualification to ensure product safety and stability to reach customers in the hands.
