Name: | 6SXM-126(CCD) | Capacity(T/h): | 1.5~2.5 |
---|---|---|---|
Voltage(V): | AC220V/50Hz | Power(Kw): | ≤2.0 |
Weight(Kg): | 500(±5%) | Dimension(L*W*H Mm): | 1220*1620*1550 |
Color: | White | Channels: | 2 |
Application: | Sorting | Product Name: | Vegetable Sorting Machine |
High Light: | multiline processing Wheat Sorting Machine,SGS Wheat Sorting Machine,CCD Camera Vegetable Sorting Machine |

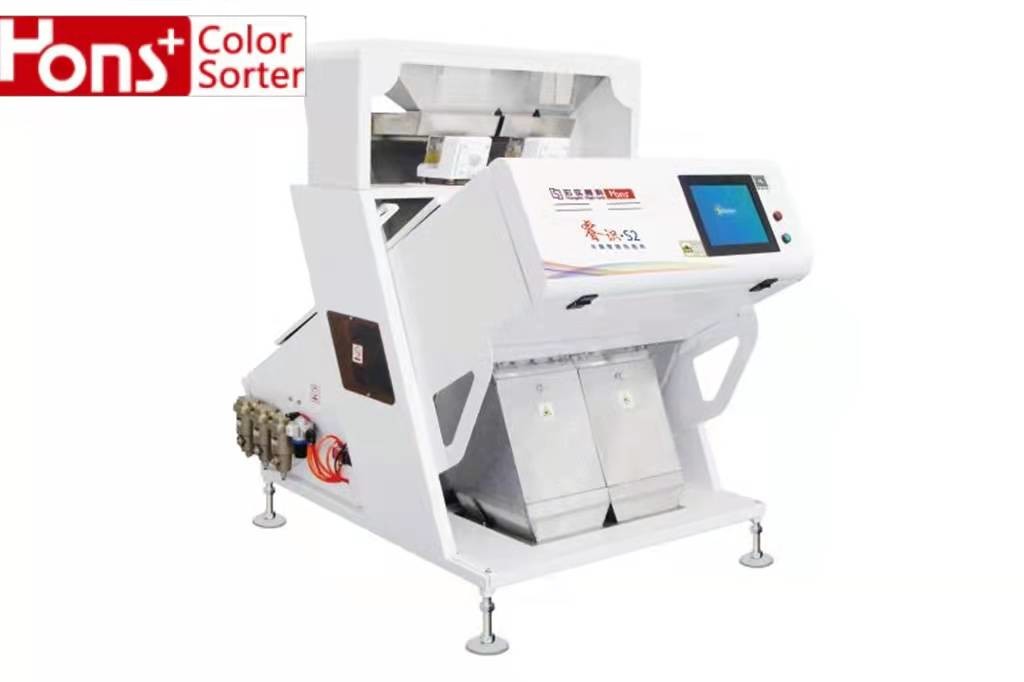

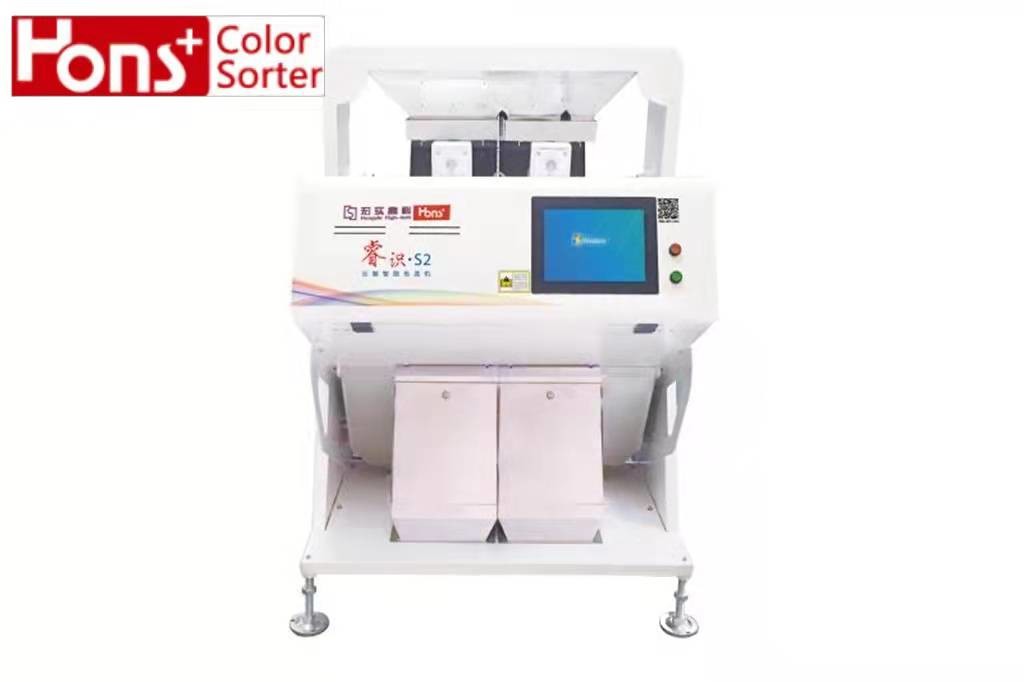

Multiple Function 2 Channels CCD Camera Wheat Sorting Machine
Features:
1. Automatic collection of supreme dimension spatial data such as color, shape, size and defect of raw material, intelligent identification and intelligent sorting according to the rule of selection.
2.Windows 7 operating system, which can be upgraded to Windows 8 or windows 10 according to different application fields.
3. Minimum scanning and identification area can reach 0.2mm X 0.2mm=0.04mm2; Color + Shape multi-line processing.
4. Antioxidant anode treatment chute, greatly enhance production capacity, the output increased by 20%~30% comparing with similar products.
5. Multiple function of one machine. Single machine can be applied to rice, grains, cash crops and other applications.
Technical Parameter
Model | S1 | S2 | S3 | S4 | S5 | S6 | S7 | S8 | S10 | S12 |
Capacity(t/h) | 0.8~2.0 | 1.2~2.5 | 1.5~3 | 3~6 | 4~7 | 5~8 | 6~10 | 7~11 | 7~15 | 10~18 |
Voltage (V) |
AC220V 50/60Hz | AC220V 50/60Hz | AC220V 50/60Hz | AC220V 50/60Hz | AC220V 50/60Hz | AC220V 50/60Hz | AC220V 50/60Hz | AC220V 50/60Hz | AC220V 50/60Hz | AC220V 50/60Hz |
Power(KW) | ﹤1.5 | ﹤2 | ﹤2.4 | ﹤2.6 | ﹤3.0 | ﹤3.6 | ﹤4.0 | ﹤4.6 | ﹤5.5 | ﹤7.0 |
Air pressure (Mpa) |
0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
Dimension (mm) |
910* 1620*1550 |
1220* 1615*1550 |
1628* 1595*2040 |
1870* 1595*2040 |
2210* 1595*2040 |
2528* 1595*2040 |
2836* 1595*2040 |
3152* 1595*2040 |
3910* 1595*2040 |
4594* 1595*2100 |
Weight (Kg) | 350 | 500 | 800 | 1000 | 1250 | 1400 | 1600 | 1800 | 2250 | 2700 |
Sorting materials
Rice: rice/brown rice/sticky rice/millet/sorghum/myotonin/back rice
Beans:kidney bean/soybean/mung/red bean/black bean/pea/broad bean/coffee bean/lentil/chickpea
Tea:green tea/back tea/dark tea/white tea/yellow tea
Cereals:corn/barlley/wheat seed/pepper seed/onion seed
Nuts&Kernels: sunflower seed/pumpkin seed/watermelon seed/cashew nut/peanut/pistachio
Dehydrated vegetables:pepper/garlic flake/carrot granule/onion/cabbage
Idustril goods: quarta sand/recycled plastic/salt/mineral/monosodium glutamate/white sugar/pill/pearl
Economic crops:raisin/medlar/lilly/red date/shrimp bran/tobacco/agaric
