| Place of Origin: | China |
|---|---|
| Brand Name: | Hons+ |
| Certification: | ISO/SGS/CE |
| Model Number: | 6SXL-126D |
| Minimum Order Quantity: | 1 Set |
| Price: | $12500-$21500 |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7 ~ 14 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200 Sets Per Month |
| Type: | SL21 | Capacity: | 500kg /H |
|---|---|---|---|
| Voltage: | AC220V/50HZ | Power: | 2.5KW |
| Size: | L 2920mm * W 1220mm * H 1720mm | Weight: | 2300KGS (+/-5%) |
| High Light: | 500kg / H Belt Color Sorter,Broken Glass Belt Type Color Sorter,5400 Pixel CCD Belt Color Sorter |
||

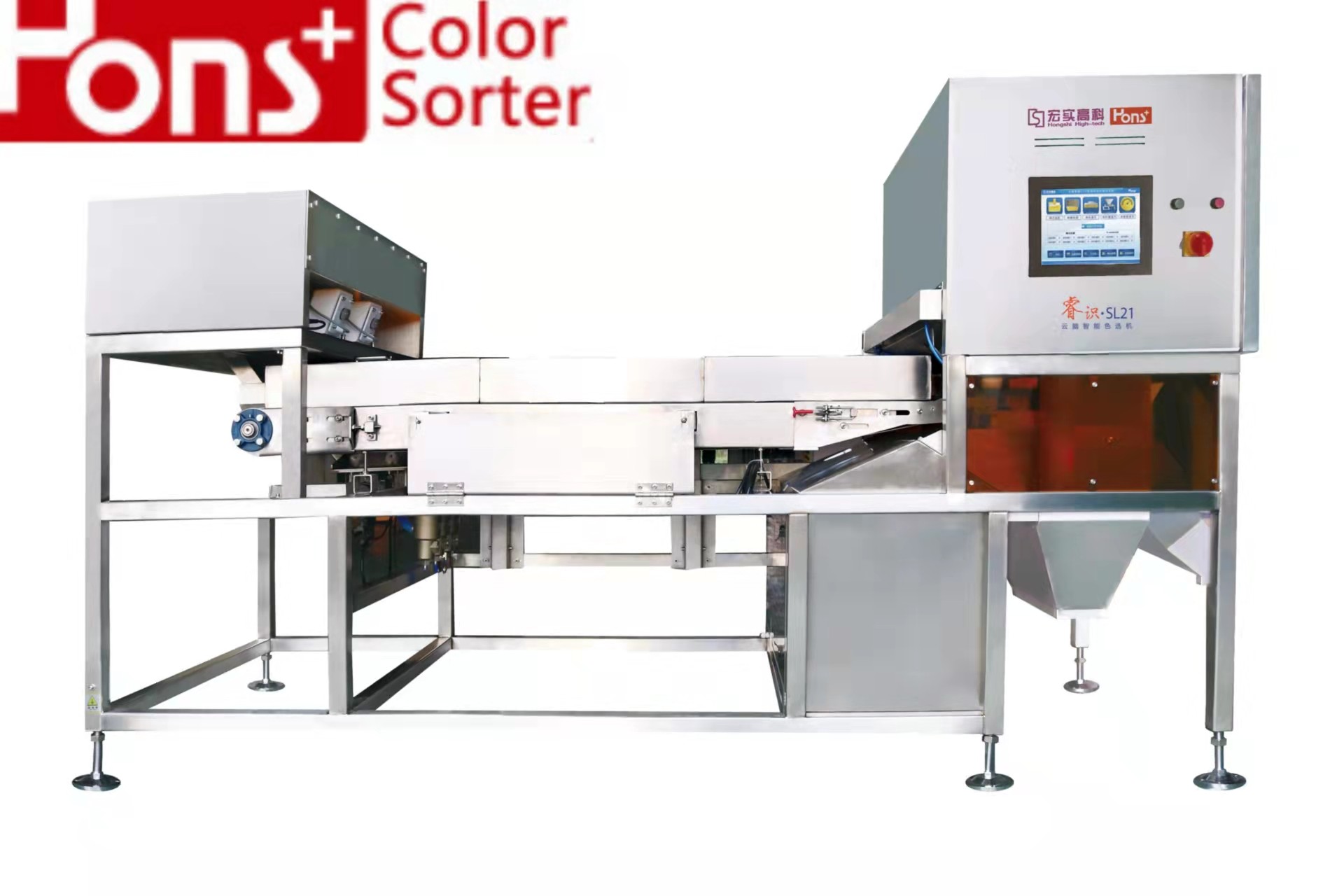

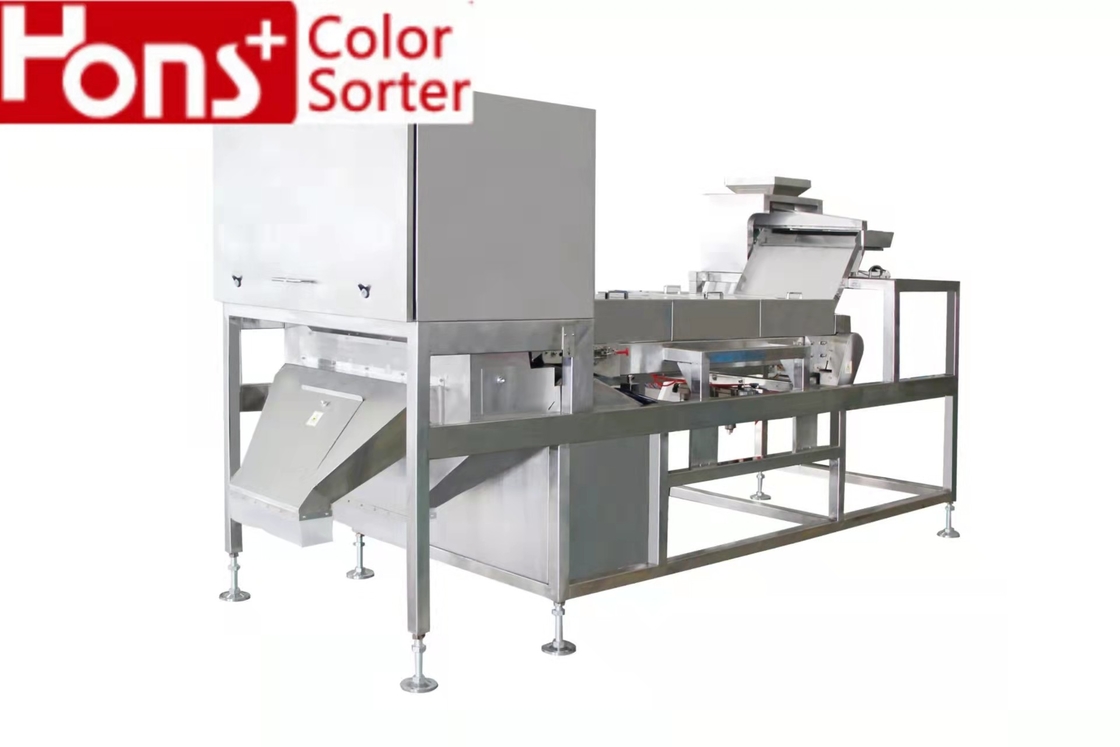

SGS 5400Pixel Wide Channel CCD Camera Plastic/Broken Glass Belt Color Sorter
Belt color sorter machine features
1. Belt horizontal conveying system, with small drop, large output and low material broken rate, is suitable for color sorting of spme special materials with irregular shape.
2. The world's top CCD sensor with ultra-high resolution can be prepared to deal with various materials.The minimum resolution in the range of0.04MM2, the tiny spots, black spots signal amplification processing needle.
3. Double layer structure design for ore, plastic and other materials with high impurities, the required materials can be extracted at single time sorting.
4. The advances digital non-polar intelligent dimming technology can automatically match the best brightness according to the materrial selection requirements and the changes of environment to guarantee the sorting performance.
5. Intelligent operation platform with storage of 100 sorting modes can achieve multiple-functions of one machine ,user- friendly control and easy to operate.
6. The patented intelligent dust-extraction system can rapidly remove light objects and dusta adhered to materials, for which ensuring sorting accuracy and improving machine efficient.
7. Automatically collecting hyper space data such as color ,shape,and defect to achieve accurate acquisition of raw mateial features.
Belt CCD color sorter machine parameters
| Brand | Hons+ |
|
Sorting Accuracy(%):
|
≥99.9 |
|
Carryover Rate(bad:good):
|
≥12:1 |
| Capacity:(kg/hour) | 400Kg-500Kg |
|
Voltage:
|
220V/50Hz |
| Weight(kg): | 2300 |
| Diamension/Size (L*W*H)mm | 2920*1220*1720 |
| Package: |
Wooden Case
|
Selection of materials
Food materials:
Such as: Rice, Wheat, Corn, Soybean, Peanut, Sunflower seeds, Waltnut, Almond, Quinoa, Salt, Medlar, Pistachio, Kidney bean, Chili, Red bean.
Plastic materials:
Such as: Waste Plastics, Plastic pellet, Plastic pieces, Plastic granule, Plastic bottle cap flake, PET bottle scrap, ABS plastic flake, PP plastic scrap. Recycled plastic, etc.
Mineral materials:
Such as: Quartz stone, Quartz sand, Potassium feldspar, Barite, Calcite, Limestone, Pearl, Marble and others.
Sorting perofrmance
FAQ
1. How many days for production?
In general,within8-12workers days after getting deposit payment.
2. Are you a trading company or a factory,will it be cheaper to buy from your side?
More than 15 years of professional manufacturing experience, more than 10years exporting experience overseas.
3. We are small buyer , can we buy your products locally , do you have local agents?
If you need to buy locally ,please tell us your region name,we can recommend the most suitable local dealer for you.
About us
1. The leading photoelectric detection and classification equipment supplier in China.
2. We supply optic detection and classificationequipment as rice color sorting machine, grain color sorting machine, grain colorsorting machine,tea color sorting machine,belt color sorting machine ect,And also offer the effective fast solution for relative industry.
3. Hons+ brand series product have been popular both in domastic and oversea market many years, we have exported over than 45countries with high praise from customers.
