| Place of Origin: | China |
|---|---|
| Brand Name: | Hons+ |
| Certification: | ISO/SGS/CE |
| Model Number: | 6SXM-252 |
| Minimum Order Quantity: | 1 Set |
| Price: | $9500-$15000 |
| Packaging Details: | Wooden Case |
| Delivery Time: | 7 ~ 14 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200 Sets Per Month |
| Type: | S4 | Capacity: | 3.0~6.0 T/H |
|---|---|---|---|
| Voltage: | AC220V/50HZ | Power: | 2.6Kw |
| Size: | L 1870mm * W 1595mm * H 2040mm | Weight: | 1000Kgs (+/-5%) |
| High Light: | 6.0 T/H CCD Color Sorter,Four Chutes CCD Color Sorter,5400 Pixel CCD Bean Color Sorter |
||

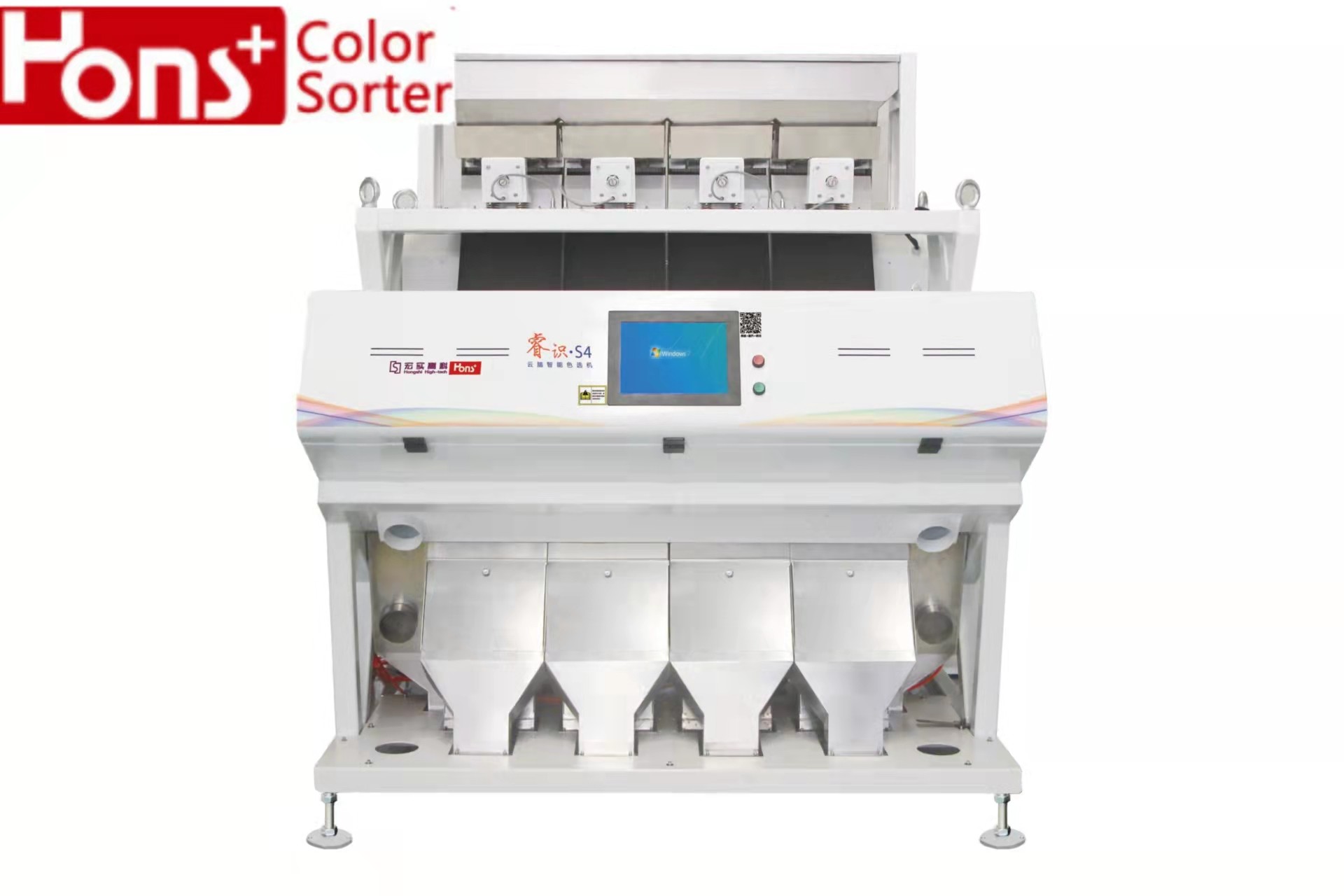

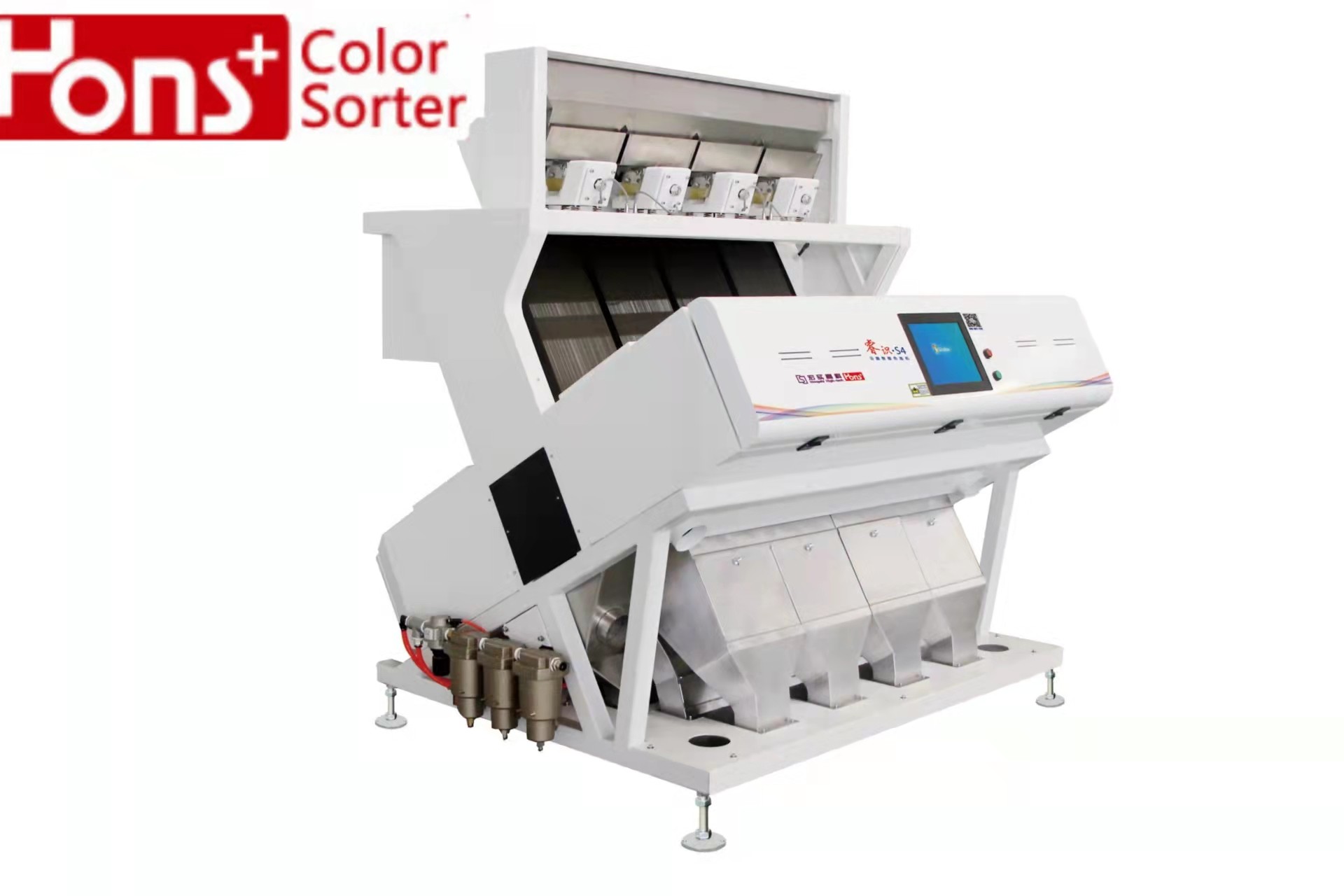

5400 Pixel 4 Chutes 2.6kw Rice/Beans CCD Color Sorter Machine
5400 Pixel Ccd Camera 4 Chutes 2.6kw Power Rice Color Separator Machine
Characteristics
1. High-quality distinction system,adopting HD full color 5400+PX CCD image sensor that reach the aim of distinguishing 0.1mm are of object.
2. The sorter adopts high quality Nikon special industrial lenses designed and manufactured for color sorting .
3. Image processing system,adopting the chips of FPGA and DSP from companies of ALTER and TI.
4. The forth generation processor technology of EPGA which sharply promoted the processing speed.
5. Master control system adopts ARM high-end embedded processor, effectively enhance control speed and color selection precision.
6. High speed , resolution ratio CCD camera, 5000pixels CCD sensor. Super clear imaging, color reduction well, no distortion.
7. International honour brand pro-face touch screen. Swift reaction, high sensitivity, reliable, easy operation.
8. High luminance LED resource. Low power consumption, long life, reliable.
9. High requency solenoid valve. Special for color sorting, high frequency, low power consumption, high sorting accuracy.
10. Low broken.High quality food grade belt, stable sustain structure, imported high performance motor.
CCD color sorter machine parameters
|
Channels
|
252 |
|
Sorting Accuracy(%):
|
≥99.9 |
|
Carryover Rate(bad:good):
|
≥12:1 |
|
Voltage:
|
220V/50Hz |
| Capacity(kg/h): | 1000kg-1500kg |
| Weight(kg): | 1000kg |
| Diamension/Size (L*W*H)mm | 1870*1595*2040 |
| Package: |
Wooden Case
|
Product application
Food material: rice, wheat, corn, soybeans, peanuts, sunflower seeds, walnuts, almonds, quinoa, salt, medler, pistachios, green beans, chili, red beans, etc.
Plastic material: Waste plastic, plastic pellets, plastic pieces, plastic granules, PET bottle cap flakes, PET bottle scraps, ABS plastic flakes, PP plastic scraps, recycled plastics, etc.
Mineral material: Examples: quartz stone, quartz sand, potassium feldspar, barite, calcite, limestone, pearls, marble, etc.
Sorting Result
