Power(Kw): | 4.0 | Dimension(L*W*Hmm): | 2836*1595*2040 |
---|---|---|---|
Capacity(T/h): | 4.0t-5.0t | Voltage(V): | AC220V/50Hz |
Weight(Kg): | 1600kg | Applicable Material: | Peanut/Rice/grain |
Pixels: | 54 Million | Feature: | High Sensitivity |

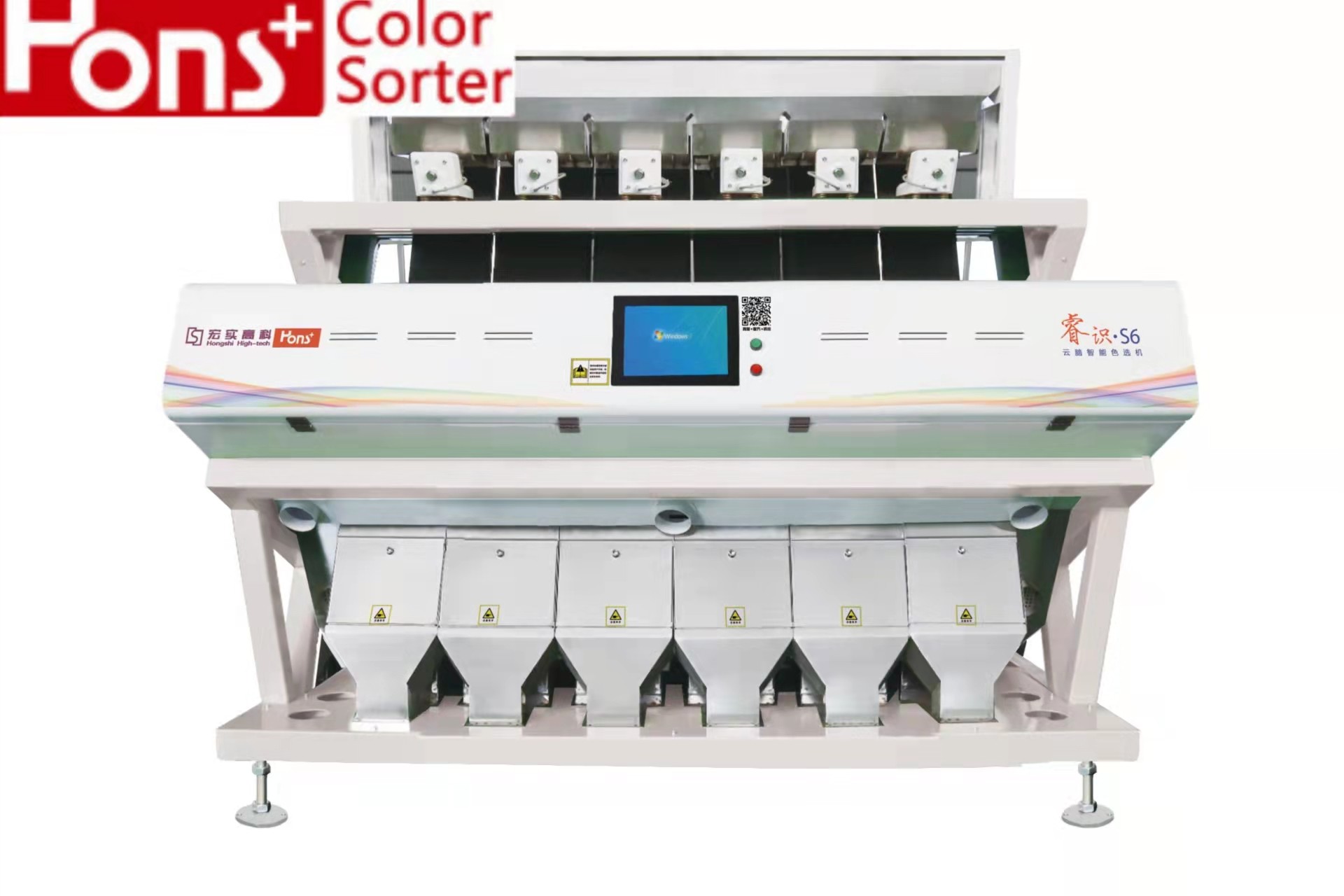

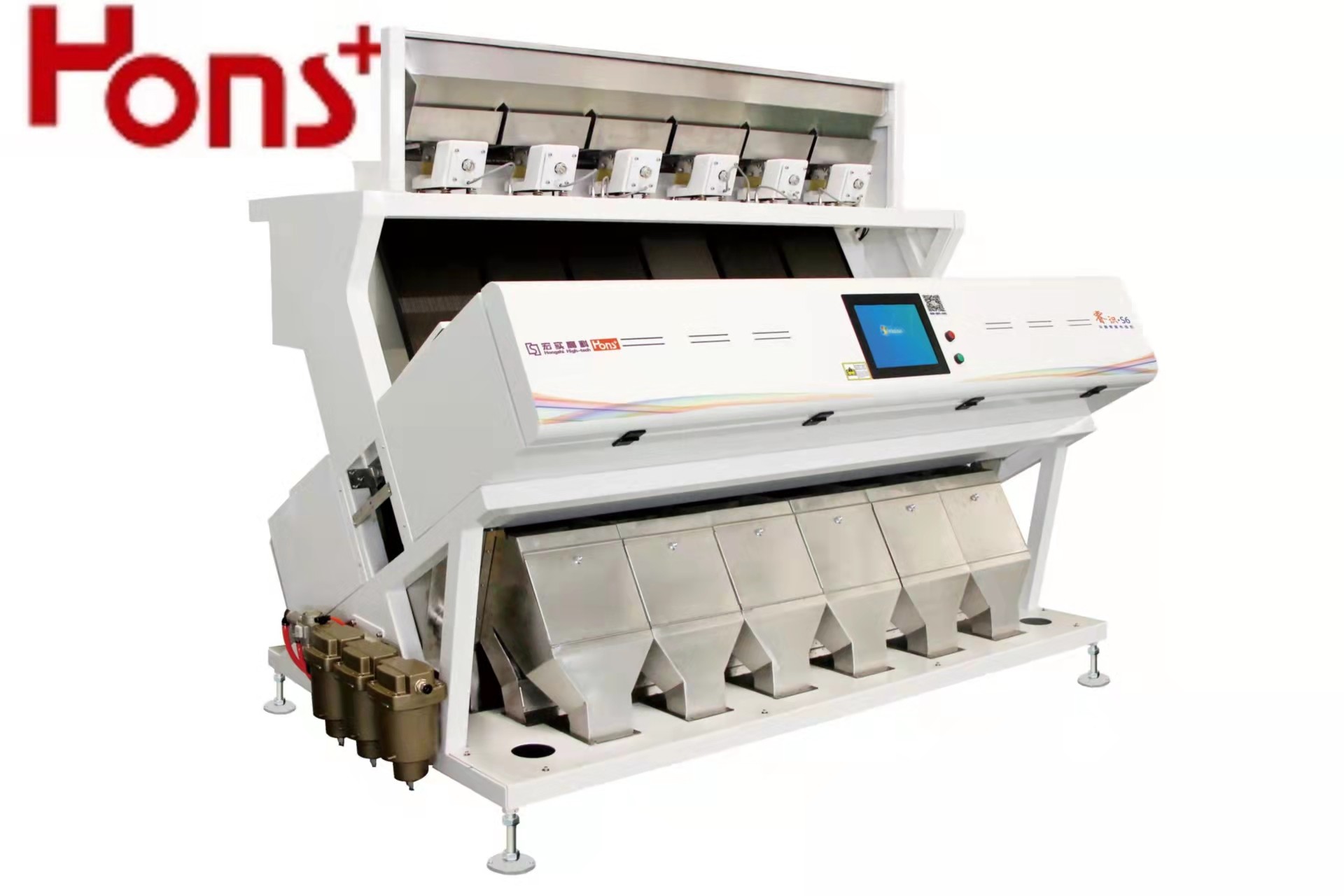

Product Name: | CCD Color Sorter | ||
High Light: | CCD Color Sorter 3.0t/H,Coffee Bean CCD Color Sorter,High Sensitivity CCD Sorter |
Technology parameters
Name |
S1 | S2 | S5 | S7 |
Model | 6SXM-63 | 6SXM-126 | 6SXM-315 | 6SXM-441 |
Capacity(Kg/H) | 300Kg-400Kg | 300Kg-800Kg | 1200Kg-1600Kg | 1500Kg-2400Kg |
Voltage(V) | AC220V/50HZ | AC220V/50HZ | AC220V/50HZ | AC220V/50HZ |
POWER(KW) | <1.5 | <2.0 | <3.0 | <4.0 |
Weight(KG) | 350Kg | 500Kg | 1250Kg | 1600Kg |
Dimension(L*W*H/MM) | 910*1620*1550 | 1220*1620*15500 | 2210*1595*2010 | 2836*1595*1850 |
Air Consumption | 0.9 m³/min | 1.8m³/min | 1.8 m³/min |
3 m³/min |
Air pressure | 0.6-0.8mpa | 0.6-0.8mpa | 0.6-0.8mpa | 0.6-0.8mpa |
Air compressor power | 4kw | 5.5Kw | 11kw*2 | 15kw*2 |
Air tank | 300L | 1000L | 1000L | |
Cooling Model | wind cooling | wind cooling | wind cooling | wind cooling |
Mini Resolution( mm²) | 0.03 | 0.03 | 0.03 | 0.03 |
Nuts: peanuts/cashew nuts/walnut meat/pine nuts
Rice: white/black/red/yellow/barley rice
Beans: soybeans/mungbeans/red beans/broad beans
Wheat: buckwheat/quinoa/oatmeal
Corn: corn particles/white corn/ ellowcorn/black corn
Dry food: dry onion/ raisins/dried chilli
Seeds: sunflower seeds/ rice seeds/ vegetable seeds
Industrial materials: plastic/scrap metal/ broken galss/ coal/ore/slag/Waste Plastics, Plastic pellet, Plastic pieces, Plastic granule, Plastic bottle cap flake, PET bottle scrap, ABS plastic flake, PP plastic scrap, Recycled plastic
Sorting performance
FAQ
1. How to use the machine?
We will supply customer the installation catalog or video online.
2. How about the sample machines for testing?
Sample sending for testing is welcomed.Or you send these three photos, the raw material, good material (which is you want) ,bad material (which is you want to discard).we send our video to you.
3. How about the guarantee period?
One year.
4. Will you accept L/C as payment?
L/C, T/T is OK .
5.Do you have any other spare parts for the customer?
Yes,we will supply you some spare parts .
Why Choose Hons+:
1. Over 10 years experience which focus on sorter machine. One of the most advanced manufacturer in Hefei, Anhui.
2. After-Sales service guarantee: We have a professional after sales service team, one-to-one customer service to help customers install and debug.
3. We have service station over Southeast Asia, co-operate re-seller in more than 50 countries.
4. Quality assurance of raw materials: the raw material we purchase are certified qualified products.
5. Quality process assurance: We have been authorized by CE & ISO quality management system, each process of production are under strictly standard.
6. System test: Our technical engineers check the product performance, even every part is subjected to rigorous aging test to ensure that the factory products would being in full compliance with customer requirements.
7. Shipping guarantee: We have professional packaging operation team, independent export qualification to ensure product safety and stability to reach customers in the hands.
