| Place of Origin: | China |
|---|---|
| Brand Name: | Hons+ |
| Certification: | ISO/SGS/CE |
| Model Number: | S7 |
| Minimum Order Quantity: | 1 set |
| Price: | $13500-$21000 |
| Packaging Details: | Wooden case |
| Delivery Time: | 5-8 worker days |
| Payment Terms: | L/C, D/P, D/A, T/T |
| Supply Ability: | 500sets/month |
| Power（Kw）: | 4.0 | Dimension(L*W*Hmm): | 2836*1595*2040 |
|---|---|---|---|
| Capacity(T/h): | 4.0t-5.0t | Voltage(V): | AC220V/50Hz |
| Weight(Kg): | 1600kg | Applicable Material: | Peanut/Rice/grain |
| Pixels: | 54 Million | Feature: | High Sensitivity |

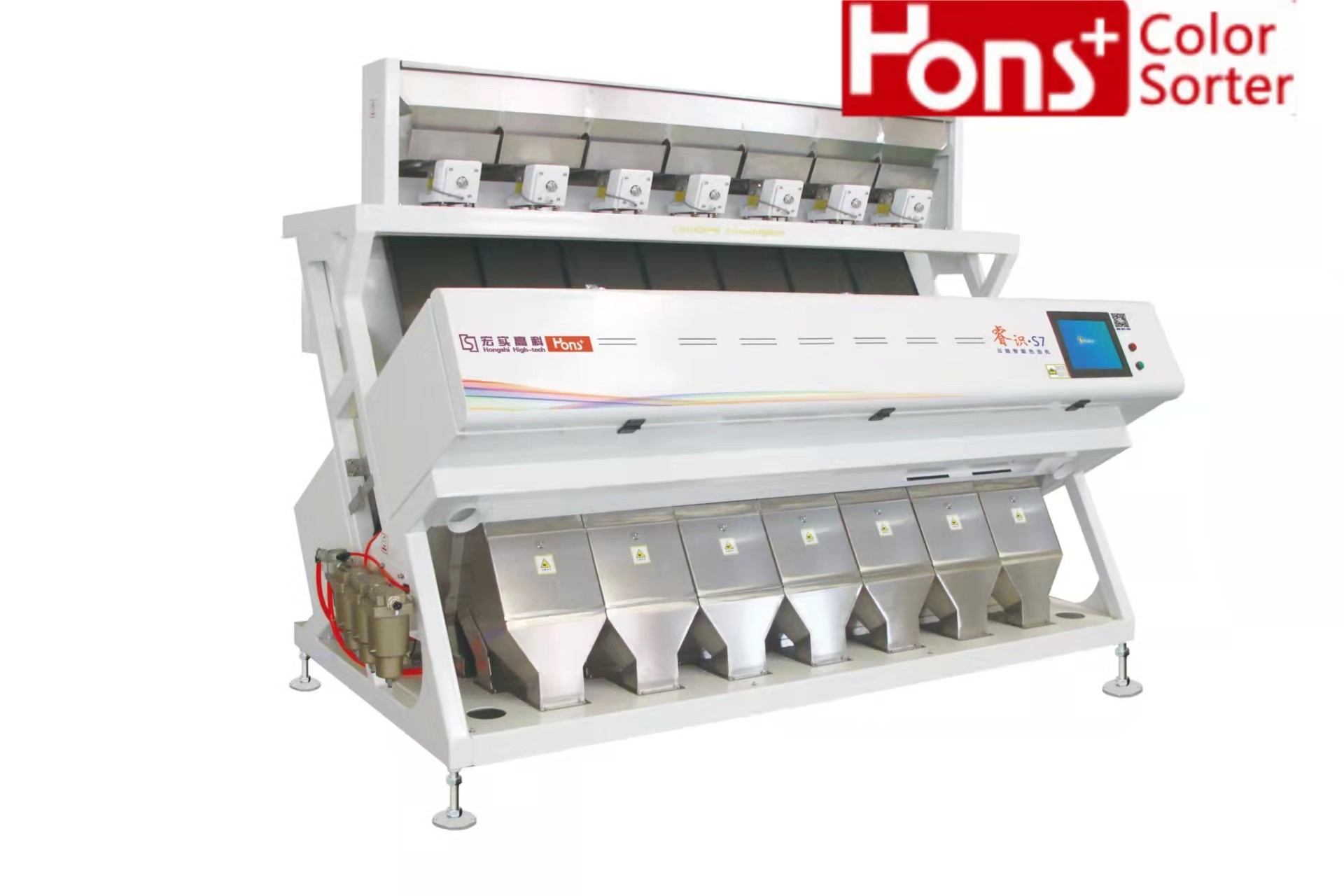

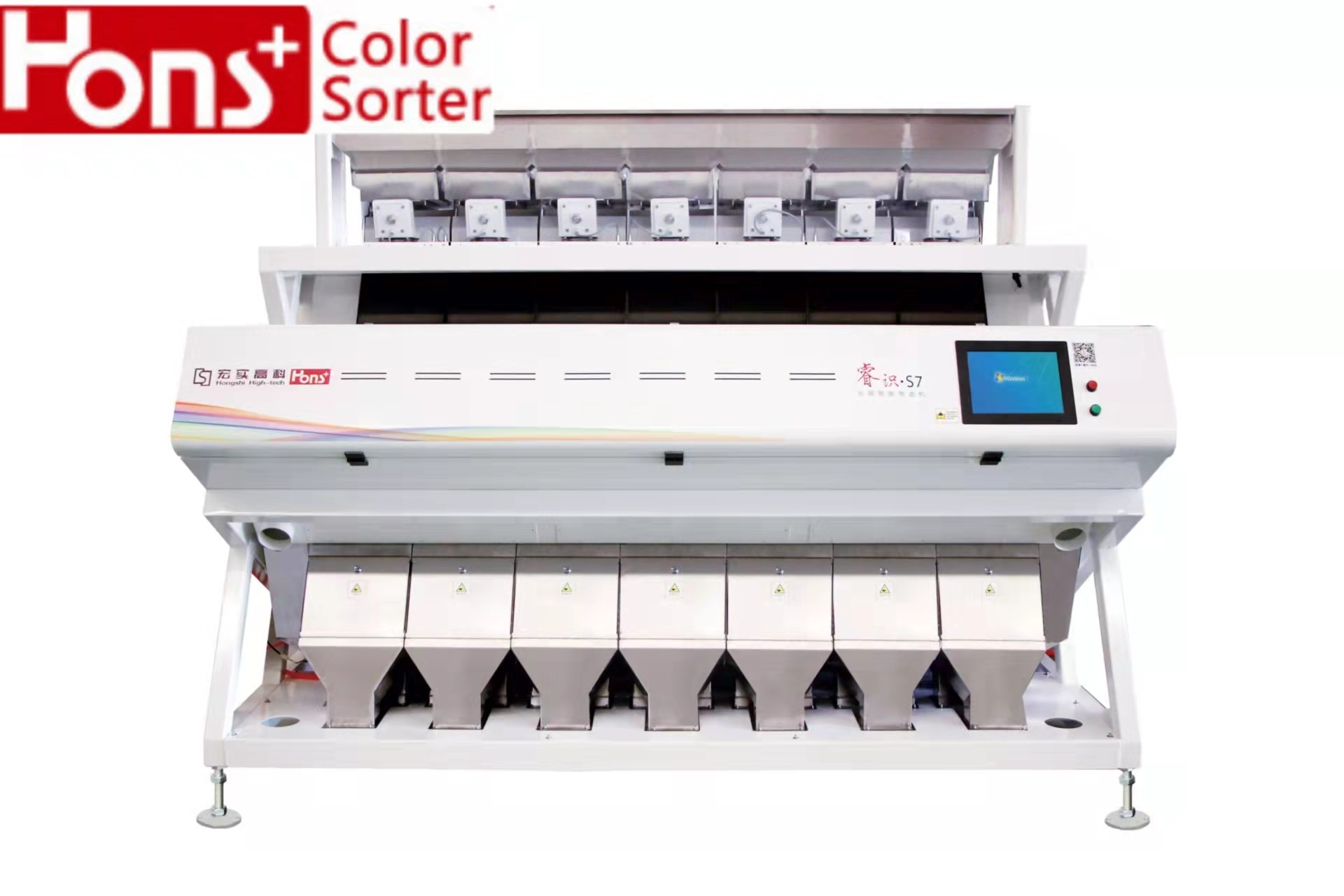

| Product Name: | CCD Color Sorter | ||
| High Light: | CCD Color Sorter Remote Control,Maize Agricultural Production CCD Sorter,Maize Production CCD Color Sorter |
||
Name |
S1 | S2 | S5 | S7 |
| Model | 6SXM-63 | 6SXM-126 | 6SXM-315 | 6SXM-441 |
| Capacity(Kg/H) | 300Kg-400Kg | 300Kg-800Kg | 1200Kg-1600Kg | 1500Kg-2400Kg |
| Voltage(V) | AC220V/50HZ | AC220V/50HZ | AC220V/50HZ | AC220V/50HZ |
| POWER(KW) | <1.5 | <2.0 | <3.0 | <4.0 |
| Weight(KG) | 350Kg | 500Kg | 1250Kg | 1600Kg |
| Dimension(L*W*H/MM) | 910*1620*1550 | 1220*1620*15500 | 2210*1595*2010 | 2836*1595*1850 |
| Air Consumption | 0.9 m³/min | 1.8m³/min | 1.8 m³/min |
3 m³/min |
| Air pressure | 0.6-0.8mpa | 0.6-0.8mpa | 0.6-0.8mpa | 0.6-0.8mpa |
| Air compressor power | 4kw | 5.5Kw | 11kw*2 | 15kw*2 |
| Air tank | 300L | 1000L | 1000L | |
| Cooling Model | wind cooling | wind cooling | wind cooling | wind cooling |
| Mini Resolution( mm²) | 0.03 | 0.03 | 0.03 | 0.03 |
Food materials:
Such as: Rice, Wheat, Corn, Soybean, Peanut, Sunflower seeds, Waltnut, Almond, Quinoa, Salt, Medlar, Pistachio, Kidney bean, Chili, Red bean.
Plastic materials:
Such as: Waste Plastics, Plastic pellet, Plastic pieces, Plastic granule, Plastic bottle cap flake, PET bottle scrap, ABS plastic flake, PP plastic scrap. Recycled plastic, etc.
Mineral materials:
Such as: Quartz stone, Quartz sand, Potassium feldspar, Barite, Calcite, Limestone, Pearl, Marble and others.
Sorting performance
