Type: | HFX-II | Voltage: | AC380V/50HZ |
---|---|---|---|
Power: | <=2.7KW | Size: | L 1980mm * W 900mm * H 2100mm |
Weight: | 218KGS(+/-5%) | ||
High Light: | Chinese Prickly Ash Grading Machine,Vacuum Gravity Grading Machine,2.7KW Vegetable Grading Machine |

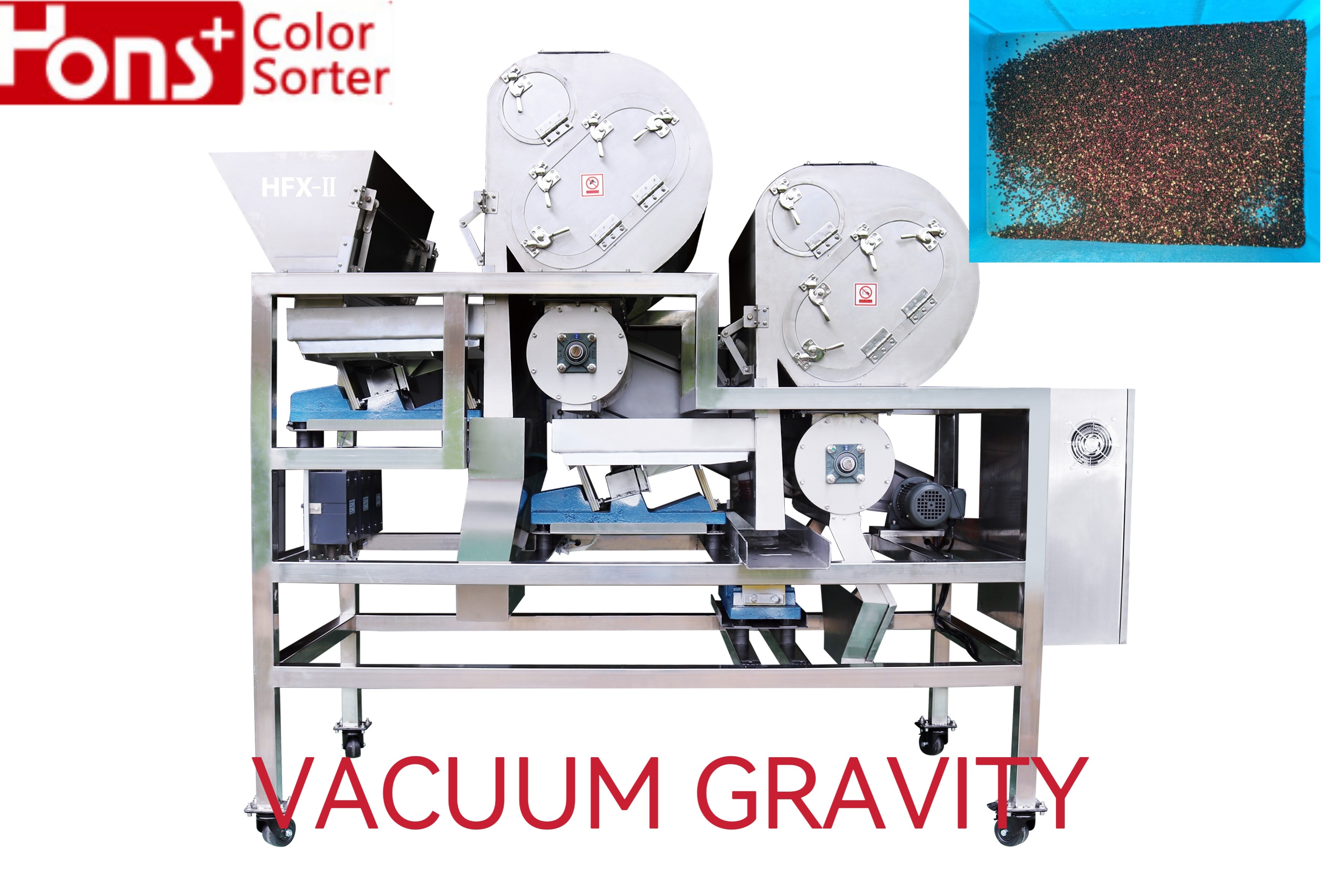

Vegetable Sea Food/Chinese Prickly Ash Vacuum Gravity Grading Machine
Descripton
FX series vacuum negative pressure winnowing machine (vacuum negative pressure gravitational separation equipment) is one of the important products of our company, totally different with color sorter, It is separate different materials by the different weight with same color, which can solve the problem color sorter can not do.
Model And Specification
Name | Voltage | Power | Weight | Size |

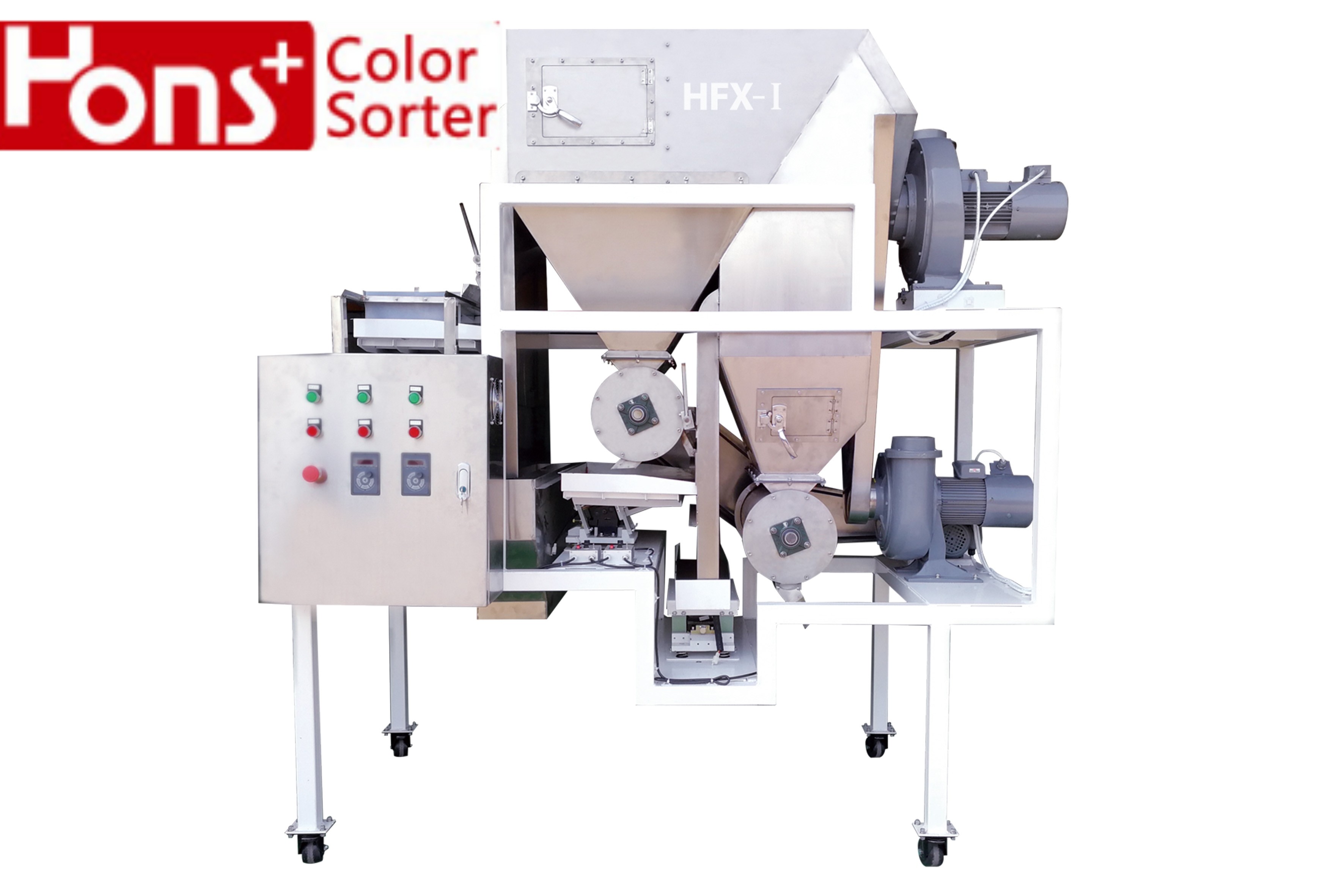

HFX-I | AC380V/50HZ | <3.3KW | 180kgs(+/-5%) | L 1980mm * W 900mm * H 2100mm |
HFX-II | AC380V/50HZ | <2.7KW | 218Kgs(+/-5%) | L 1980mm * W 900mm * H 2100mm |
HFX-III | AC380V/50HZ | <0.75KW | 90Kgs(+/-5%) | L 925mm * W 580mm H 2100mm |
Technical characteristic
1. Intelligent suction, high-speed processing
2. Intelligent air volume, stepless adjustment
3. Energy saving , quiet high power motors.
4. System configuration is simple, high classification accuracy.
5. Mobile convenience, cover and area of an area small.
6. Design of light material collection, reduce the impact of light impurities on the following processing, and effectively solve the dusty problem in the customer site.
Model And Specification
Name | Voltage | Power | Weight | Size |
HFX-I | AC380V/50HZ | <3.3KW | 180kgs(+/-5%) | L 1980mm * W 900mm * H 2100mm |
HFX-II | AC380V/50HZ | <2.7KW | 218Kgs(+/-5%) | L 1980mm * W 900mm * H 2100mm |
HFX-III | AC380V/50HZ | <0.75KW | 90Kgs(+/-5%) | L 925mm * W 580mm H 2100mm |
Usage
It can be used to select various crops seeds (such as seaweed products, traditional Chinese medicine, melon seeds, peanuts and other crops) and agricultural and sideline products by air and specific gravity. It has features that are not available in general air screen cleaner
Machine in customer factory
FAQ
1. How many days for production?
In general,within8-12workers days after getting deposit payment.
2. Are you a trading company or a factory,will it be cheaper to buy from your side?
More than 15 years of professional manufacturing experience, more than 10years exporting experience overseas,more reliable quality,more timely service.
The same quality, more favorable price.
3. Do you provide product installation,training and after-sales service?
Most products can be installed and trained through online video and text mode.If special products need to be installed on site,we will arrange technicians to install and debug on site.
4. We are small buyer , can we buy your products locally , do you have local agents?
If you need to buy locally ,please tell us your region name,we can recommend the most suitable local dealer for you.
