| Place of Origin: | China |
|---|---|
| Brand Name: | Hons+ |
| Certification: | ISO/SGS/CE |
| Model Number: | S7 |
| Minimum Order Quantity: | 1 set |
| Price: | $13500-$23000 |
| Packaging Details: | Wooden case |
| Delivery Time: | 5-8 worker days |
| Payment Terms: | L/C, D/P, D/A, T/T |
| Supply Ability: | 500sets/month |
| Power（Kw）: | 4.0 | Dimension(L*W*Hmm): | 2836*1595*2040 |
|---|---|---|---|
| Capacity(T/h): | 4.0t-5.0t | Voltage(V): | AC220V/50Hz |
| Weight(Kg): | 1600kg | Applicable Material: | Peanut/Rice/grain |
| Pixels: | 54 Million | Feature: | High Sensitivity |

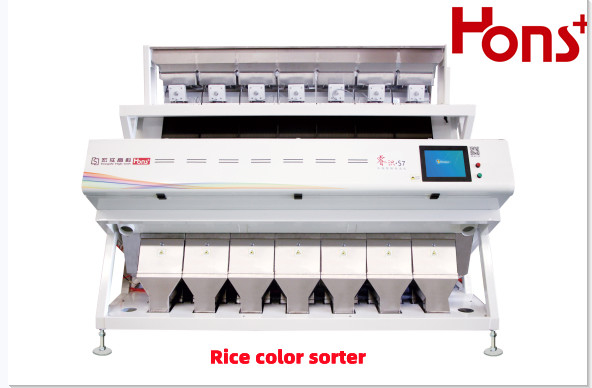

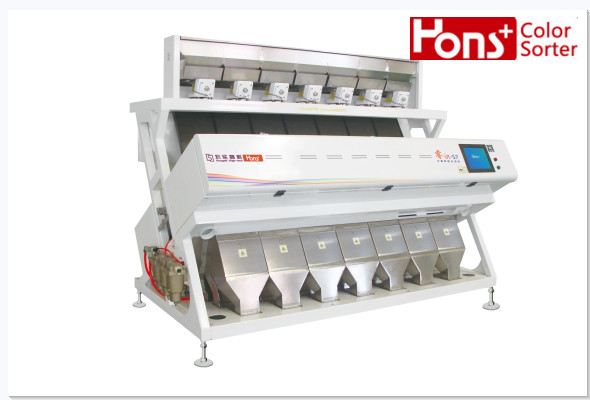

| Product Name: | CCD Color Sorter | ||
| High Light: | 54 Million Pixels Color Sorter,Raisin CCD Color Sorter,Multi Function CCD Color Sorter |
||
1. High speed, resolution ratio CCD camera
High-speed line scan,54 million pixels*3 CCD sensor
2. High speed, resolution ratio Nikon CCD camera
Super clear imaging, resolution ratio, color reduction well, no distortion.
3. High luminance LEDresource
High luminance,low power consumption,long life,reliable.Intelligent control optical system
Intelligent LED shadow-less cold light source with industry-leding digital step-lesslight adjustment technology can select the best lighting brightness and color according to selection requirements to get more accurate identificaton, lower energy consumption(15%~20% lower than other competitors) and high stability.
4. High frequency solenoid valve
Special color sorting, high frequency, low power consumption,high sorting accuracy.Independently developed intelligent magnetic control high frequency solenoid valve for color sorter.Immediately response speed for valves opening insure sorting accuracy; quickly response speed for valves closing reduces the carry out ratio.Flexible contact og the valve plate makes service life of the valves extend to 60~100million times,10~30billion time more compared with other competitors.
Name |
S1 | S2 | S5 | S7 |
| Model | 6SXM-63 | 6SXM-126 | 6SXM-315 | 6SXM-441 |
| Capacity(Kg/H) | 300Kg-400Kg | 300Kg-800Kg | 1200Kg-1600Kg | 1500Kg-2400Kg |
| Voltage(V) | AC220V/50HZ | AC220V/50HZ | AC220V/50HZ | AC220V/50HZ |
| POWER(KW) | <1.5 | <2.0 | <3.0 | <4.0 |
| Weight(KG) | 350Kg | 500Kg | 1250Kg | 1600Kg |
| Dimension(L*W*H/MM) | 910*1620*1550 | 1220*1620*15500 | 2210*1595*2010 | 2836*1595*1850 |
| Air Consumption | 0.9 m³/min | 1.8m³/min | 1.8 m³/min |
3 m³/min |
| Air pressure | 0.6-0.8mpa | 0.6-0.8mpa | 0.6-0.8mpa | 0.6-0.8mpa |
| Air compressor power | 4kw | 5.5Kw | 11kw*2 | 15kw*2 |
| Air tank | 300L | 1000L | 1000L | |
| Cooling Model | wind cooling | wind cooling | wind cooling | wind cooling |
| Mini Resolution( mm²) | 0.03 | 0.03 | 0.03 | 0.03 |
Food materials:
Such as: Rice, Wheat, Corn, Soybean, Peanut, Sunflower seeds, Waltnut, Almond, Quinoa, Salt, Medlar, Pistachio, Kidney bean, Chili, Red bean.
Plastic materials:
Such as: Waste Plastics, Plastic pellet, Plastic pieces, Plastic granule, Plastic bottle cap flake, PET bottle scrap, ABS plastic flake, PP plastic scrap. Recycled plastic, etc.
Mineral materials:
Such as: Quartz stone, Quartz sand, Potassium feldspar, Barite, Calcite, Limestone, Pearl, Marble and others.
Sorting performance
FAQ
1. How about engineers service oversea?
Engineers available to service machinery overseas.
2. How to use the machine?
We will supply customer the installation catalog or video online.
3. How about the sample machines for testing?
Sample sending for testing is welcomed.Or you send these three photos, the raw material, good material (which is you want) ,bad material (which is you want to discard).we send our video to you.
4. How about the guarantee period?
One year.
5.Do you have any other spare parts for the customer?
Yes,we will supply you some spare parts .
